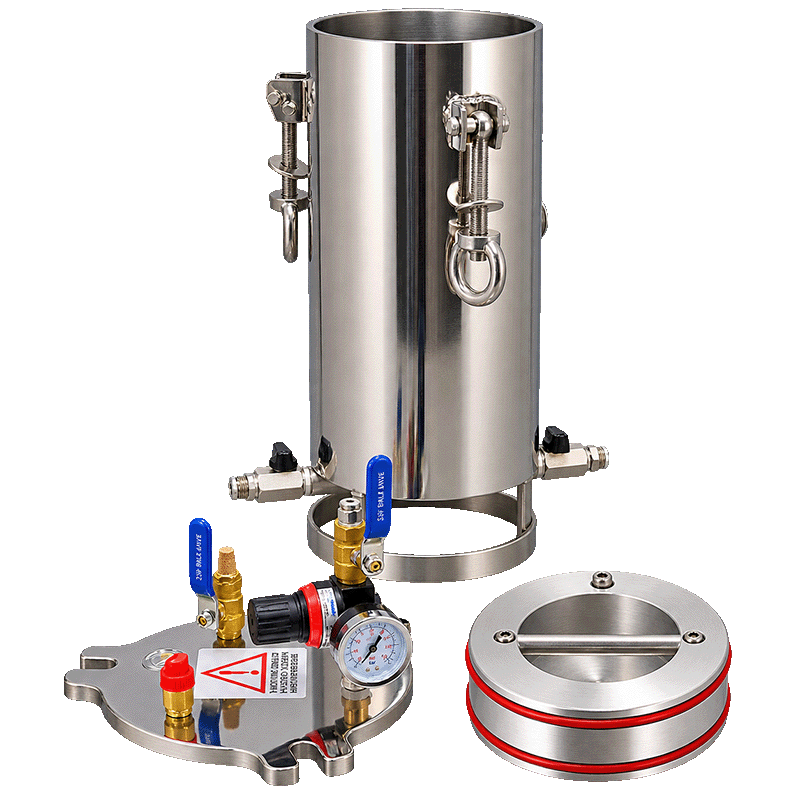

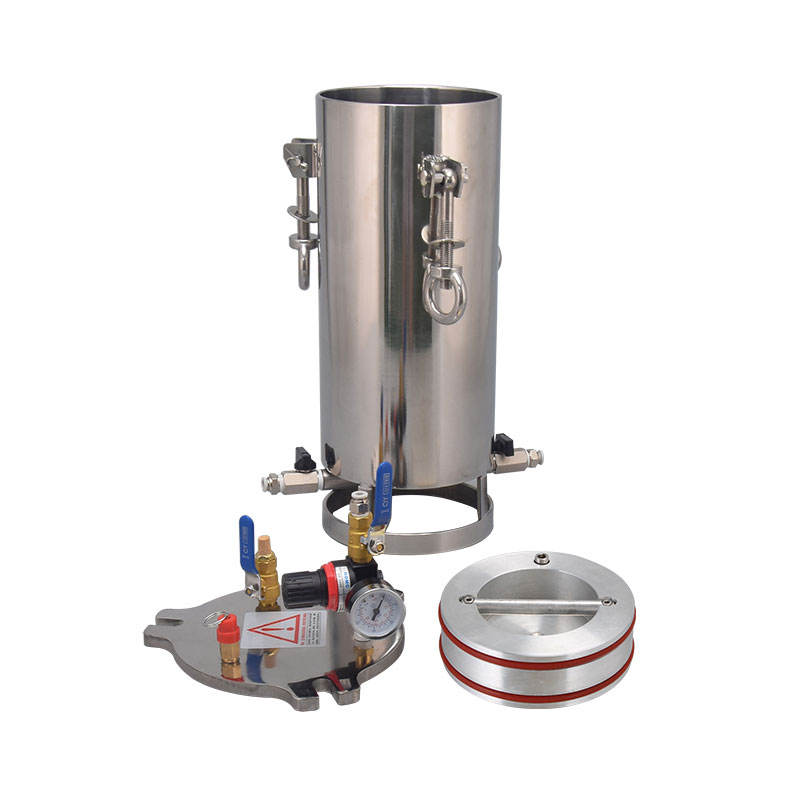

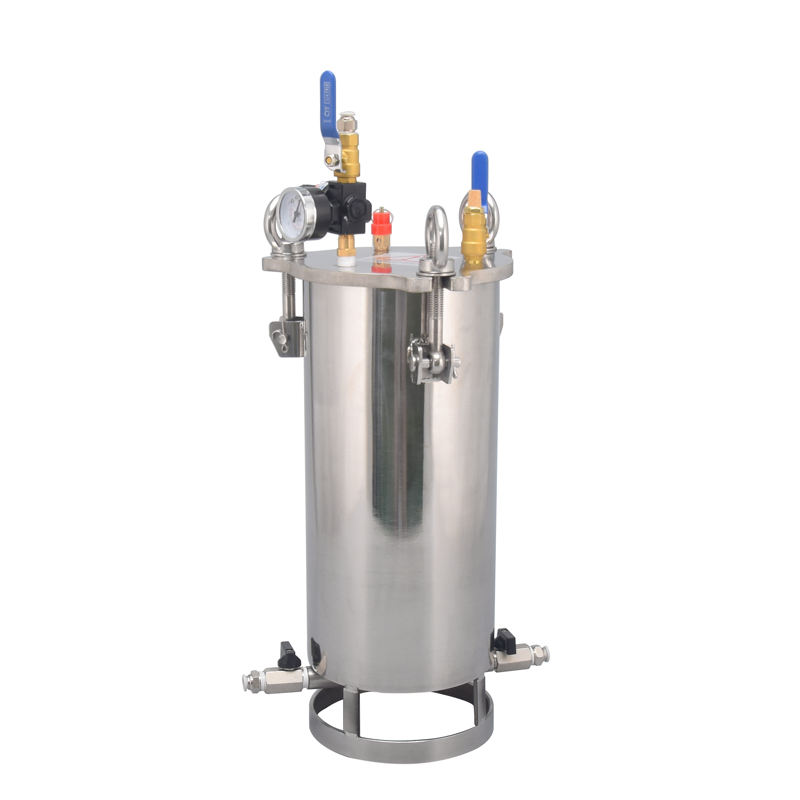

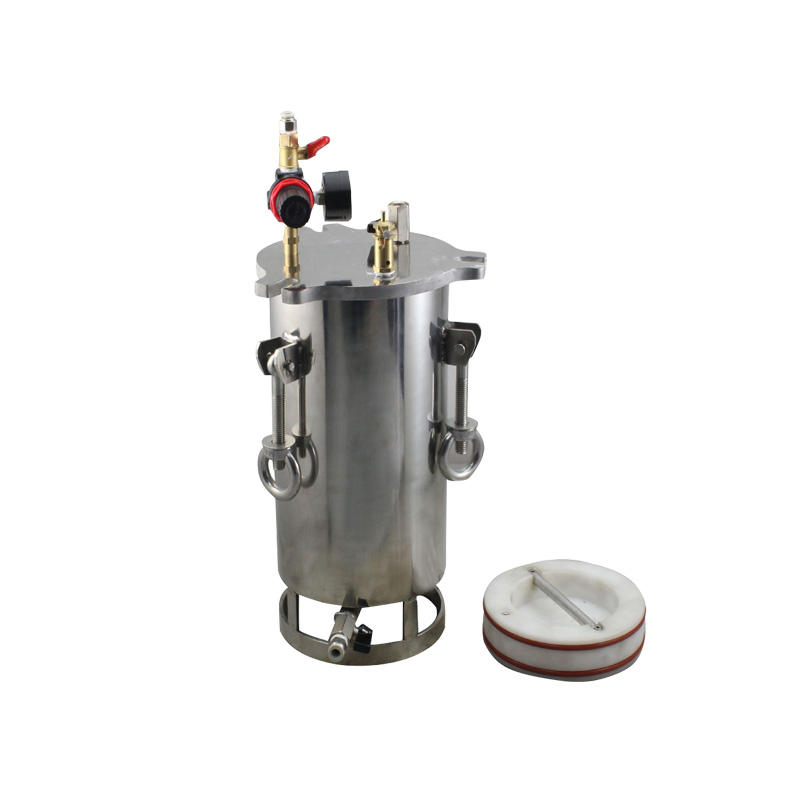

1L Factory Direct 304 Stainless Steel Pressure Vessel Tank Aluminum Piston 0.8MPa Design Pressure Long Service Life -20C
Product Specifications
Key Attributes
| Design Pressure (MPa) | 0.8 MPa |
| Design Standard | 0.8 MPa |
| Type | Pressure Tank |
| Inner Material | 304 Stainless Steel |
| Outer Material | 304 Stainless Steel |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Warranty | 1 Year |
| Key Selling Points | Long Service Life |
| Core Components | Stainless Steel Barrel Body, Stainless Steel Barrel Lid, Pneumatic Agitator |
| Volume (m³) | 0.001 |
| Working Temperature | -20 – 180 ℃ |
| Place of Origin | Guangdong, China |
| Weight | 10 KG |
| Brand Name | Yakoo | Customize |
| Dimension (L × W × H) | 108 × 108 × 170 mm |
Product Details

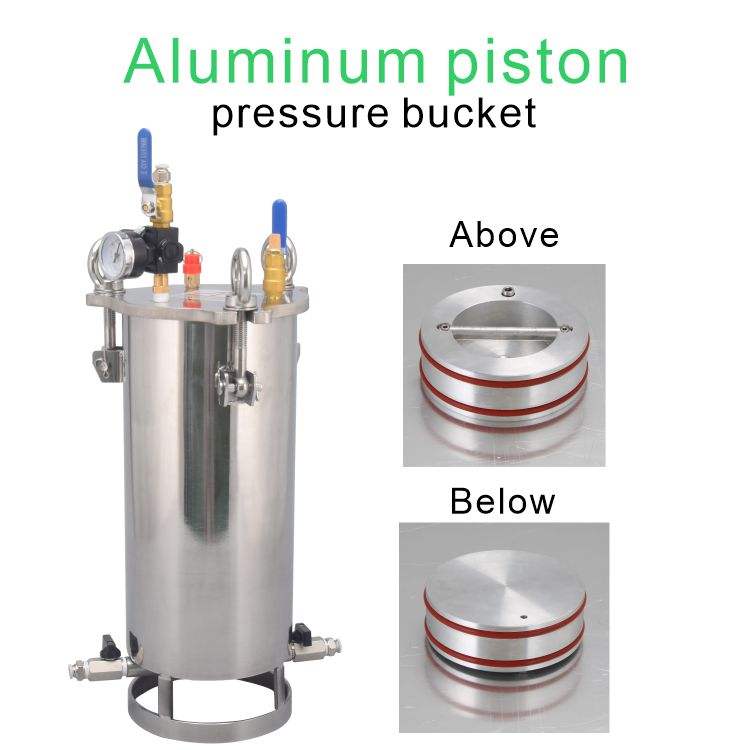

| Product Name | Pressure Vessels with Aluminum Pistons |
| Volume | 1 L |
| Material | 304 Stainless Steel |
| Max Working Pressure | 0.8 MPa |
| Outer Barrel Height | 170 mm |
| Inner Barrel Height | 160 mm |
| Outer Diameter of Barrel Body | 108 mm |
| Inner Diameter of Barrel Body | 100 mm |
| Barrel Thickness | 4 mm |
| Barrel Lid Thickness | 12 mm |
Packaging and Delivery
| Selling Units | Single Item |
| Single Package Size | 21 × 21 × 27 cm |
| Single Gross Weight | 10.0 KG |
