8L 90W Transparent Pressure Vessel Visual Monitoring of Inside Processes Enabled
Product Specifications
Key Attributes
| Design Pressure (MPa) | 0.5 MPa |
| Design Standard | 0.5 MPa |
| Type | Pressure Tank |
| Inner Material | 304 Stainless Steel |
| Outer Material | 304 Stainless Steel |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Warranty | 1 Year |
| Key Selling Points | Long Service Life |

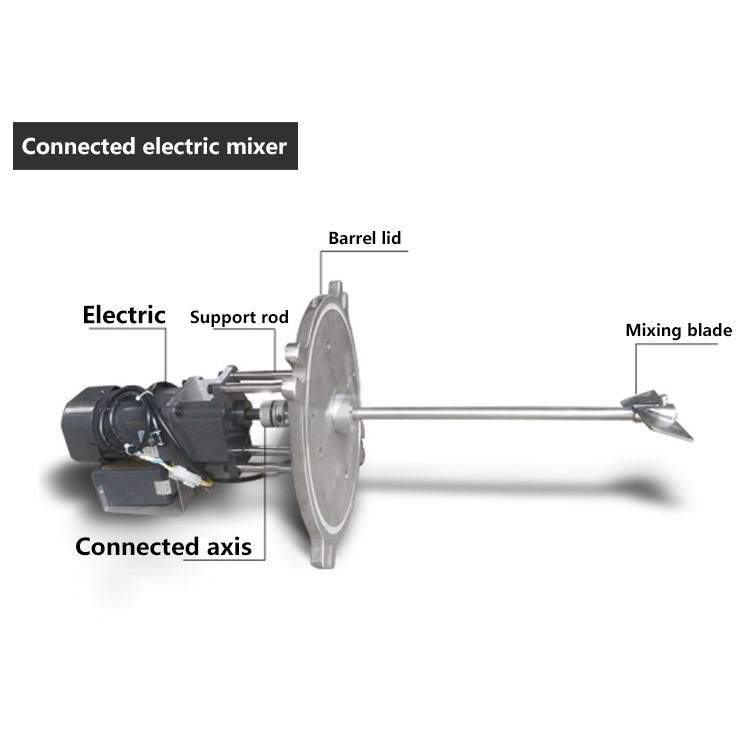

| Core Components | Stainless Steel Barrel Body, Stainless Steel Barrel Lid, Pneumatic Agitator |
| Volume (m³) | 0.008 |
| Working Temperature | -20 – 180 ℃ |
| Place of Origin | Guangdong, China |
| Weight | 24 KG |
| Brand Name | Yakoo | Customize |
| Dimension (L × W × H) | 219 × 219 × 580 mm |

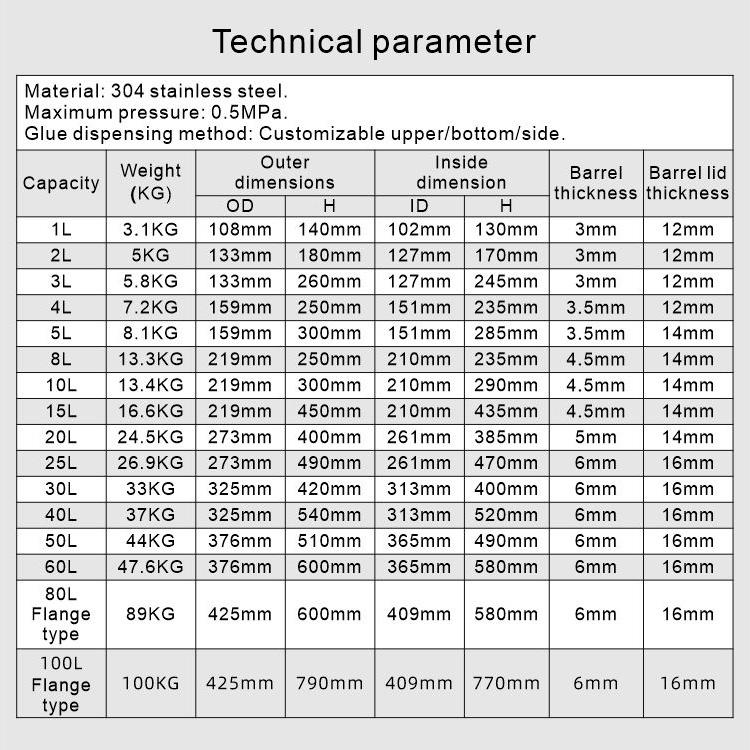

Product Details
| Material | 304 Stainless Steel |
| Volume | 8 L |
| Power | 90 W |
| Max Working Pressure | 0.5 MPa |

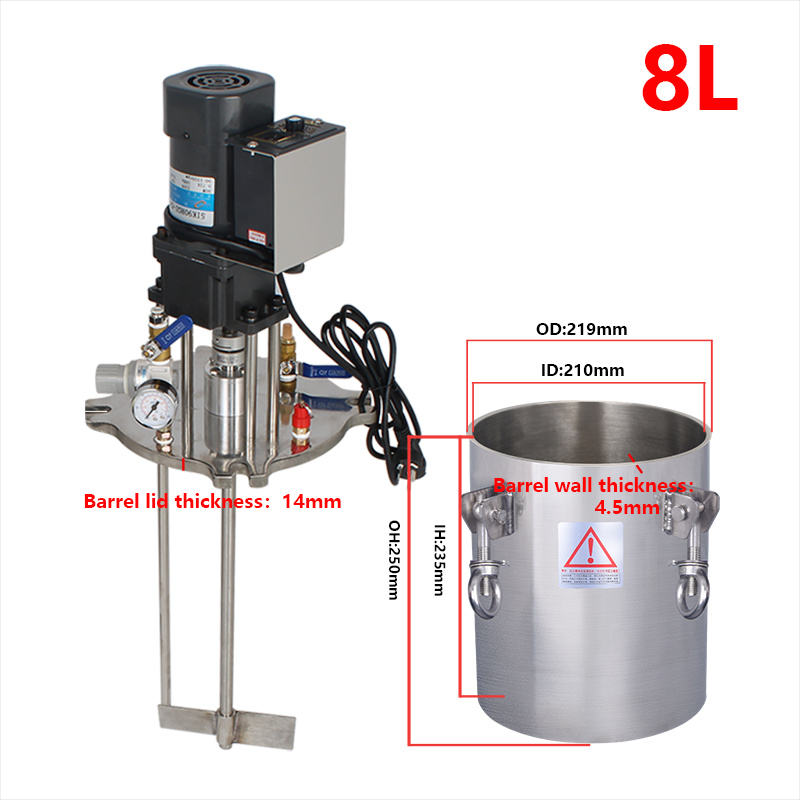

| Outer Barrel Height | 250 mm |
| Inner Barrel Height | 235 mm |
| Outer Diameter of Barrel Body | 219 mm |
| Inner Diameter of Barrel Body | 210 mm |
| Barrel Thickness | 4.5 mm |
| Barrel Lid Thickness | 14 mm |
Packaging and Delivery
| Selling Units | Single Item |
| Single Package Size | 39 × 39 × 76 cm |
| Single Gross Weight | 24.0 KG |
