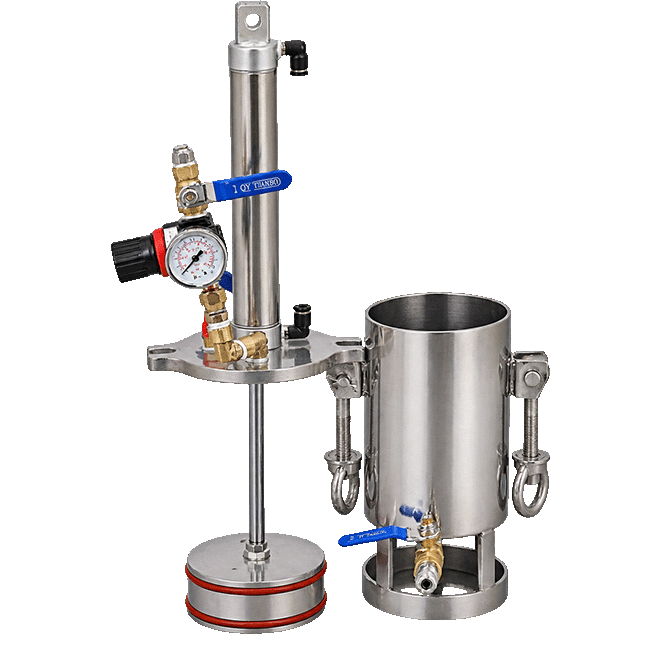

5L Industrial 304 Stainless Steel Pressure Vessel Shell with Piston and Cylinder Durable Shell Material
Product Specifications
| Design Pressure (mpa) | 0.8MPa |
| Design Standard | 0.8MPa |
| Type | Pressure Tank |
| Inner Material | 304 Stainless Steel |
| Outer Material | 304 Stainless Steel |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Warranty | 1 Year |
| Key Selling Points | Long Service Life |

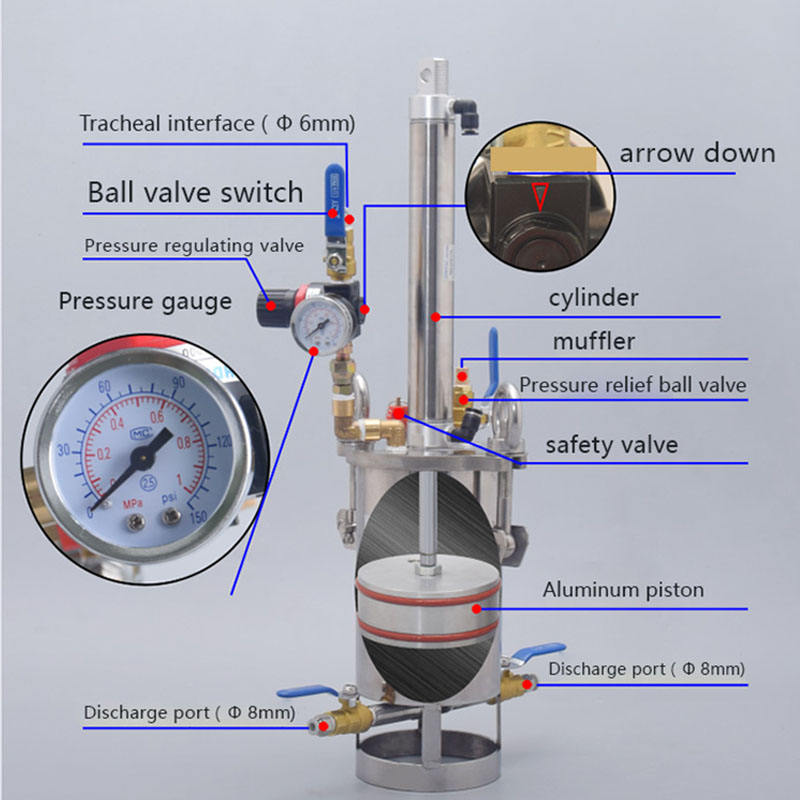

| Core Components | Stainless Steel Barrel Body, Stainless Steel Barrel Lid, Pneumatic Agitator |
| Volume (m³) | 0.005 |
| Working Temperature (℃) | -20 – 180 ℃ |
| Place of Origin | Guangdong, China |
| Weight (KG) | 15 |
| Brand Name | Yakoo | Customize |
| Dimension (L*W*H) | 159x159x330(mm) |
| Product Name | Electric Mixing Pressure Drum |
| Material | 304 Stainless Steel |
| Volume (L) | 5L |
| Max Working Pressure(MPa) | 0.8MPa |
| Cylinder Specifications | 32sx250 |
| Material of Piston | Aluminium |
| Outer Barrel Height | 330mm |
| Inner Barrel Height | 275mm |
| Barrel Thickness | 4mm |
| Barrel Lid Thickness | 12mm |
Packaging and Delivery
| Selling Units | Single Item |
| Single Package Size | 26X26X43 cm |
| Single Gross Weight | 15.0 kg |
