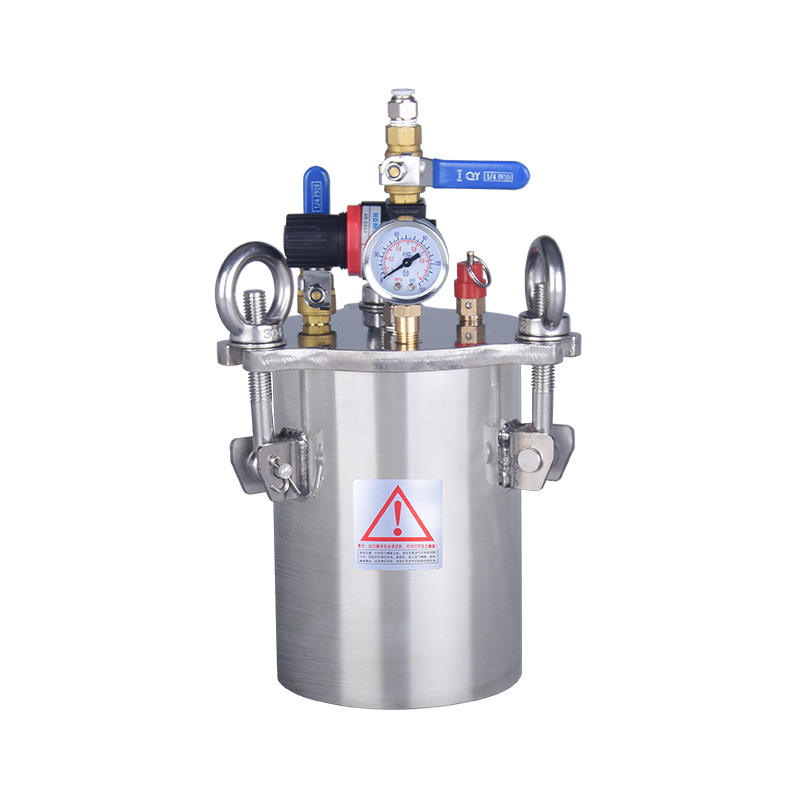

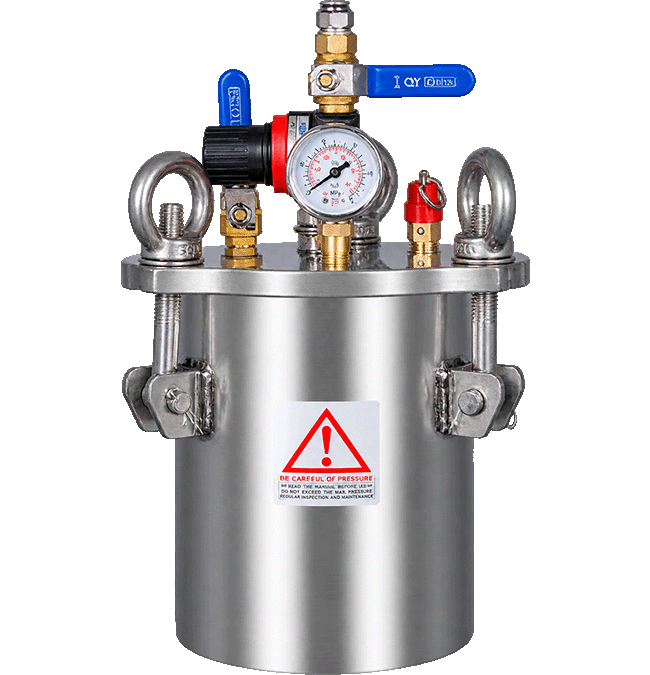

2L Pressure Tank for Fluid Storage for Vessels & Containers
Pressure Vessel
Key Attributes
| Design Pressure (mpa) | 0.5MPa |
| design standard | 0.5MPa |
| Type | pressure tank |
| inner material | 304 Stainless steel |
| outer material | 304 Stainless steel |
| machinery test report | Provided |
| video outgoing-inspection | Provided |
| warranty | 1 Year |
| key selling points | Long Service Life |
| core components | Stainless steel barrel body, Stainless steel barrel lid |
| volume (m³) | 0.002 |
| working temperature(℃) | -20 – 180 ℃ |
| place of origin | Guangdong, China |
| Weight (KG) | 6 |
| brand name | yakoo |
| dimension(l*w*h) | 133x133x180(mm) |
Product Details

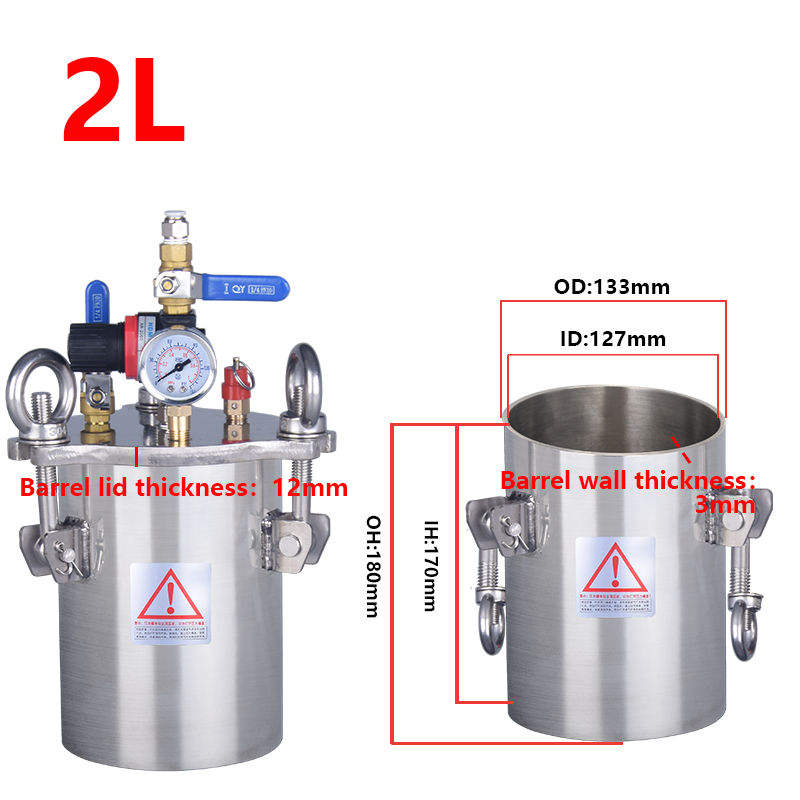

| Product name | Pressure Vessel |
| Material | 304 Stainless steel |
| Volume (L) | 2L |
| Max Working Pressure(MPa) | 0.5MPa |
| Outer barrel height | 180mm |
| Inner barrel height | 170mm |
| Outer diameter of barrel body | 133mm |
| Inner diameter of barrel body | 127mm |
| Barrel thickness | 3mm |
| Barrel lid thickness | 12mm |
Packaging and Delivery
| Selling Units | Single item |
| Single package size | 20X20X27 cm |
| Single gross weight | 6.0 kg |
