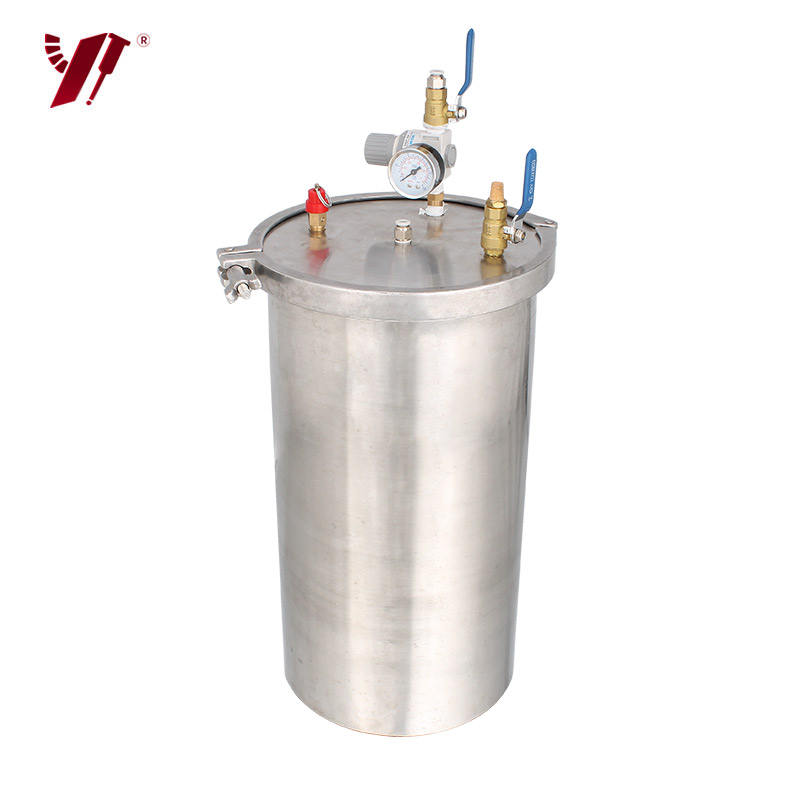

Customize 4L 304 Stainless Steel Pressure Tank Clamp 0.3MPa Long Service Life 1 Year Warranty Certified Working Temp -20-180
Pressure vessels with clamps
Key Attributes
| Design Pressure (mpa) | 0.3MPa |
| design standard | 0.3MPa |
| Type | pressure tank |
| inner material | 304 Stainless steel |
| outer material | 304 Stainless steel |
| machinery test report | Provided |
| video outgoing-inspection | Provided |
| warranty | 1 Year |
| key selling points | Long Service Life |
| core components | Stainless steel barrel body, Stainless steel barrel lid |
| volume (m³) | 0.004 |
| working temperature(℃) | -20 – 180 ℃ |
| place of origin | Guangdong, China |
| Weight (KG) | 10 |
| brand name | Yakoo | Customize |
| dimension(l*w*h) | 159*159*280mm |
Product Details
| Product name | Pressure vessels with clamps |
| Material | 304 Stainless steel |
| Volume (L) | 4L |
| Max Working Pressure(MPa) | 0.3MPa |

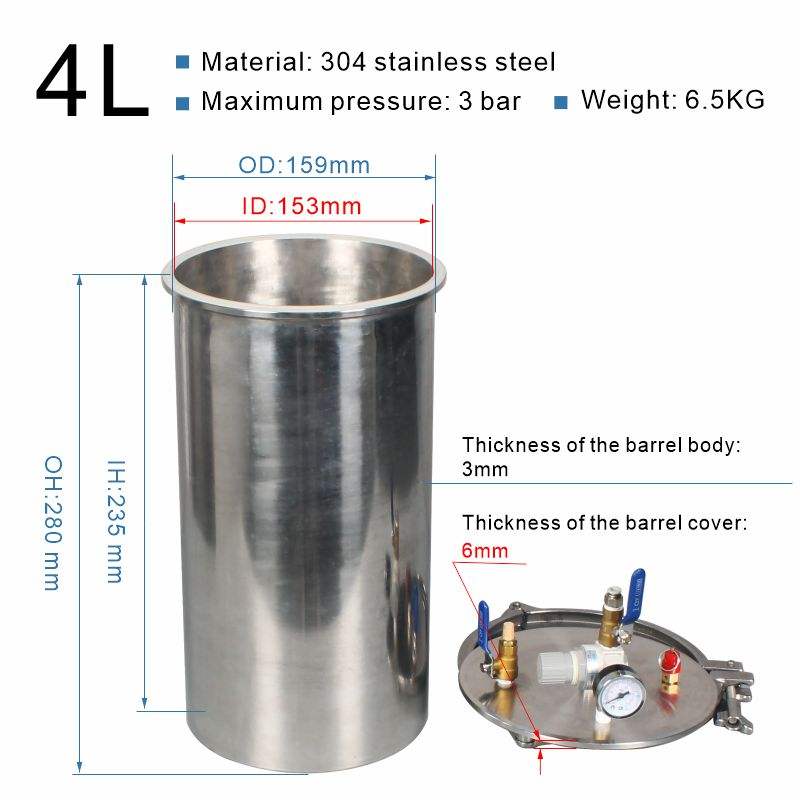

| Outer barrel height | 280mm |
| Inner barrel height | 235mm |
| Outer diameter of barrel body | 159mm |
| Inner diameter of barrel body | 153mm |
| Barrel thickness | 3.5mm |
| Barrel lid thickness | 6mm |
Packaging and Delivery
| Selling Units | Single item |
| Single package size | 26X26X38 cm |
| Single gross weight | 10.0 kg |
