Factory Direct Yakoo | Customize 100L 304 Stainless Steel Flange Electric Mixer Pressure Vessels 0.5MPa Design Pressure -20

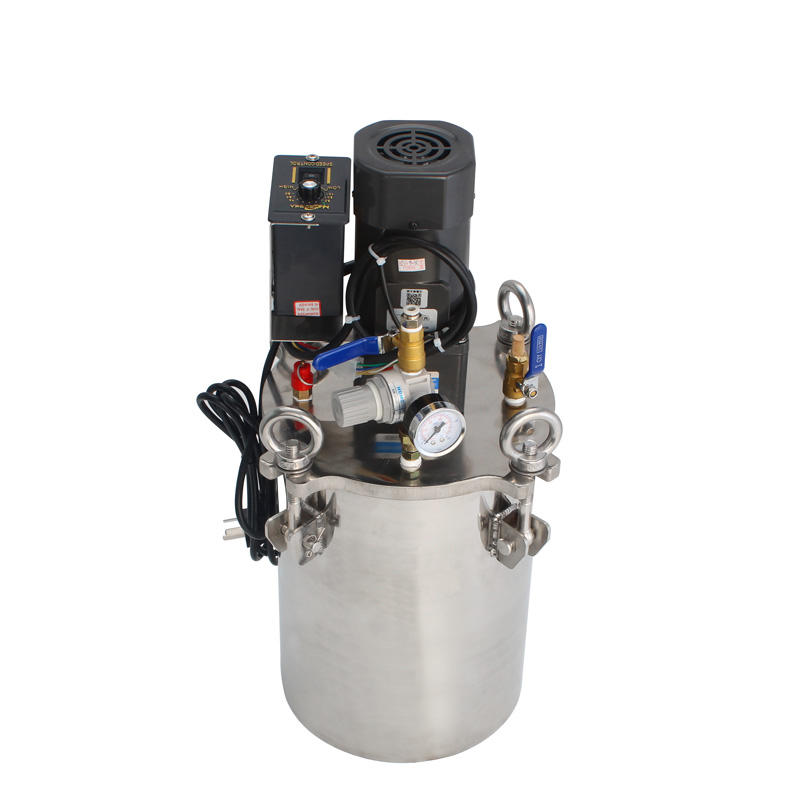

Electric mixing pressure drum
Key Attributes
| Design Pressure (mpa) | 0.5MPa |
| design standard | 0.5MPa |
| Type | pressure tank |
| inner material | 304 Stainless steel |
| outer material | 304 Stainless steel |
| machinery test report | Provided |
| video outgoing-inspection | Provided |
| warranty | 1 Year |
| key selling points | Long Service Life |
| core components | Stainless steel barrel body, Stainless steel barrel lid, Pneumatic agitator |
| volume (m³) | 0.1 |
| working temperature(℃) | -20 – 180 ℃ |
| place of origin | Guangdong, China |
| Weight (KG) | 109 |
| brand name | Yakoo | Customize |
| dimension(l*w*h) | 425*425*1120(mm) |
Product Details
| Product name | Electric mixing pressure drum |
| Material | 304 Stainless steel |
| Volume (L) | 100L |
| Max Working Pressure(MPa) | 0.5MPa |
| Outer barrel height | 790mm |
| Inner barrel height | 770mm |
| Outer diameter of barrel body | 425mm |
| Inner diameter of barrel body | 409mm |
| Barrel thickness | 6mm |
| Barrel lid thickness | 16mm |
Packaging and Delivery
| Selling Units | Single item |
| Single package size | 48X48X113 cm |
| Single gross weight | 109.0 kg |
