Stainless Steel Air Hopper Spray Gun for Texture Paints
This stainless steel air hopper spray gun is designed for pressure feed application of plastic texture paints and decorative coatings on metal and plastic surfaces. It supports a range of nozzle diameters and tank capacities to match different production requirements.
Key Specifications
| Attribute | Value |
|---|---|
| Feed Type | Pressure Feed |
| Nozzle Diameter | 1.0, 1.3, 1.5, 1.8, 2.0, 2.5, 2.8 mm |
| Paint Output | 950 ml/min |
| Air Consumption | 360 l/min |
| Flow Rate | 0.5, 1.0, 1.5 L/min |
| Effective Spray Distance | 150–300 mm |
| Spray Fan Diameter | 50–80 mm (2.0–3.1 in) |

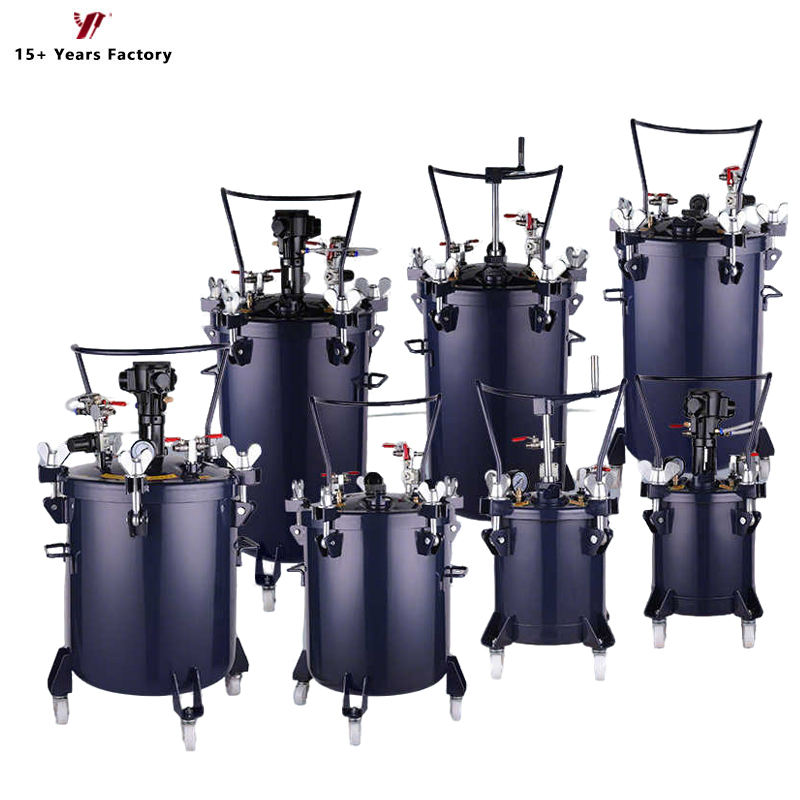

| Tank Capacity | 10, 20, 30, 40, 60 L |
| Material | Stainless Steel |
| Air Fitting Size | Φ10 mm |
| Customized Support | OEM, ODM |
| Warranty | 1 Year |
| No-load Speed | 1500–2600 r/min |
| Model Number | 10L-60L |
Applications
The gun is suitable for electronics manufacturing and other industrial finishing tasks where pressure feed delivery of texture paints is required. It can handle plastic texture paints and decorative coatings on metal and plastic substrates.
Selection Guidance
Choose the nozzle size based on the paint viscosity and desired finish. For fine detail work, smaller nozzles (1.0–1.3 mm) are appropriate; for heavier texture coats, larger nozzles (2.0–2.8 mm) may be used. Tank capacity should match batch size: 10 L for small runs, up to 60 L for continuous production.
Maintenance
Clean the gun and nozzle after each use to prevent paint buildup. Inspect seals and air fittings regularly. Store in a dry environment. The stainless steel construction resists corrosion and simplifies cleaning.

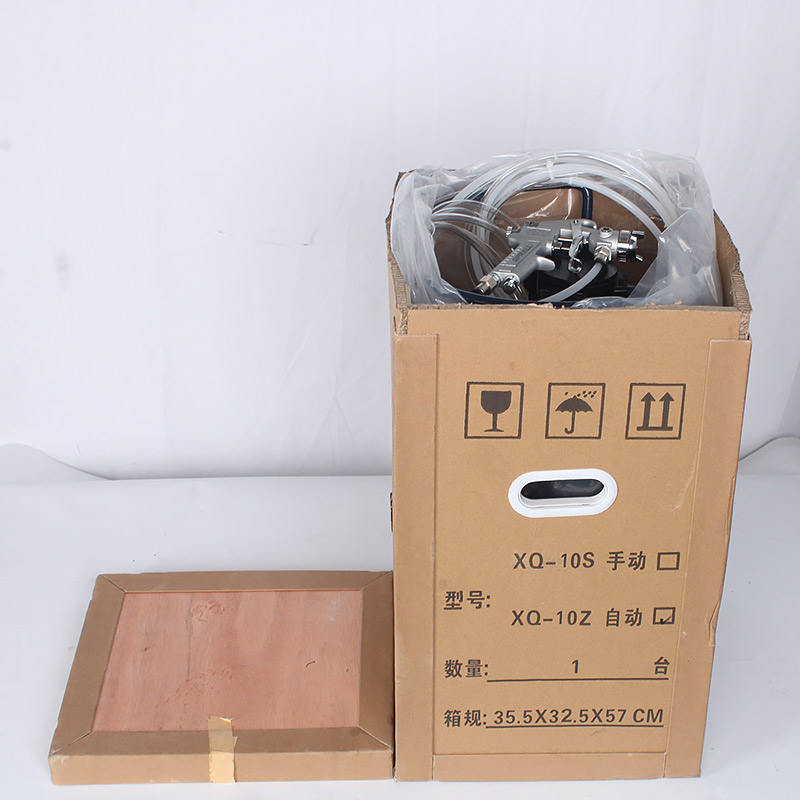

Packaging and Delivery
- Selling unit: single item
- Package size: 38.0 × 34.0 × 58.0 cm
- Gross weight: 20.0 kg
Frequently Asked Questions
What nozzle sizes are available?
Nozzle diameters include 1.0, 1.3, 1.5, 1.8, 2.0, 2.5, and 2.8 mm.
Can this spray gun be customized?
Yes, OEM and ODM support is available.
What is the warranty period?
The gun comes with a 1-year warranty.
What tank capacities are offered?
Tanks are available in 10, 20, 30, 40, and 60 liter capacities.
What air consumption does the gun require?
Air consumption is 360 liters per minute.
