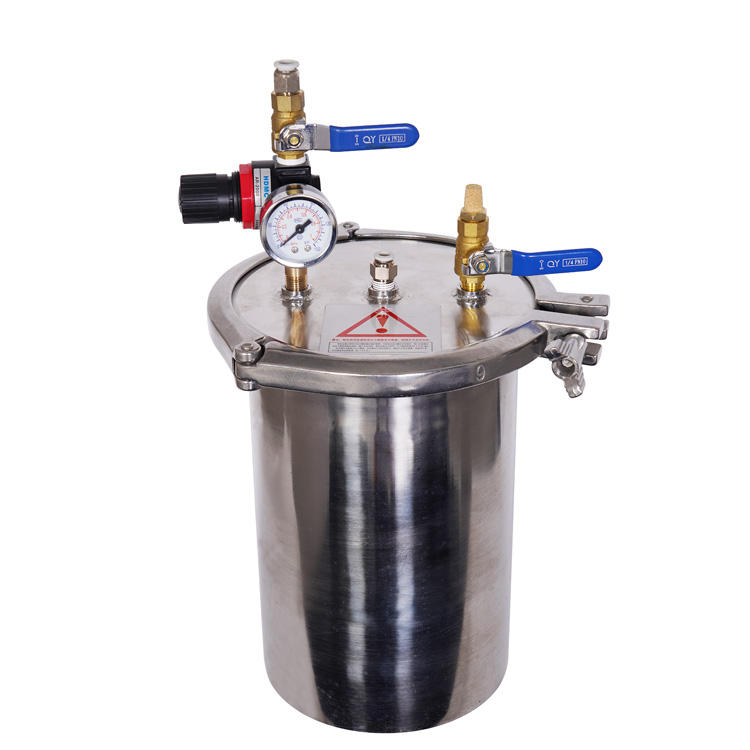

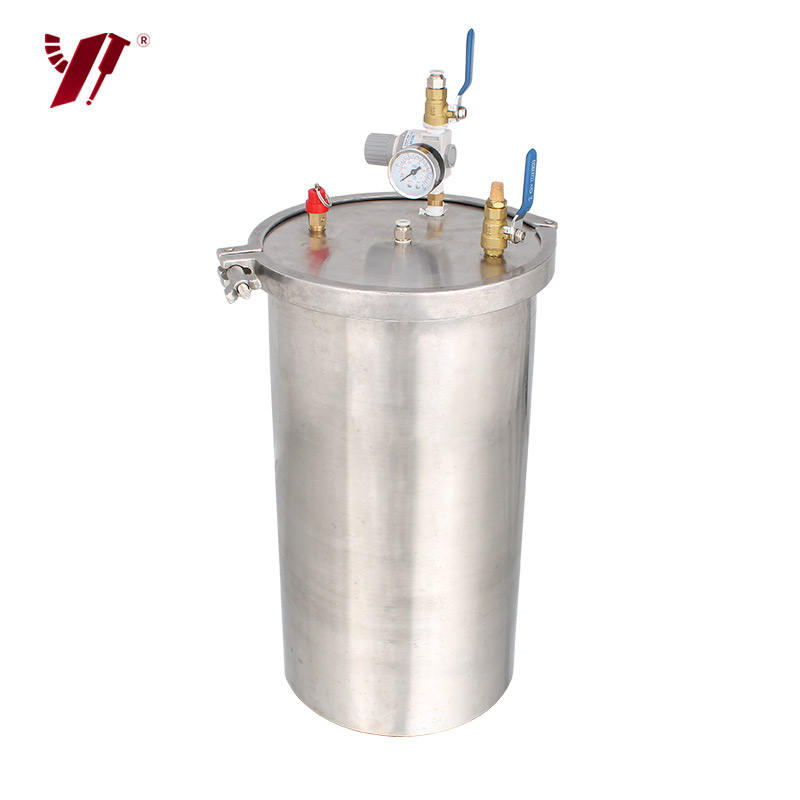

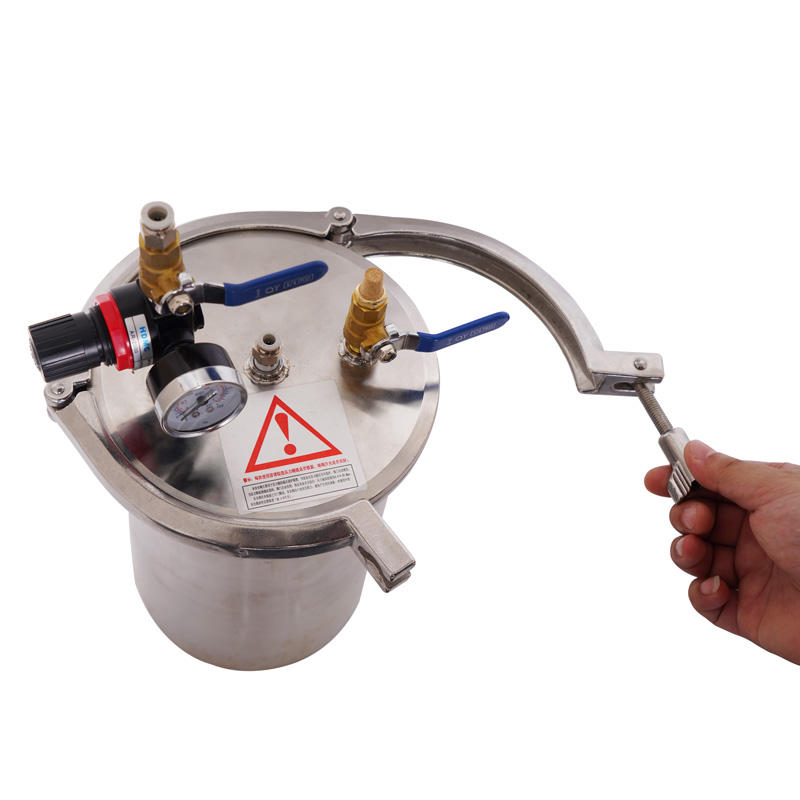

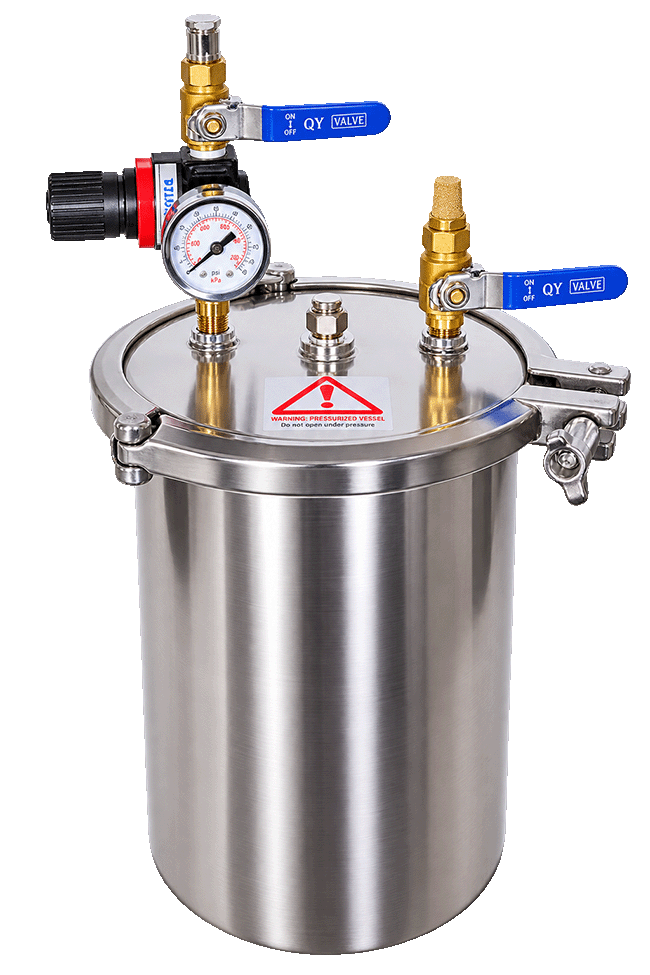

8L Controlled Pressure Reaction Vessel Engineered to Facilitate Reactions Under Preset Conditions
Pressure Vessels With Clamps
Key Attributes
| Design Pressure (MPa) | 0.3MPa |
| Design Standard | 0.3MPa |
| Type | Pressure Tank |
| Inner Material | 304 Stainless Steel |
| Outer Material | 304 Stainless Steel |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Warranty | 1 Year |
| Key Selling Points | Long Service Life |
| Core Components | Stainless Steel Barrel Body, Stainless Steel Barrel Lid |
| Volume (m³) | 0.008 |
| Working Temperature (℃) | -20 – 180℃ |
| Place of Origin | Guangdong, China |
| Weight (KG) | 15 |
| Brand Name | Yakoo | Customize |
| Dimension (L×W×H) | 219×219×250mm |
Product Information
| Product Name | Pressure Vessels With Clamps |
| Material | 304 Stainless Steel |
| Volume (L) | 8L |
| Max Working Pressure (MPa) | 0.3MPa |
| Outer Barrel Height | 250mm |
| Inner Barrel Height | 235mm |
| Outer Diameter Of Barrel Body | 219mm |
| Inner Diameter Of Barrel Body | 213mm |
| Barrel Thickness | 4.5mm |
| Barrel Lid Thickness | 6mm |
Packaging And Delivery
| Selling Units | Single Item |
| Single Package Size | 32×32×35 cm |
| Single Gross Weight | 15.0 kg |
