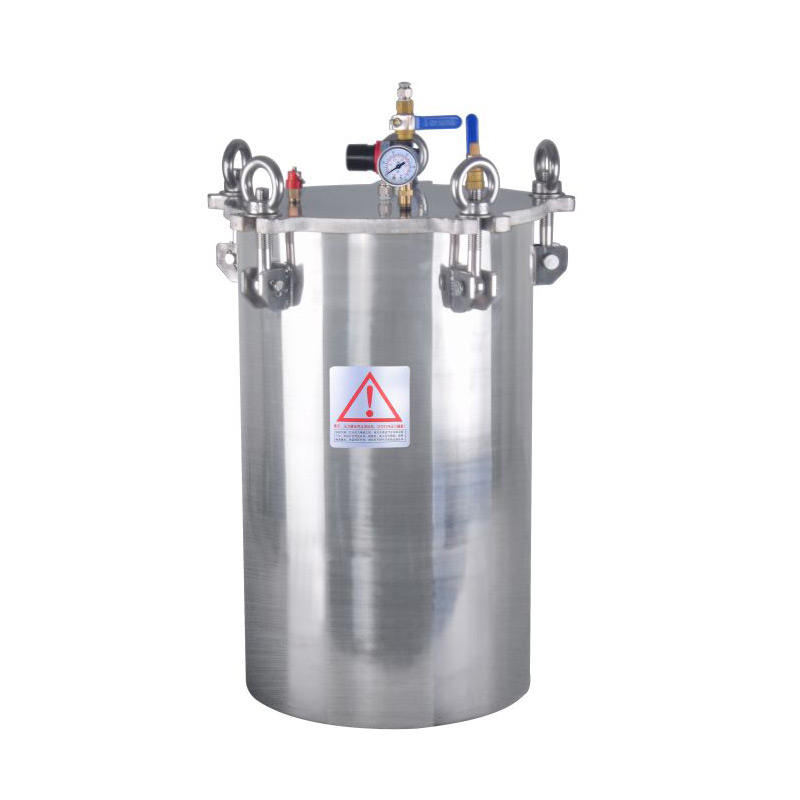

Industrial 304 Stainless Steel Pressure Vessels 40L Capacity for Spraying Machine
Pressure Tank
Key Attributes
| Design Pressure (MPa) | 0.5MPa |
| Design Standard | 0.5MPa |
| Type | Pressure Tank |
| Inner Material | 304 Stainless Steel |
| Outer Material | 304 Stainless Steel |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Warranty | 1 Year |
| Key Selling Points | Long Service Life |

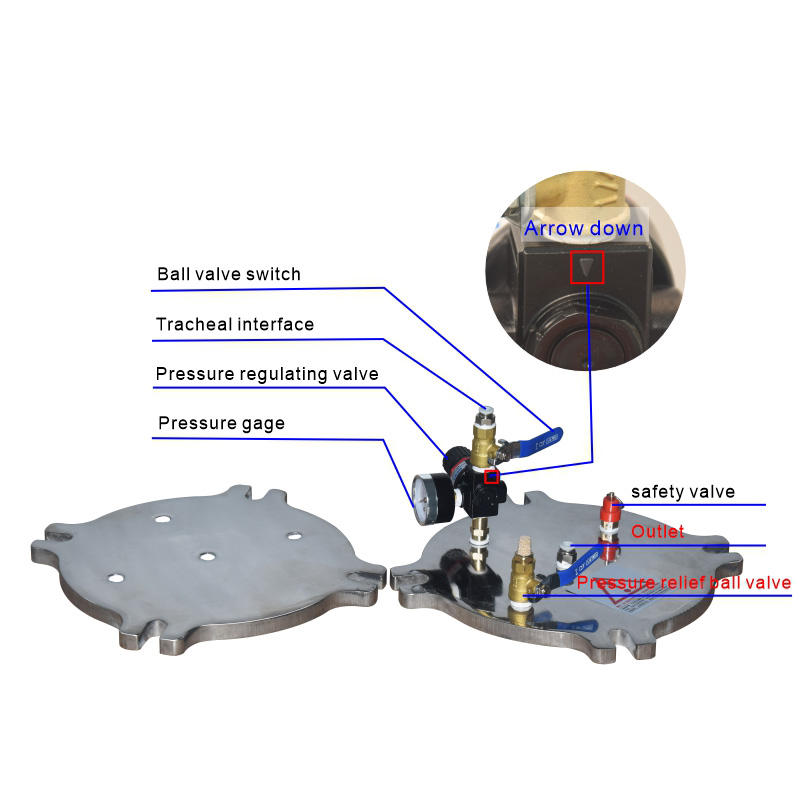

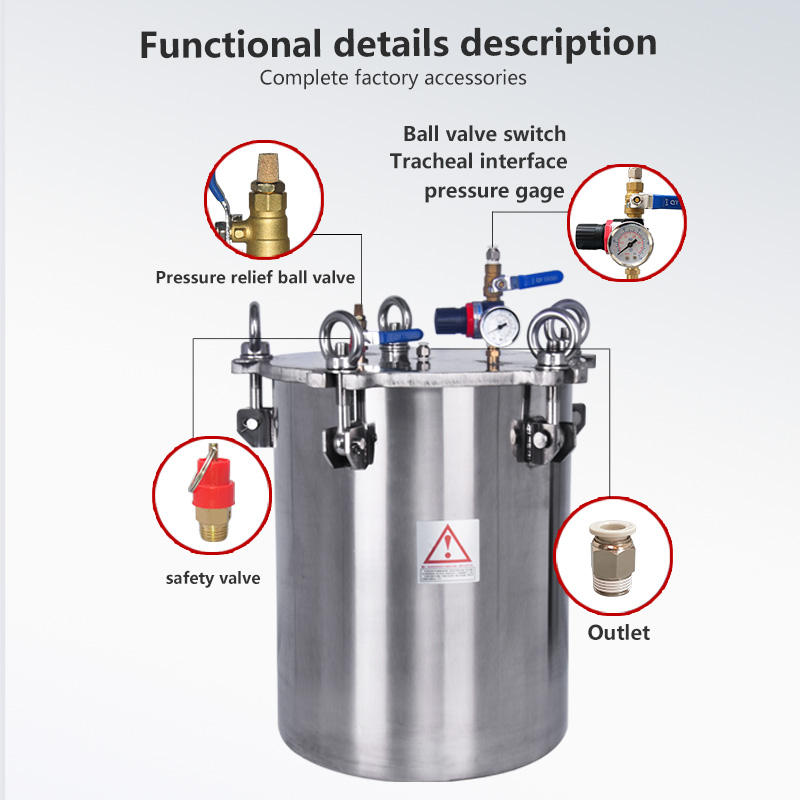

| Core Components | Stainless Steel Barrel Body, Stainless Steel Barrel Lid |
| Volume (m³) | 0.04 |
| Working Temperature (℃) | -20 – 180℃ |
| Place of Origin | Guangdong, China |
| Weight (KG) | 38 |
| Brand Name | Yakoo | Customize |
| Dimension (L×W×H) | 325×325×540(mm) |
Product Information
| Product Name | Pressure Tank |
| Material | 304 Stainless Steel |
| Volume (L) | 40L |
| Max Working Pressure (MPa) | 0.5MPa |

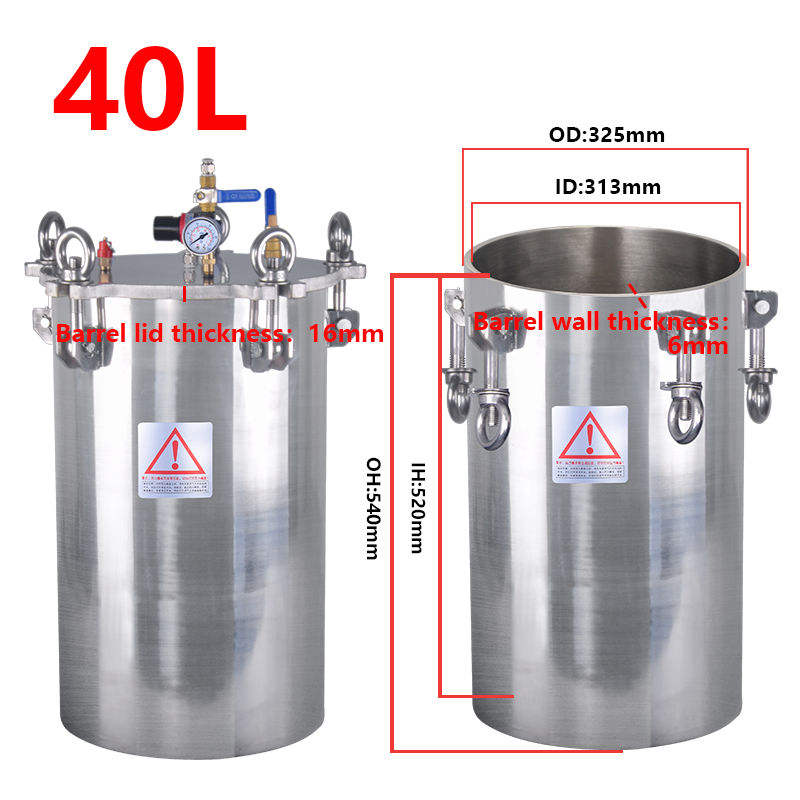

| Outer Barrel Height | 540mm |
| Inner Barrel Height | 520mm |
| Outer Diameter Of Barrel Body | 325mm |
| Inner Diameter Of Barrel Body | 313mm |
| Barrel Thickness | 6mm |
| Barrel Lid Thickness | 16mm |
Packaging And Delivery
| Selling Units | Single Item |
| Single Package Size | 43×43×63 cm |
| Single Gross Weight | 38.0 kg |
