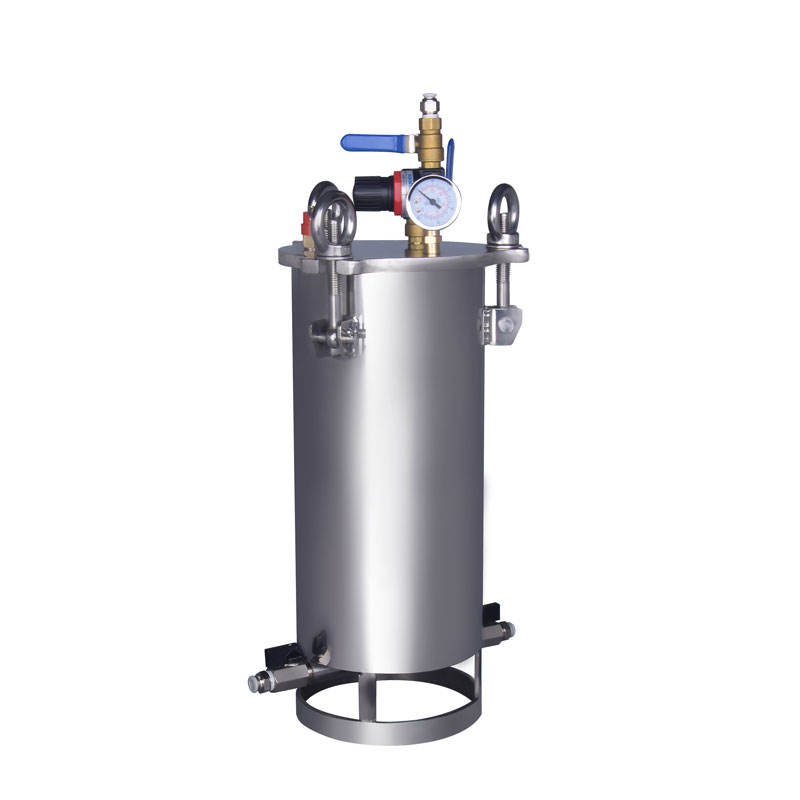

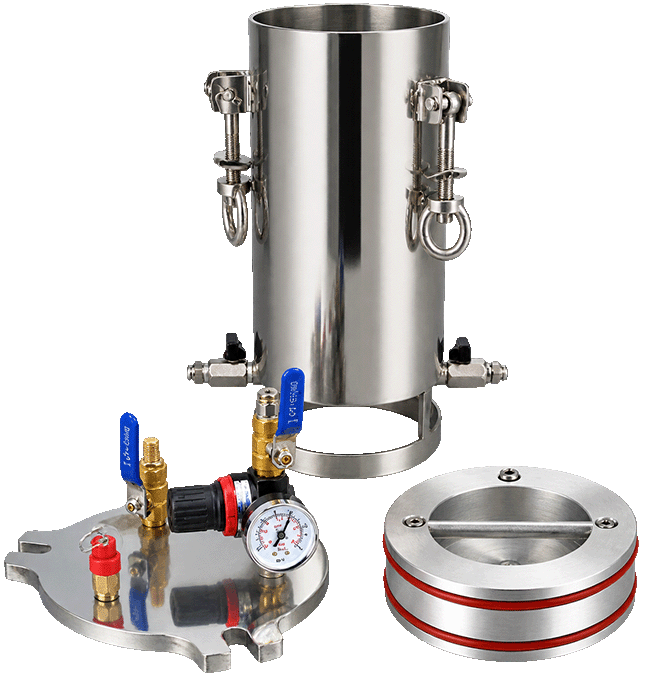

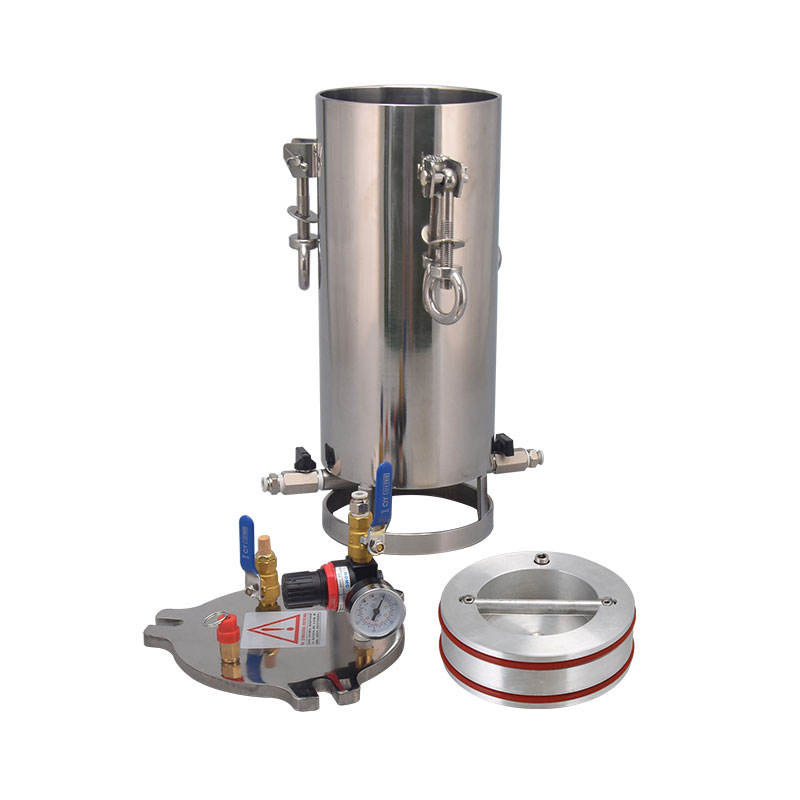

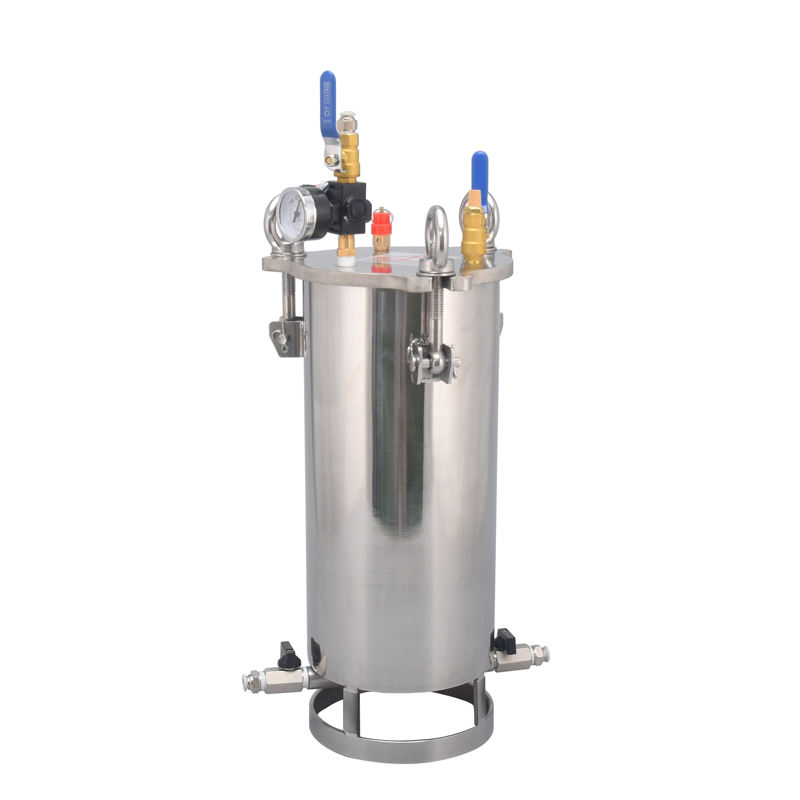

Industrial 5L Stainless Steel Pressure Vessel 304 Material with Aluminum Piston for Foaming Machine

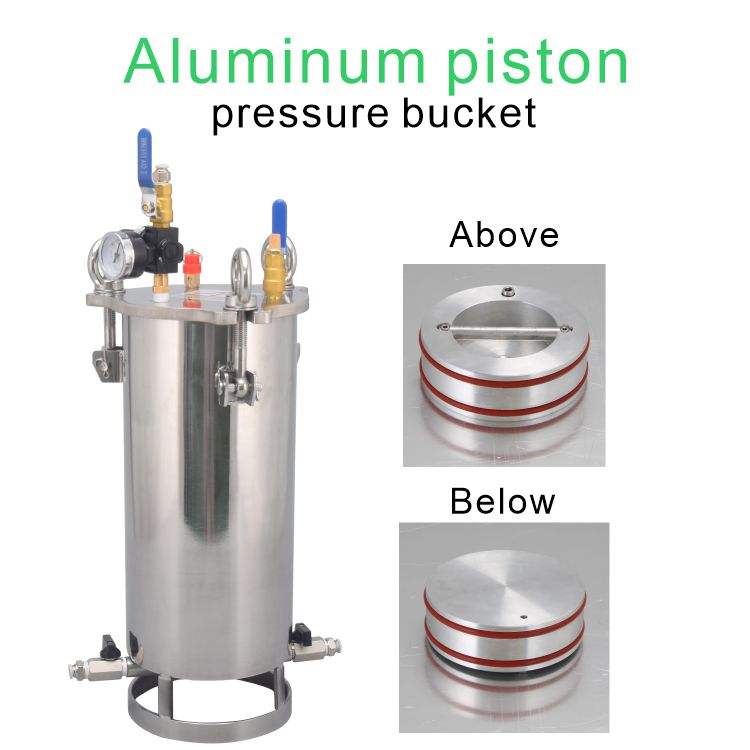

Pressure vessels with aluminum pistons
Key attributes
| Design Pressure (mpa) | 0.8MPa |
| design standard | 0.8MPa |
| Type | pressure tank |
| inner material | 304 Stainless steel |
| outer material | 304 Stainless steel |
| machinery test report | Provided |
| video outgoing-inspection | Provided |
| warranty | 1 Year |
| key selling points | Long Service Life |
| core components | Stainless steel barrel body, Stainless steel barrel lid, Pneumatic agitator |
| volume (m³) | 0.005 |
| working temperature(℃) | -20 – 180 ℃ |
| place of origin | Guangdong, China |
| Weight (KG) | 15 |
| brand name | yakoo |
| dimension(l*w*h) | 159x159x330(mm) |
Product Details
| Product name | Pressure vessels with aluminum pistons |
| Volume (L) | 5L |
| Material | 304 Stainless steel |
| Max Working Pressure(MPa) | 0.8MPa |
| Outer barrel height | 330mm |
| Inner barrel height | 320mm |
| Outer diameter of barrel body | 159mm |
| Inner diameter of barrel body | 151mm |
| Barrel thickness | 4 |
| Barrel lid thickness | 12 |
Packaging and delivery
| Selling Units | Single item |
| Single package size | 26X26X43 cm |
| Single gross weight | 15.0 kg |
