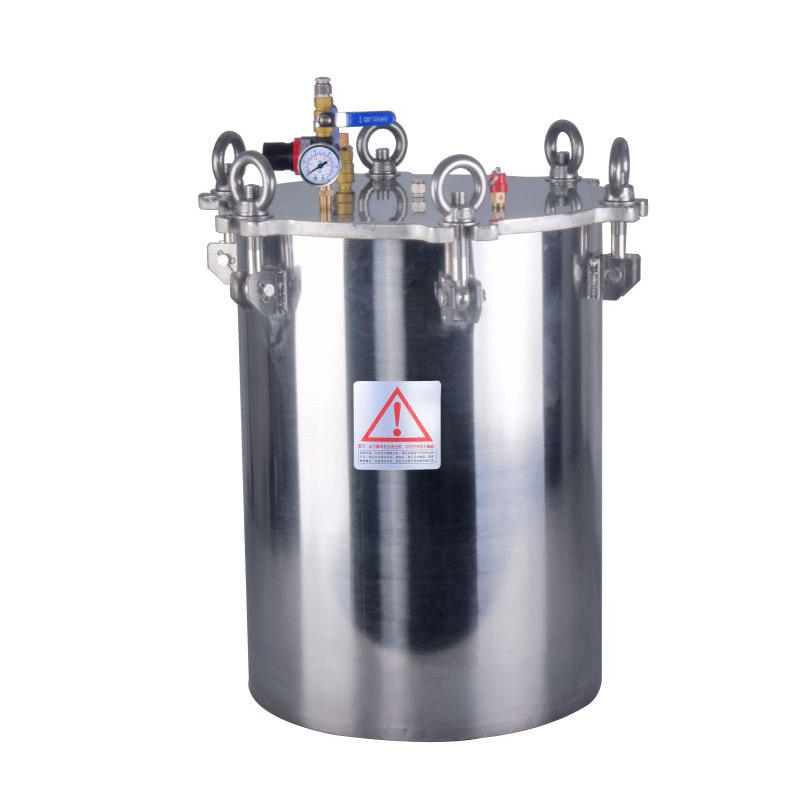

Customize 50L 304 Stainless Steel Pressure Vessel Fabrication for Foaming Machine Long Service Life Manufacturing Plants
Pressure vessel
Key attributes
| Design Pressure (mpa) | 0.5MPa |
| design standard | 0.5MPa |
| Type | pressure tank |
| inner material | 304 Stainless steel |
| outer material | 304 Stainless steel |
| machinery test report | Provided |
| video outgoing-inspection | Provided |
| warranty | 1 Year |
| key selling points | Long Service Life |

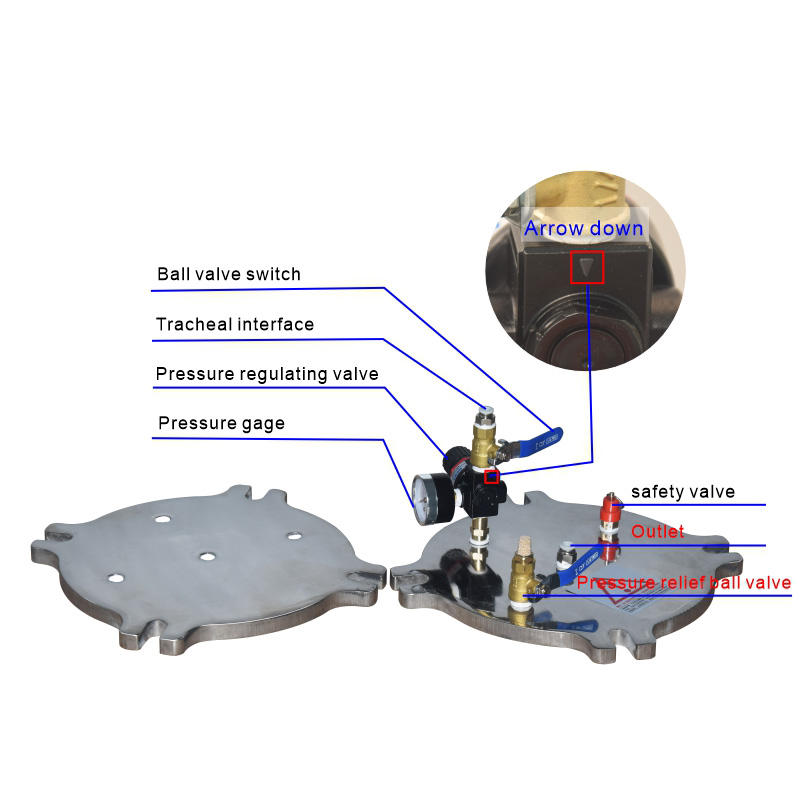

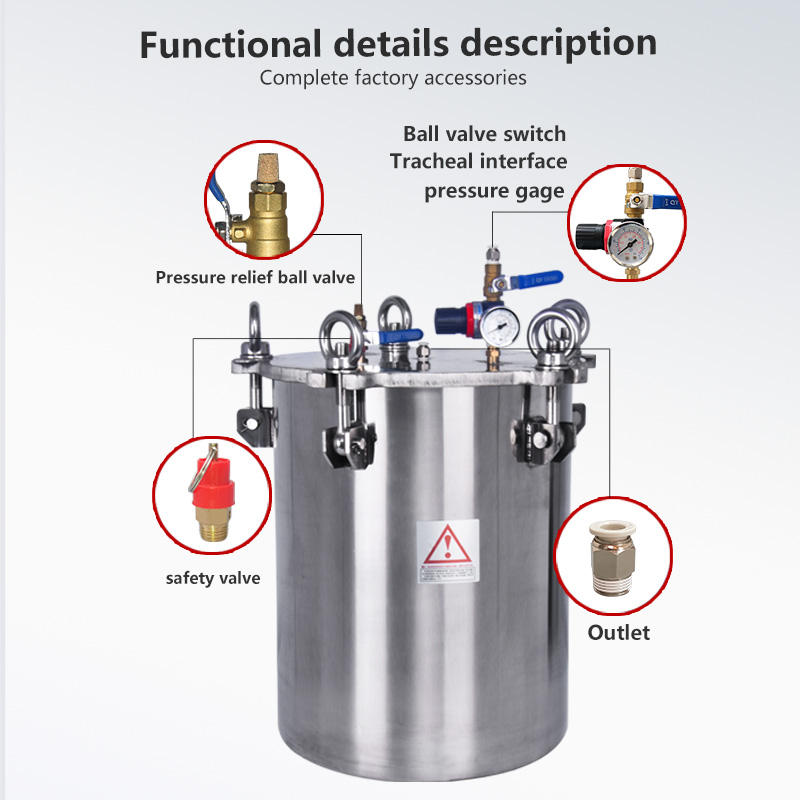

| core components | Stainless steel barrel body, Stainless steel barrel lid |
| volume (m³) | 0.05 |
| working temperature(℃) | -20 – 180 ℃ |
| place of origin | Guangdong, China |
| Weight (KG) | 49 |
| brand name | Yakoo | Customize |
| dimension(l*w*h) | 376x376x510(mm) |
Product Details
| Product name | Pressure vessel |
| Material | 304 Stainless steel |
| Volume (L) | 50L |
| Max Working Pressure(MPa) | 0.5MPa |

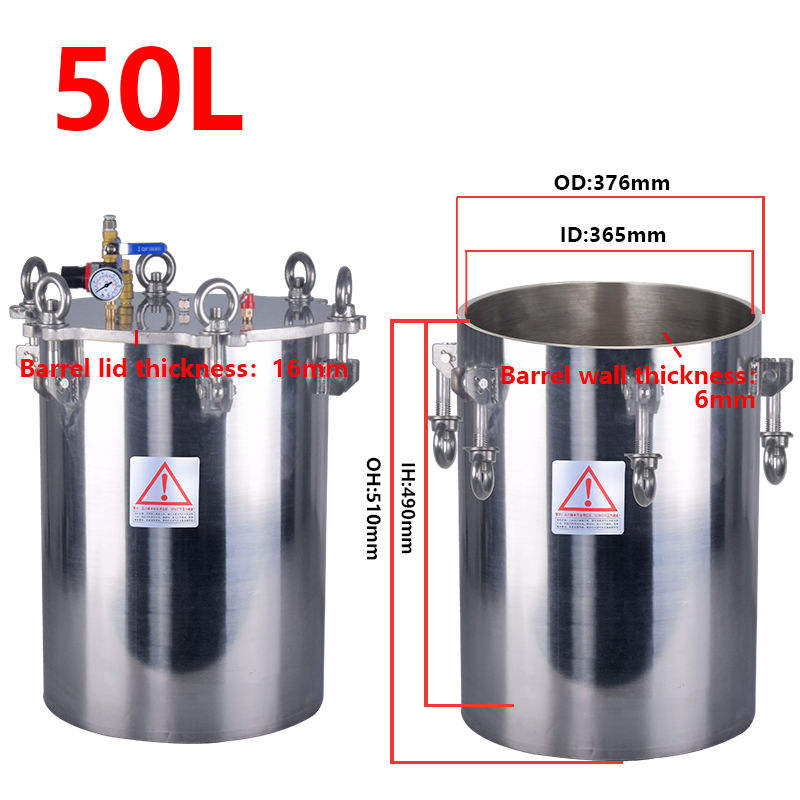

| Outer barrel height | 510mm |
| Inner barrel height | 490mm |
| Outer diameter of barrel body | 376mm |
| Inner diameter of barrel body | 365mm |
| Barrel thickness | 6mm |
| Barrel lid thickness | 16mm |
Packaging and delivery
| Selling Units | Single item |
| Single package size | 43X43X61 cm |
| Single gross weight | 49.0 kg |
