40L 120W Professional Duty 304 Stainless Steel Vertical Pressure Vessel Tank Electric Mixer 0.5MPa Design Pressure -20 180C
Pressure vessel with electric mixer
Key Attributes
| Design Pressure (mpa) | 0.5MPa |
| design standard | 0.5MPa |
| Type | pressure tank |
| inner material | 304 Stainless steel |
| outer material | 304 Stainless steel |
| machinery test report | Provided |
| video outgoing-inspection | Provided |
| warranty | 1 Year |
| key selling points | Long Service Life |
| core components | Stainless steel barrel body, Stainless steel barrel lid, Pneumatic agitator |
| volume (m³) | 0.04 |
| working temperature(℃) | -20 – 180 ℃ |
| place of origin | Guangdong, China |
| Weight (KG) | 48 |
| brand name | Yakoo | Customize |
| dimension(l*w*h) | 325x325x870(mm) |
Product Details

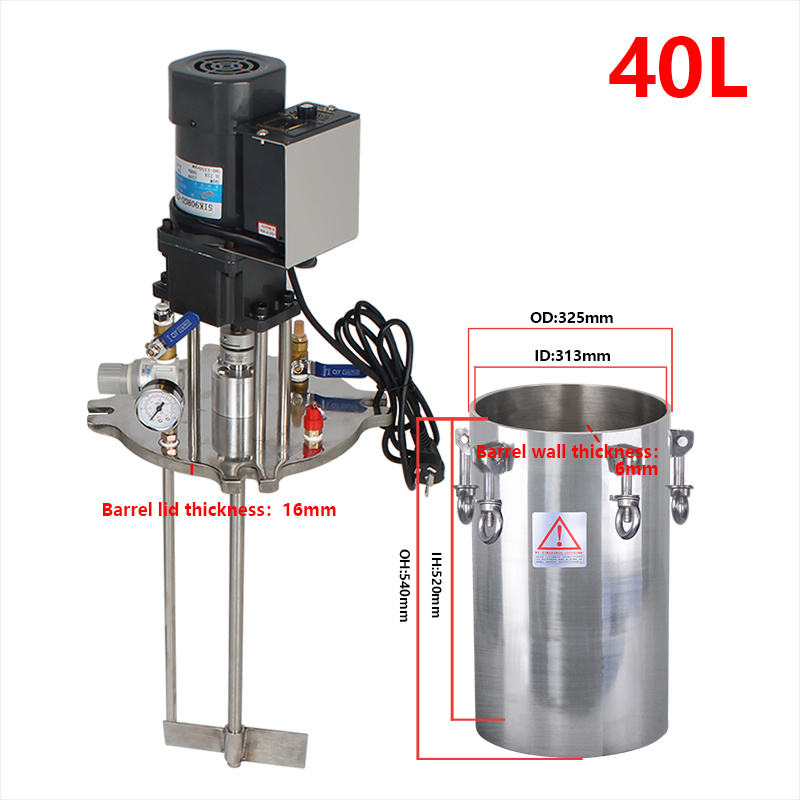

| Product name | Pressure vessel with electric mixer |
| Material | 304 Stainless steel |
| Volume | 40L |
| Max Working Pressure(MPa) | 0.5MPa |
| Outer barrel height | 540mm |
| Inner barrel height | 520mm |
| Outer diameter of barrel body | 325mm |
| Inner diameter of barrel body | 313mm |
| Barrel thickness | 6mm |
| Barrel lid thickness | 16mm |
Packaging and Delivery
| Selling Units | Single item |
| Single package size | 55X55X103 cm |
| Single gross weight | 48.0 kg |
