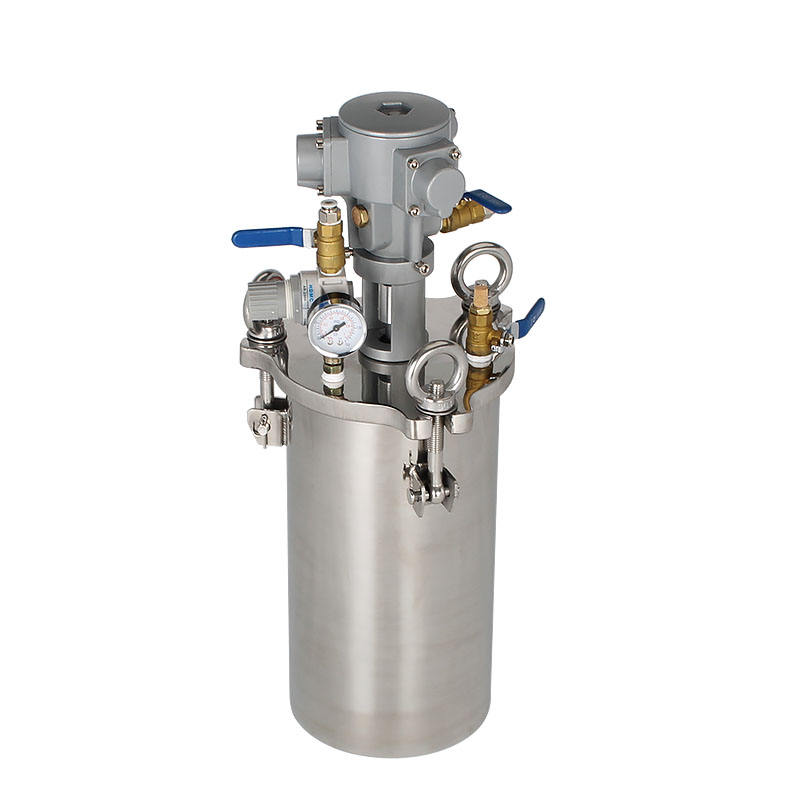

40L Air Powered Mixing Agitator Pressure Vessel Storage Tank
Product Specifications
40L Pressure Vessel with Pneumatic Stirrer
Industrial 304 stainless steel pressure tank equipped with a pneumatic agitator,
designed for fluid storage, mixing, pressurized feeding and dispensing applications.
Suitable for glue, adhesives, coatings, resins, sealants and other industrial fluids.
Product Overview
| Product Name | Pressure Vessel with Pneumatic Stirrer |
| Brand Name | YAKOO |
| Type | Pressure Tank |
| Material | 304 Stainless Steel |
| Volume | 40 L |
| Volume (m³) | 0.04 m³ |
| Max. Working Pressure | 0.5 MPa |
| Design Pressure | 0.5 MPa |
| Design Standard | 0.5 MPa |
| Working Temperature | -20℃ to 180℃ |
| Place of Origin | Guangdong, China |
| Weight | 42 kg |
| Overall Dimensions | 325 × 325 × 750 mm |
Material & Structure
| Inner Material | 304 Stainless Steel |
| Outer Material | 304 Stainless Steel |
| Barrel Body Material | 304 Stainless Steel |

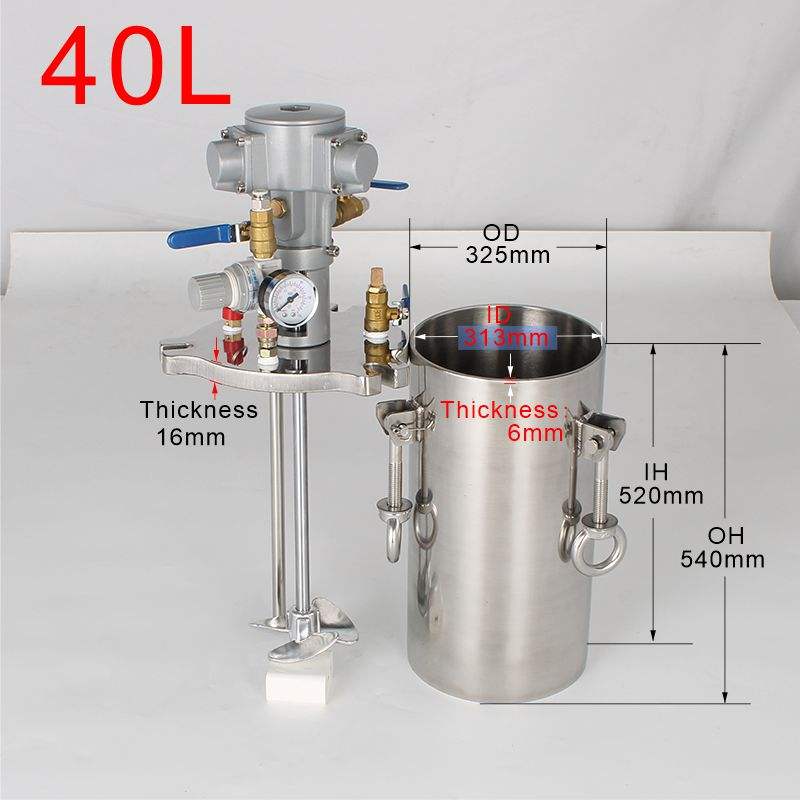

| Outer Barrel Height | 540 mm |
| Inner Barrel Height | 520 mm |
| Outer Diameter of Barrel Body | 325 mm |
| Inner Diameter of Barrel Body | 313 mm |
| Barrel Thickness | 6 mm |
| Barrel Lid Thickness | 16 mm |

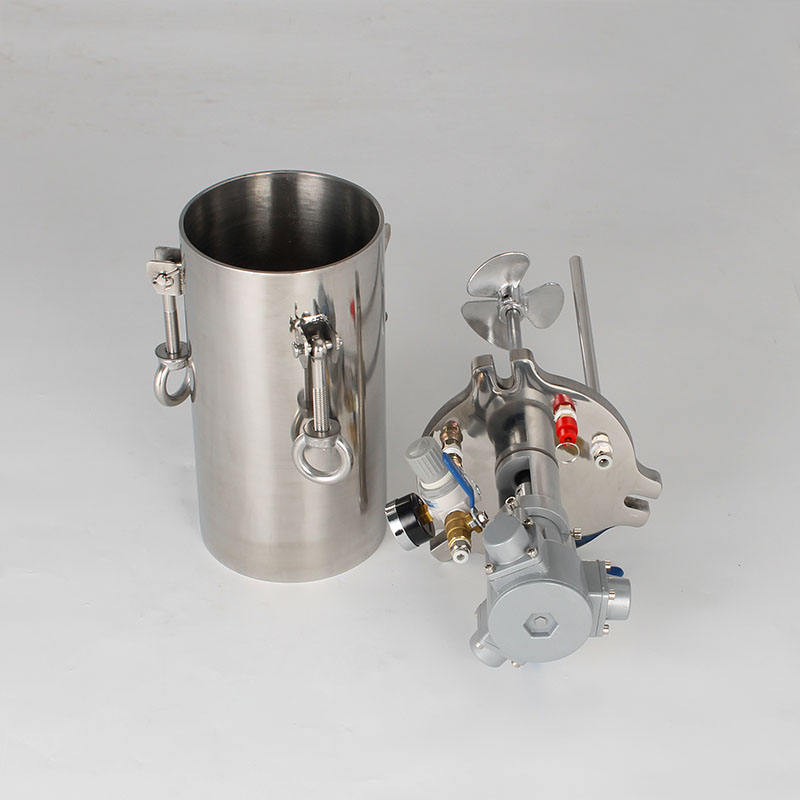

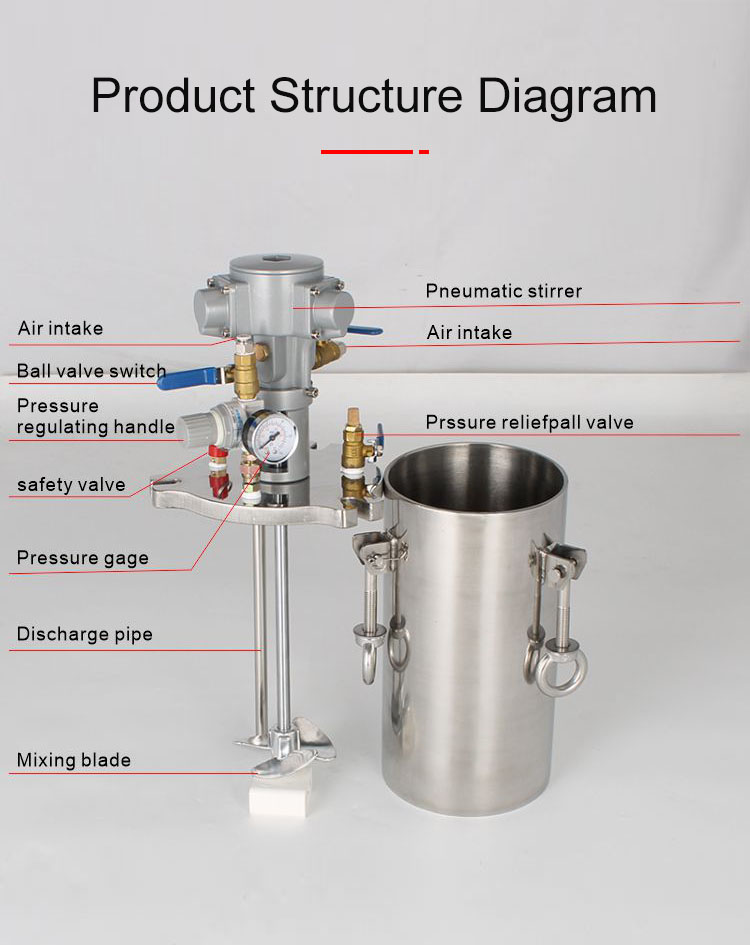

Core Components
| Stainless Steel Barrel Body | 304 stainless steel pressure vessel body |
| Stainless Steel Barrel Lid | 304 stainless steel reinforced pressure tank lid |
| Pneumatic Agitator | Pneumatic stirring system for continuous material mixing |
Quality Assurance
| Machinery Test Report | Provided |
| Video Outgoing Inspection | Provided |
| Warranty | 1 Year |
| Key Selling Point | Long Service Life |
Key Features
- 40L Tank Capacity –
suitable for continuous industrial fluid storage, mixing and dispensing applications. - 304 Stainless Steel Construction –
inner and outer tank components are made from 304 stainless steel. - Pneumatic Stirring System –
equipped with a pneumatic agitator for continuous material mixing. - 0.5 MPa Maximum Working Pressure –
designed for pressurized fluid feeding applications. - 6 mm Barrel Thickness –
heavy-duty stainless steel barrel structure. - 16 mm Barrel Lid Thickness –
reinforced stainless steel lid structure. - Wide Working Temperature Range –
specified operating temperature range from -20℃ to 180℃. - Long Service Life –
designed for industrial fluid handling and dispensing applications.
Packaging & Delivery
| Selling Units | Single Item |
| Single Package Size | 43 × 43 × 84 cm |
| Single Gross Weight | 42.0 kg |

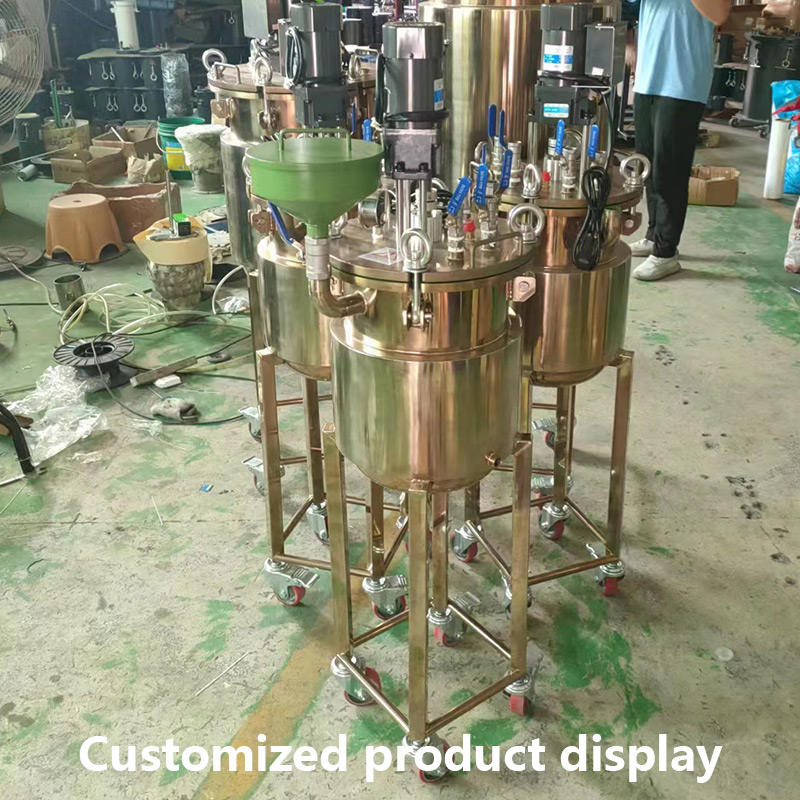

Customization Available
YAKOO provides customized pressure tank solutions according to
different fluid materials and dispensing requirements.
| Tank Capacity | Customizable |
| Tank Material | 304 Stainless Steel / Customized |
| Working Pressure | Customized according to application requirements |
| Mixing System | Pneumatic / Customized |
| Tank Structure | Customized |
| Inlet & Outlet Connections | Customized |
| Agitator Configuration | Customized according to material and application requirements |
| Branding | YAKOO / OEM / ODM |
Typical Applications
The YAKOO 40L pneumatic stirring pressure tank is suitable for
industrial fluid storage, agitation, pressurized feeding and dispensing applications.
- Glue Dispensing
- Adhesive Feeding
- Epoxy Resin Dispensing
- Silicone Feeding
- Sealant Dispensing
- Coating Material Supply
- Paint & Ink Feeding
- Automated Dispensing Systems
- Industrial Fluid Feeding
- Production Line Material Supply
Need a 40L Pneumatic Mixing Pressure Tank?
Tell us your fluid type, material viscosity, required capacity,
working pressure, mixing requirements and dispensing application.
YAKOO can provide a suitable
40L pneumatic mixing pressure tank, glue pressure tank,
adhesive pressure tank or stainless steel dispensing pressure vessel
for your application.
