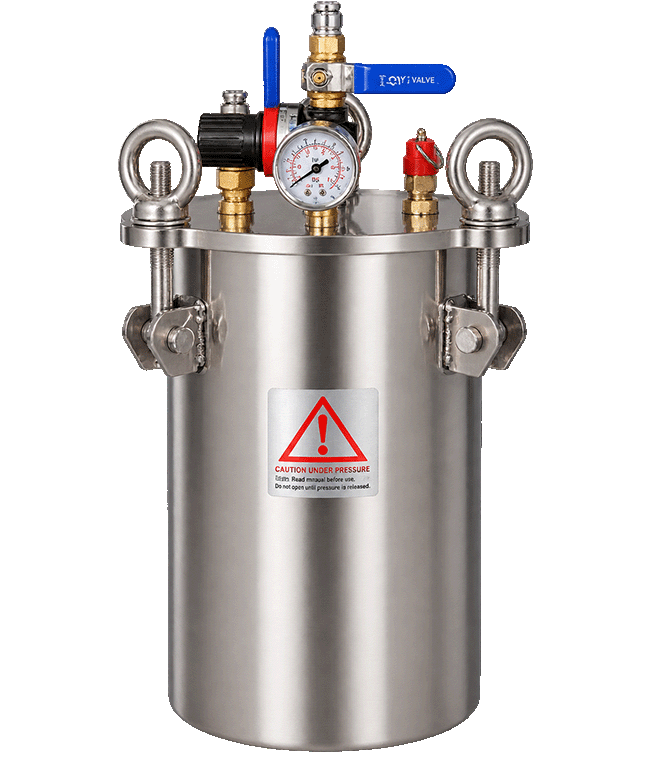

5L Industrial 304 Stainless Steel Pressure Vessels 5 Liter for Foaming Machine
5L Stainless Steel Pressure Tank
Product Name: Pressure Tank
Brand: Yakoo | Customize
Material: 304 Stainless Steel
Volume: 5L
Max Working Pressure: 0.5MPa
Key Attributes
| Design Pressure | 0.5MPa |
|---|---|
| Design Standard | 0.5MPa |
| Type | Pressure Tank |
| Inner Material | 304 Stainless Steel |
| Outer Material | 304 Stainless Steel |
| Machinery Test Report | Provided |
| Video Outgoing Inspection | Provided |
| Warranty | 1 Year |
| Key Selling Points | Long Service Life |

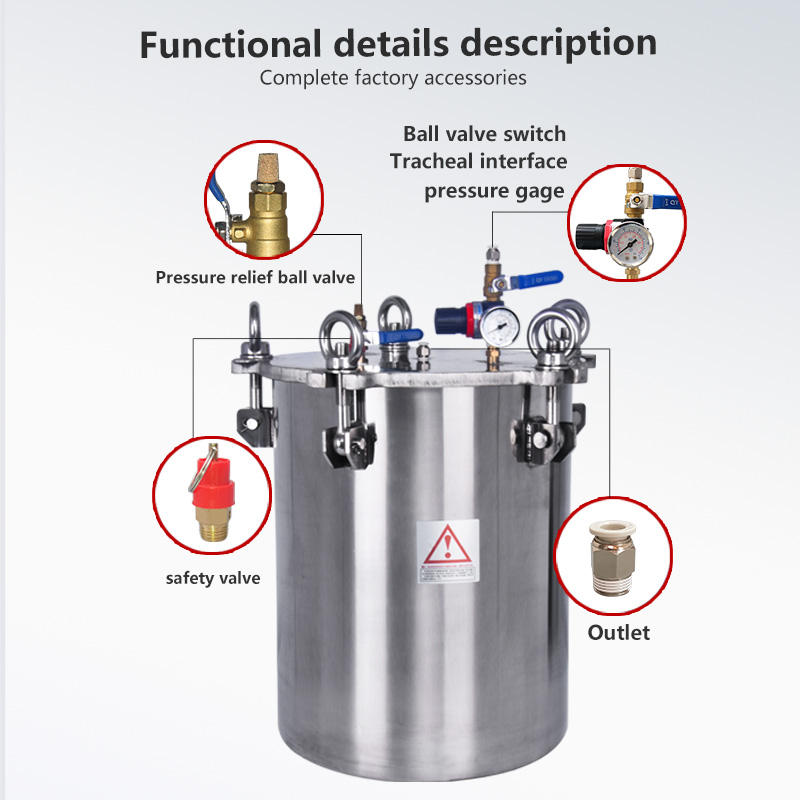

| Core Components | Stainless Steel Barrel Body, Stainless Steel Barrel Lid |
| Volume | 0.005 m³ |
| Working Temperature | -20°C – 180°C |
| Place of Origin | Guangdong, China |
| Weight | 9 kg |
| Brand Name | Yakoo | Customize |
| Overall Dimension (L × W × H) | 159 × 159 × 300 mm |
Product Specifications
| Product Name | Pressure Tank |
|---|---|
| Material | 304 Stainless Steel |
| Volume | 5L |
| Max Working Pressure | 0.5MPa |

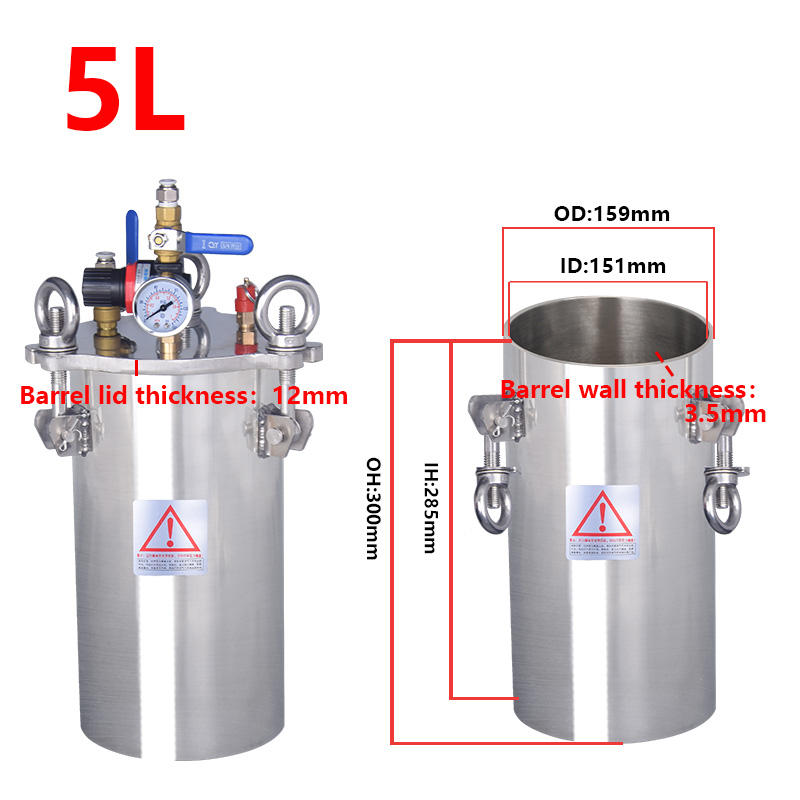

| Outer Barrel Height | 300 mm |
| Inner Barrel Height | 285 mm |
| Outer Diameter of Barrel Body | 159 mm |
| Inner Diameter of Barrel Body | 151 mm |
| Barrel Thickness | 3.5 mm |
| Barrel Lid Thickness | 12 mm |
Packaging & Delivery
| Selling Units | Single Item |
|---|---|
| Single Package Size | 23 × 23 × 39 cm |
| Single Gross Weight | 9.0 kg |
