Essential 304 Stainless Steel Pressure Vessel Closures Inspect for Secure Seals Maintenance

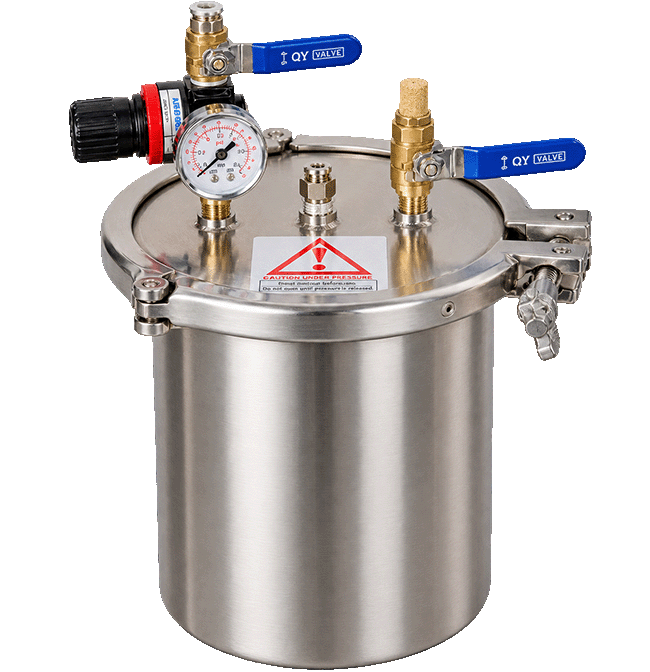

1L 304 Stainless Steel Pressure Vessel with Clamps
Product Name: Pressure Vessels with Clamps
Brand: Yakoo | Customize
Place of Origin: Guangdong, China
Product Overview
| Product Name | Pressure Vessels with Clamps |
|---|---|
| Type | Pressure Tank |
| Brand Name | Yakoo | Customize |
| Material | 304 Stainless Steel |
| Volume | 1 L (0.001 m³) |
| Max Working Pressure | 0.3 MPa |
| Design Pressure | 0.3 MPa |
| Working Temperature | -20 to 180 ℃ |
| Weight | 7 kg |
| Dimension | 108 × 108 × 140 mm |
Technical Specifications
| Design Pressure | 0.3 MPa |
|---|---|
| Design Standard | 0.3 MPa |
| Maximum Working Pressure | 0.3 MPa |
| Working Temperature | -20 to 180 ℃ |
| Volume | 1 L |
| Outer Barrel Height | 108 mm |
| Inner Barrel Height | 102 mm |
| Outer Diameter | 140 mm |
| Inner Diameter | 130 mm |
Material & Construction
| Inner Material | 304 Stainless Steel |
|---|---|
| Outer Material | 304 Stainless Steel |
| Barrel Thickness | 3 mm |
| Barrel Lid Thickness | 6 mm |
| Barrel Body Diameter | 140 mm |
| Inner Diameter | 130 mm |
| Barrel Structure | 304 Stainless Steel Welded Construction |
Core Components
| Stainless Steel Barrel Body | 304 Stainless Steel |
|---|---|
| Stainless Steel Barrel Lid | 304 Stainless Steel |
| Clamp Locking Structure | High Strength Clamp Fixing |
Quality Inspection
| Machinery Test Report | Provided |
|---|---|
| Video Outgoing Inspection | Provided |
| Warranty | 1 Year |
| Key Selling Point | Long Service Life |
Packaging & Delivery
| Selling Units | Single Item |
|---|---|
| Package Size | 21 × 21 × 24 cm |
| Gross Weight | 7.0 kg |
Product Dimensions
| Overall Size | 108 × 108 × 140 mm |
|---|---|
| Outer Diameter | 140 mm |
| Inner Diameter | 130 mm |
| Outer Barrel Height | 108 mm |
| Inner Barrel Height | 102 mm |
| Barrel Thickness | 3 mm |
| Lid Thickness | 6 mm |
| Capacity | 1 L |
Product Features
- Premium 304 stainless steel material
- Compact 1-liter pressure vessel design
- Maximum working pressure 0.3 MPa
- Temperature resistance from -20 to 180 ℃

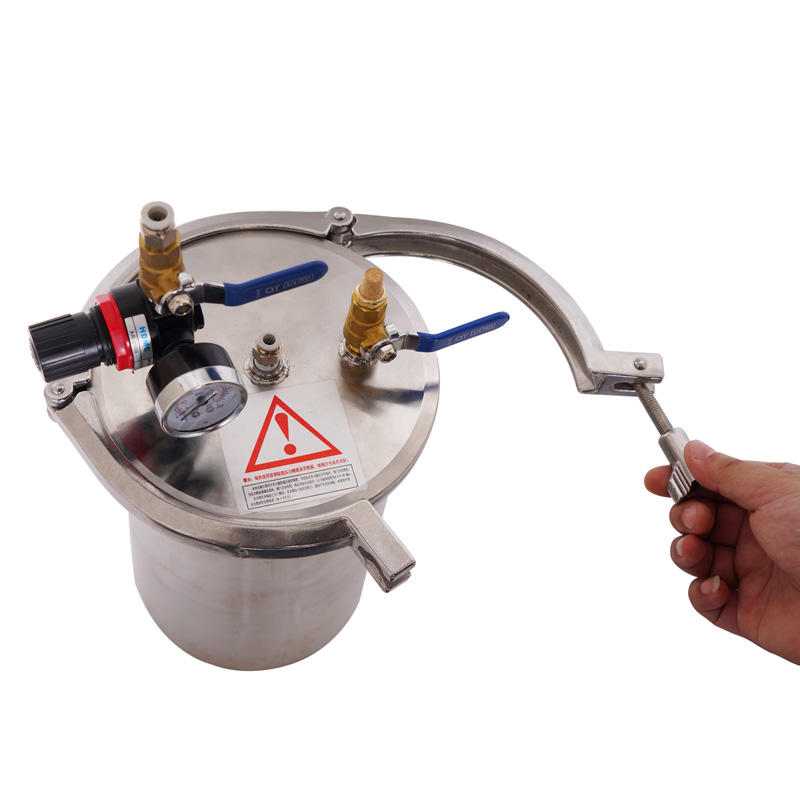

- Clamp-type quick opening design
- Easy cleaning and maintenance
- 3 mm thick stainless steel barrel body
- 6 mm thick pressure-resistant lid
- Suitable for laboratory, industrial and fluid storage applications
- Long service life and stable operation
Technical Data Summary
| Parameter | Specification |
|---|---|
| Product Type | Pressure Tank |
| Product Name | Pressure Vessels with Clamps |
| Material | 304 Stainless Steel |
| Capacity | 1 L |
| Design Pressure | 0.3 MPa |
| Working Pressure | 0.3 MPa |
| Working Temperature | -20 to 180 ℃ |
| Barrel Thickness | 3 mm |
| Lid Thickness | 6 mm |
| Core Components | Stainless Steel Barrel Body & Barrel Lid |
| Weight | 7 kg |
| Warranty | 1 Year |
