YaHong Stainless Steel Pressure Vessel 1–120L, 1–8 Bar
The YaHong pressure vessel is a stainless steel liquid storage tank designed for applications requiring reliable containment at pressures from 1 to 8 bar. It is available in capacities from 1 to 120 liters and can be customized in size and flange configuration to suit specific process requirements. The vessel is constructed with food-grade 304 or 316 stainless steel for both inner and outer surfaces, making it suitable for industries where hygiene and corrosion resistance are priorities.
Key Specifications
| Design Pressure | 0.8 MPa (approx. 8 bar) |
|---|---|
| Type | Pressure Tank |
| Inner Material | Stainless Steel (304/316 food grade) |
| Outer Material | Stainless Steel |
| Machinery Test Report | Provided |
| Video Outgoing Inspection | Provided |
| Warranty | 1 Year |
| Core Components | Pressure Vessel |
| Volume | 1–200 L (standard range 1–120 L) |
| Working Temperature | -20°C – 180°C |
| Place of Origin | Guangdong, China |
| Weight | 30 KG |
| Brand Name | YaHong |
| Key Selling Points | Long Service Life, Easy To Operate, High Productivity, Multifunctional, Energy Saving, High Rigidity, High Accuracy |
Construction and Materials
The vessel is fabricated entirely from stainless steel, with the option of 304 or 316 grades for enhanced corrosion resistance. The food-grade designation indicates suitability for contact with consumable liquids, though specific certifications should be confirmed for your application. The design includes flange connections, allowing integration with piping systems or other equipment.
Applications
This pressure vessel is commonly used for storing and dispensing liquids in chemical processing, adhesive and sealant handling, and other industrial operations. Its stainless steel construction supports a wide working temperature range from -20°C to 180°C, making it adaptable to both chilled and heated processes.

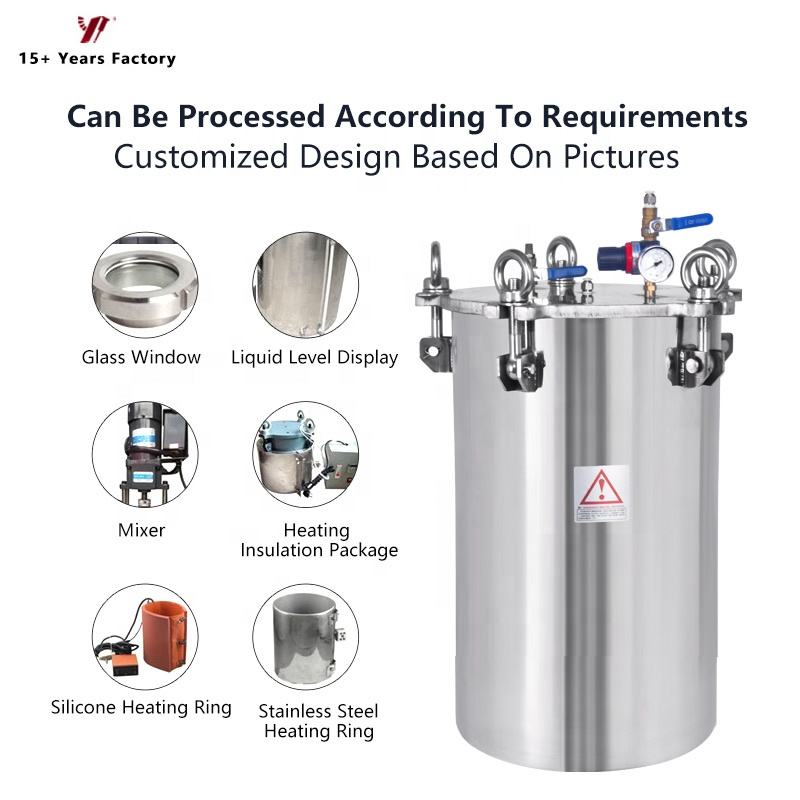

Selection and Customization
When selecting a vessel, consider the required capacity, operating pressure, and temperature. The standard range covers 1–120 liters, but larger volumes up to 200 liters may be available. Custom sizes and flange configurations can be requested to match existing equipment. Always verify that the design pressure and material grade meet your process safety requirements.
Maintenance and Inspection
Regular inspection of the vessel interior and exterior is recommended to detect signs of wear, corrosion, or damage. The manufacturer provides a machinery test report and video outgoing inspection, which can support your quality assurance procedures. Follow all applicable safety standards for pressure equipment during installation and operation.
Packaging and Delivery
| Selling Units | Single Item |
|---|---|
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 KG |
Frequently Asked Questions
What pressure range does this vessel support?
The design pressure is 0.8 MPa, approximately 8 bar. The title indicates a working range of 1–8 bar, but confirm the exact rating for your model.
Is the vessel suitable for food contact?
The vessel is described as food-grade 304/316 stainless steel, but you should verify compliance with relevant food safety regulations for your region.
Can I get a custom size or flange configuration?
Yes, custom sizes and flange connections are available. Contact the manufacturer with your specifications.
What is the warranty period?
The warranty is 1 year from the manufacturer.
What temperature range can the vessel handle?
The working temperature range is -20°C to 180°C.
Are test reports provided?
Yes, a machinery test report and video outgoing inspection are provided.
