40L 120W Professional Duty 304 Stainless Steel Vertical Pressure Vessel Tank Electric Mixer 0.5MPa Design Pressure -20 180C
Product Specifications

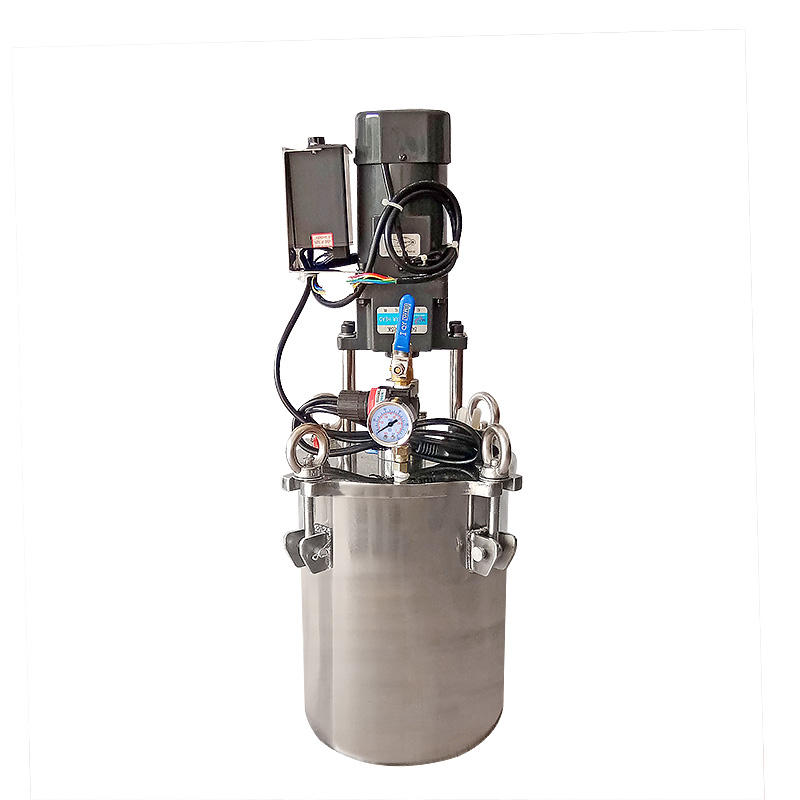

40L Pressure Vessel with Electric Mixer
Industrial 304 stainless steel pressure tank designed for fluid storage,
feeding, mixing and dispensing applications. Suitable for adhesives,
glue, coatings, resins, sealants and other industrial fluids.
Product Overview
| Product Name | Pressure Vessel with Electric Mixer |
| Brand Name | YAKOO | Customize |
| Type | Pressure Tank |
| Material | 304 Stainless Steel |
| Volume | 40 L |
| Volume (m³) | 0.04 m³ |
| Max. Working Pressure | 0.5 MPa |
| Design Pressure | 0.5 MPa |
| Design Standard | 0.5 MPa |
| Working Temperature | -20℃ to 180℃ |
| Place of Origin | Guangdong, China |
| Weight | 48 kg |
| Overall Dimensions | 325 × 325 × 870 mm |
Material & Structure
| Inner Material | 304 Stainless Steel |
| Outer Material | 304 Stainless Steel |
| Barrel Body Material | 304 Stainless Steel |

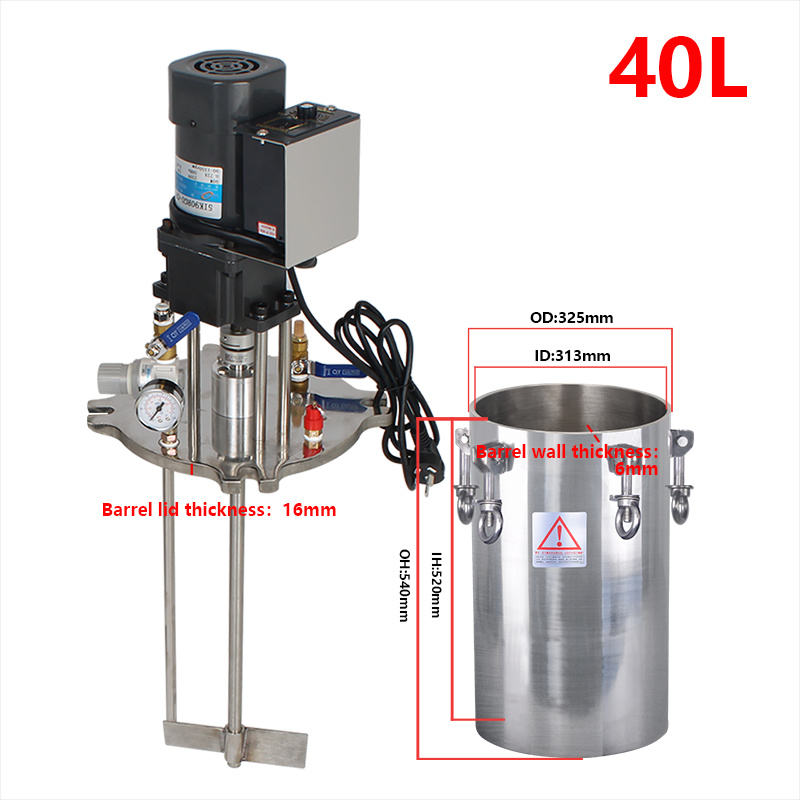

| Outer Barrel Height | 540 mm |
| Inner Barrel Height | 520 mm |
| Outer Diameter of Barrel Body | 325 mm |
| Inner Diameter of Barrel Body | 313 mm |
| Barrel Thickness | 6 mm |
| Barrel Lid Thickness | 16 mm |
Core Components
| Stainless Steel Barrel Body | Heavy-duty 304 stainless steel pressure vessel body |
| Stainless Steel Barrel Lid | Reinforced 304 stainless steel pressure tank lid |
| Agitator | Pneumatic Agitator |
Quality Assurance
| Machinery Test Report | Provided |
| Video Outgoing Inspection | Provided |
| Warranty | 1 Year |
| Key Selling Point | Long Service Life |
Key Features
- 40L Large Capacity –
suitable for continuous industrial fluid feeding and dispensing applications. - 304 Stainless Steel Construction –
provides excellent durability, corrosion resistance and long service life. - 0.5 MPa Working Pressure –
designed for stable and continuous pressurized material feeding. - 6 mm Thick Barrel Body –
heavy-duty structure provides strong mechanical performance. - 16 mm Reinforced Barrel Lid –
helps provide reliable sealing and pressure resistance. - Integrated Mixing Function –
helps maintain uniform material consistency during storage and dispensing. - Wide Working Temperature Range –
supports applications from -20℃ to 180℃. - Industrial Grade Structure –
designed for long-term use in automated production environments. - Custom Configuration Available –
tank structure, fittings, mixing system and other specifications can be customized.
Packaging & Delivery
| Selling Units | Single Item |
| Single Package Size | 55 × 55 × 103 cm |
| Single Gross Weight | 48.0 kg |
Customization Available
YAKOO provides customized pressure tank solutions for different
fluid materials, dispensing systems and industrial production requirements.
| Tank Capacity | Customizable |
| Tank Material | 304 Stainless Steel / Customized |
| Working Pressure | Customized according to application requirements |
| Mixing System | Pneumatic / Electric / Customized |
| Tank Structure | Customized |
| Inlet & Outlet Connections | Customized |
| Agitator Configuration | Customized according to material characteristics |
| Branding | YAKOO / OEM / ODM |
Typical Applications
The YAKOO 40L stainless steel pressure tank can be used in
a wide range of fluid dispensing and industrial feeding applications.
- Glue Dispensing
- Adhesive Feeding
- Epoxy Resin Dispensing
- Silicone Dispensing
- Sealant Feeding
- Coating Material Supply
- Paint & Ink Feeding
- Automated Dispensing Systems
- Industrial Fluid Transfer
- Production Line Material Feeding
Need a 40L Customized Pressure Tank?
Tell us your material type, viscosity, required capacity,
working pressure, mixing requirements and dispensing application.
YAKOO can recommend or customize a suitable
40L glue pressure tank, adhesive pressure tank
or stainless steel dispensing pressure tank
for your production process.
