50L 120W Industrial Stainless Steel 304 Pressure Vessel with Electric Mixer New Version Industrial Electric Mixer
Product Specifications

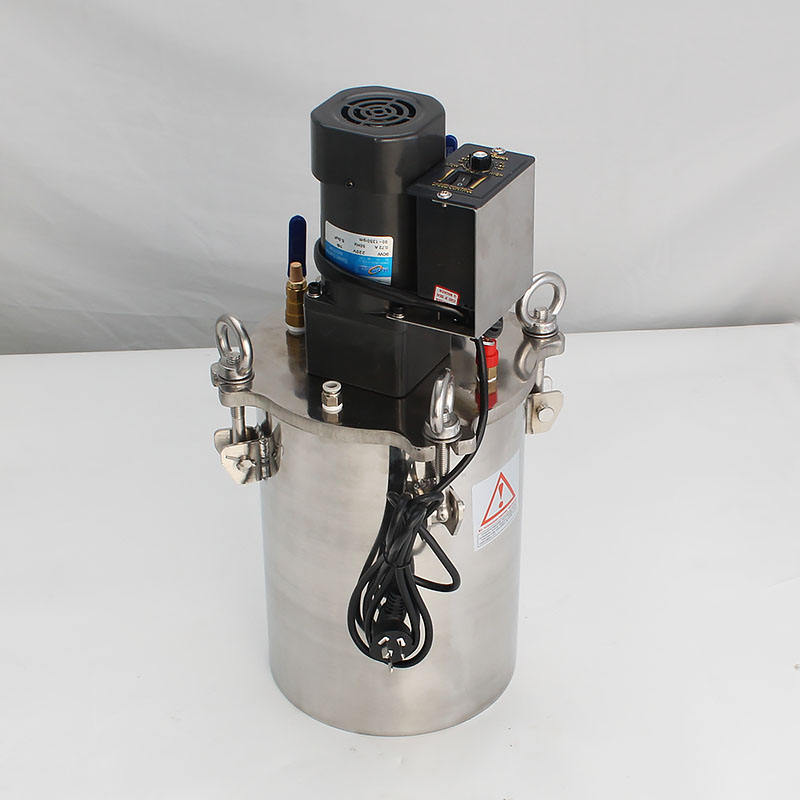

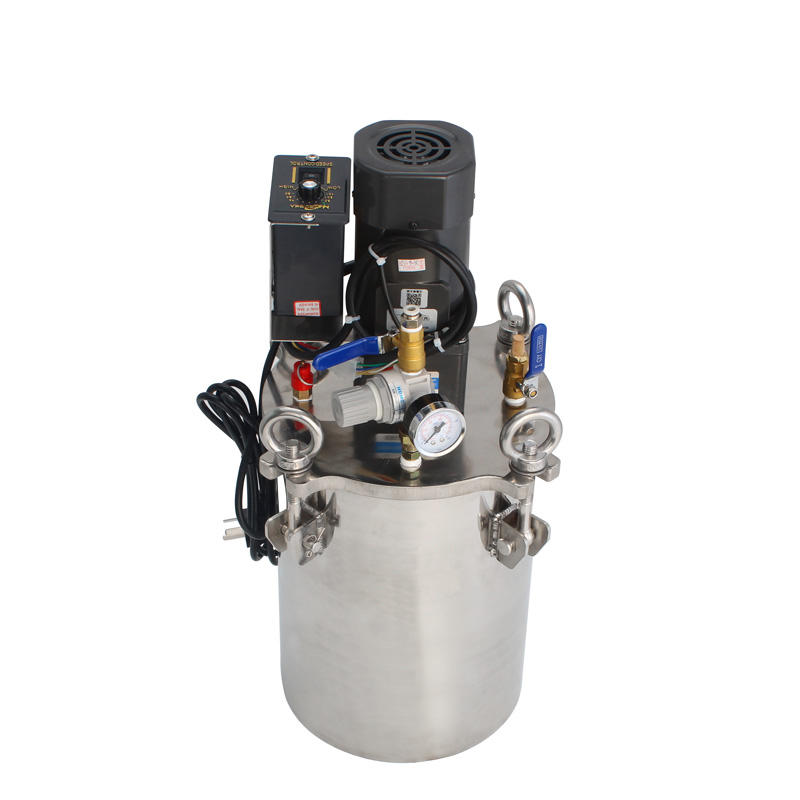

50L Electric Mixing Pressure Drum
Industrial 304 stainless steel pressure tank designed for fluid storage,
mixing, feeding and dispensing applications. Suitable for adhesives,
glue, coatings, paints, inks, resins, sealants and other industrial fluids.
Product Overview
| Product Name | Electric Mixing Pressure Drum |
| Brand Name | YAKOO | Customize |
| Type | Pressure Tank |
| Material | 304 Stainless Steel |
| Volume | 50 L |
| Volume (m³) | 0.05 m³ |
| Max. Working Pressure | 0.5 MPa |
| Design Pressure | 0.5 MPa |
| Design Standard | 0.5 MPa |
| Working Temperature | -20℃ to 180℃ |
| Place of Origin | Guangdong, China |
| Weight | 56 kg |
| Overall Dimensions | 376 × 376 × 840 mm |
Material & Structure
| Inner Material | 304 Stainless Steel |
| Outer Material | 304 Stainless Steel |
| Barrel Body Material | 304 Stainless Steel |

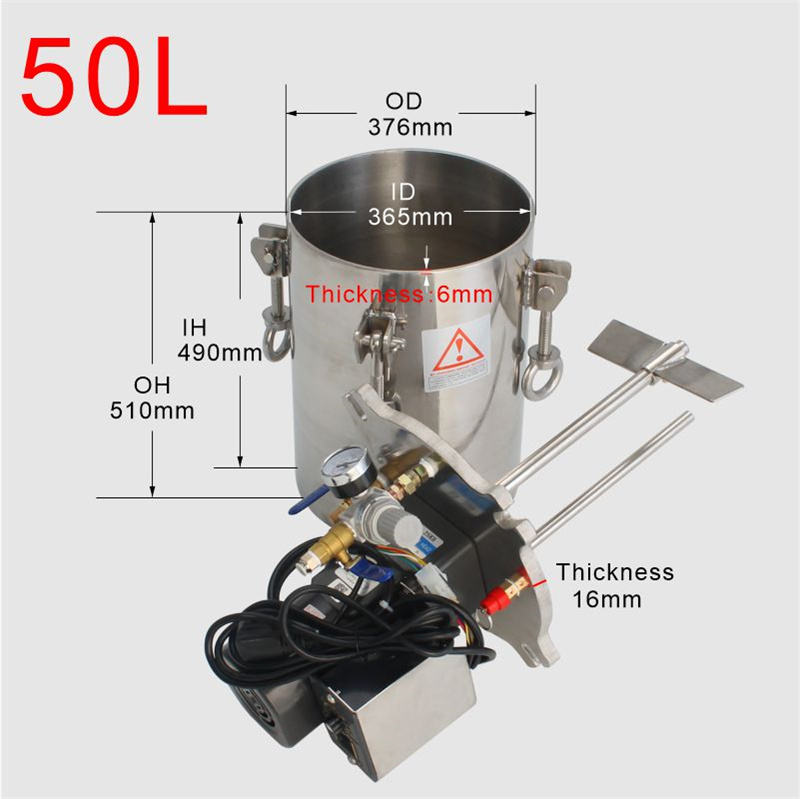

| Outer Barrel Height | 510 mm |
| Inner Barrel Height | 490 mm |
| Outer Diameter of Barrel Body | 376 mm |
| Inner Diameter of Barrel Body | 365 mm |
| Barrel Thickness | 6 mm |
| Barrel Lid Thickness | 0.5 MPa |
Core Components
| Stainless Steel Barrel Body | Heavy-duty 304 stainless steel pressure vessel body |
| Stainless Steel Barrel Lid | Reinforced 304 stainless steel pressure tank lid |

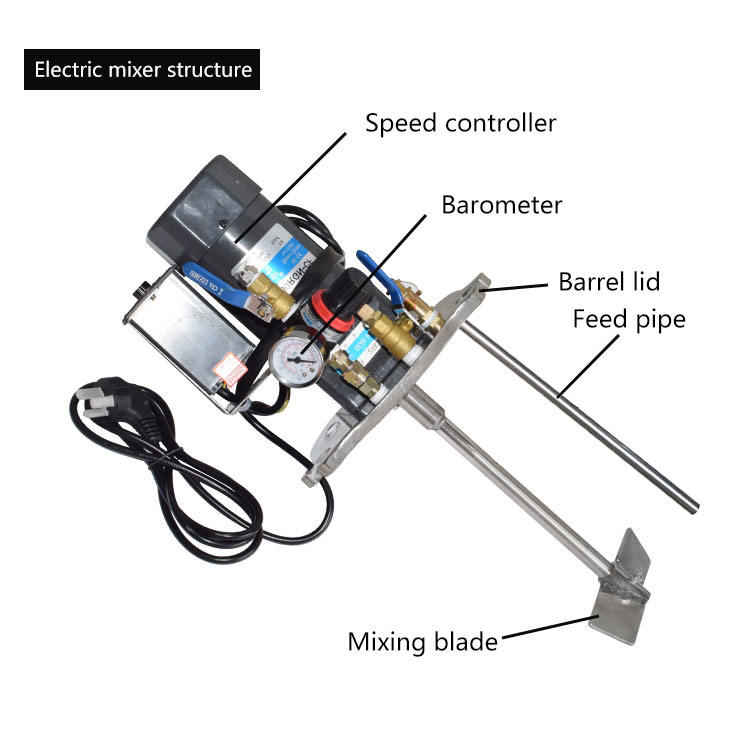

| Agitator | Pneumatic Agitator |
Quality Assurance
| Machinery Test Report | Provided |
| Video Outgoing Inspection | Provided |
| Warranty | 1 Year |
| Key Selling Point | Long Service Life |
Key Features
- 50L Large Capacity –
suitable for continuous industrial fluid feeding, mixing and dispensing applications. - 304 Stainless Steel Construction –
durable and suitable for long-term industrial use. - 0.5 MPa Maximum Working Pressure –
designed for stable pressurized material feeding. - 6 mm Thick Barrel Body –
heavy-duty stainless steel structure for reliable mechanical performance. - Integrated Mixing Function –
helps maintain consistent material properties during storage and dispensing. - Wide Working Temperature Range –
supports operating temperatures from -20℃ to 180℃. - Industrial Pressure Tank Structure –
suitable for automated dispensing and material feeding systems. - Long Service Life –
304 stainless steel construction provides durability for industrial applications. - Customization Available –
tank capacity, structure, fittings, mixing system and other specifications can be customized.
Packaging & Delivery
| Selling Units | Single Item |
| Single Package Size | 44 × 44 × 102 cm |
| Single Gross Weight | 56.0 kg |
Customization Available
YAKOO provides customized pressure tank solutions for different
fluid materials, dispensing systems and industrial production requirements.
| Tank Capacity | Customizable |
| Tank Material | 304 Stainless Steel / Customized |
| Working Pressure | Customized according to application requirements |
| Mixing System | Pneumatic / Electric / Customized |
| Tank Structure | Customized |
| Inlet & Outlet Connections | Customized |
| Agitator Configuration | Customized according to material characteristics |
| Branding | YAKOO / OEM / ODM |
Typical Applications
The YAKOO 50L stainless steel mixing pressure tank is suitable for
a wide range of industrial fluid storage, feeding and dispensing applications.
- Glue Dispensing
- Adhesive Feeding
- Paint Supply
- Ink Feeding
- Coating Spray Systems
- Epoxy Resin Dispensing
- Silicone Dispensing
- Sealant Feeding
- Automated Dispensing Systems
- Industrial Fluid Transfer
- Production Line Material Feeding
Need a 50L Customized Pressure Tank?
Tell us your fluid type, material viscosity, required capacity,
working pressure, mixing requirements and dispensing application.
YAKOO can recommend or customize a suitable
50L glue pressure tank, adhesive pressure tank,
mixing pressure tank or stainless steel dispensing tank
for your production process.
