Industrial 15L 90W Spherical Pressure Vessel 304 Stainless Steel Engineered for Heavy-Duty Applications

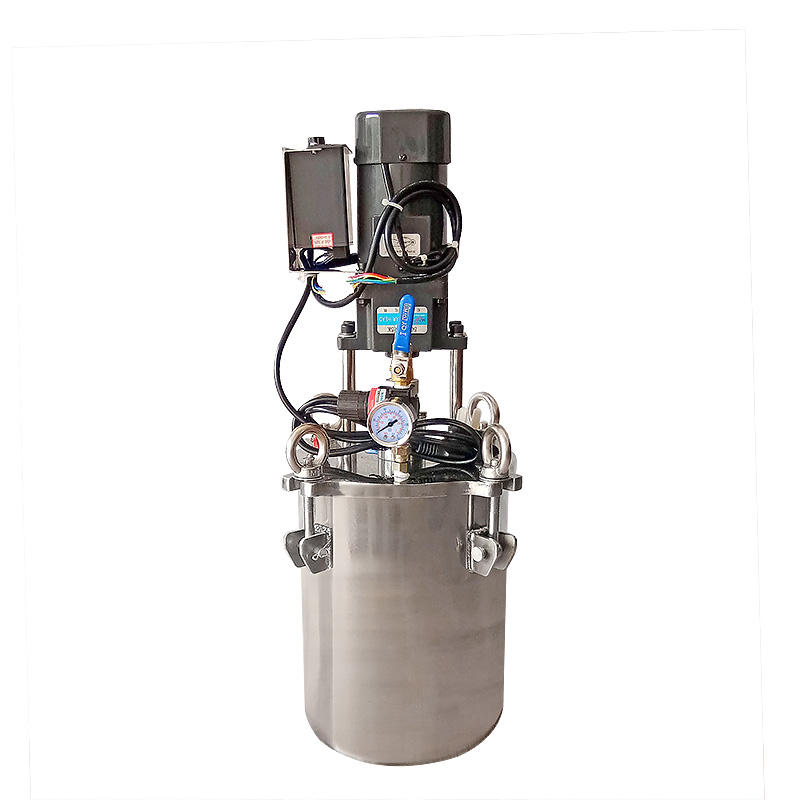

15L 304 Stainless Steel Electric Mixing Pressure Drum
Product Name: Electric Mixing Pressure Drum
Brand: Yakoo | Customize
Place of Origin: Guangdong, China
Product Overview
| Product Name | Electric Mixing Pressure Drum |
|---|---|
| Type | Pressure Tank |
| Brand Name | Yakoo | Customize |
| Material | 304 Stainless Steel |
| Volume | 15 L (0.015 m³) |
| Max Working Pressure | 0.5 MPa |
| Design Pressure | 0.5 MPa |
| Working Temperature | -20 to 180 ℃ |
| Weight | 28 kg |
| Overall Dimensions | 219 × 219 × 780 mm |
Technical Specifications
| Design Pressure | 0.5 MPa |
|---|---|
| Maximum Working Pressure | 0.5 MPa |
| Design Standard | 0.5 MPa |
| Working Temperature | -20 to 180 ℃ |
| Volume | 0.015 m³ / 15 L |
| Outer Barrel Height | 450 mm |
| Inner Barrel Height | 435 mm |
| Outer Diameter of Barrel Body | 219 mm |
| Inner Diameter of Barrel Body | 210 mm |
| Weight | 28 kg |
Material & Construction
| Inner Material | 304 Stainless Steel |
|---|---|
| Outer Material | 304 Stainless Steel |
| Product Material | 304 Stainless Steel |
| Barrel Thickness | 4.5 mm |
| Barrel Lid Thickness | 14 mm |
| Outer Barrel Height | 450 mm |
| Inner Barrel Height | 435 mm |
| Outer Diameter | 219 mm |
| Inner Diameter | 210 mm |
Core Components
| Stainless Steel Barrel Body | 304 Stainless Steel |
|---|---|
| Stainless Steel Barrel Lid | 304 Stainless Steel |

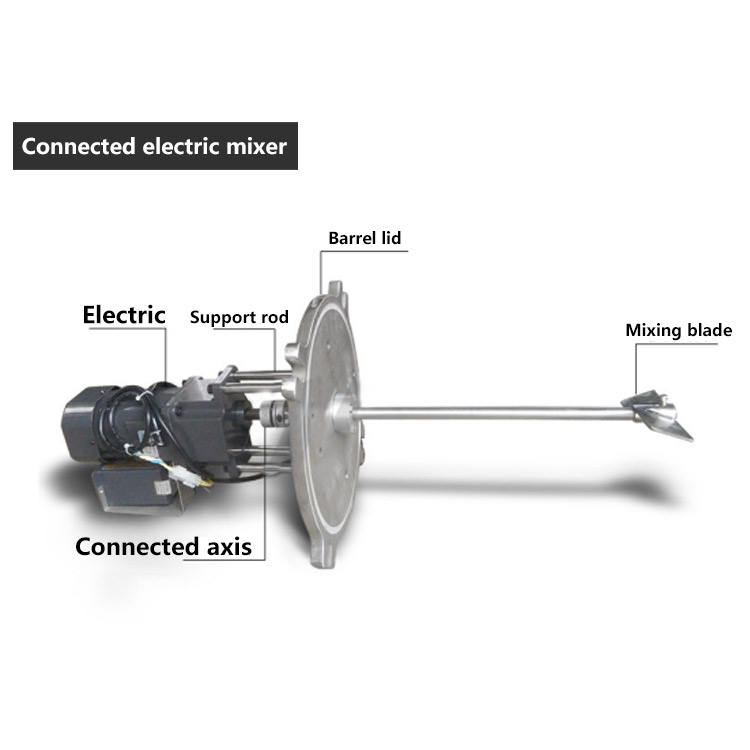

| Pneumatic Agitator | Provided |
Quality & Inspection
| Machinery Test Report | Provided |
|---|---|
| Video Outgoing Inspection | Provided |
| Warranty | 1 Year |
| Key Selling Point | Long Service Life |
Packaging & Delivery
| Selling Units | Single Item |
|---|---|
| Single Package Size | 39 × 39 × 93 cm |
| Single Gross Weight | 28.0 kg |

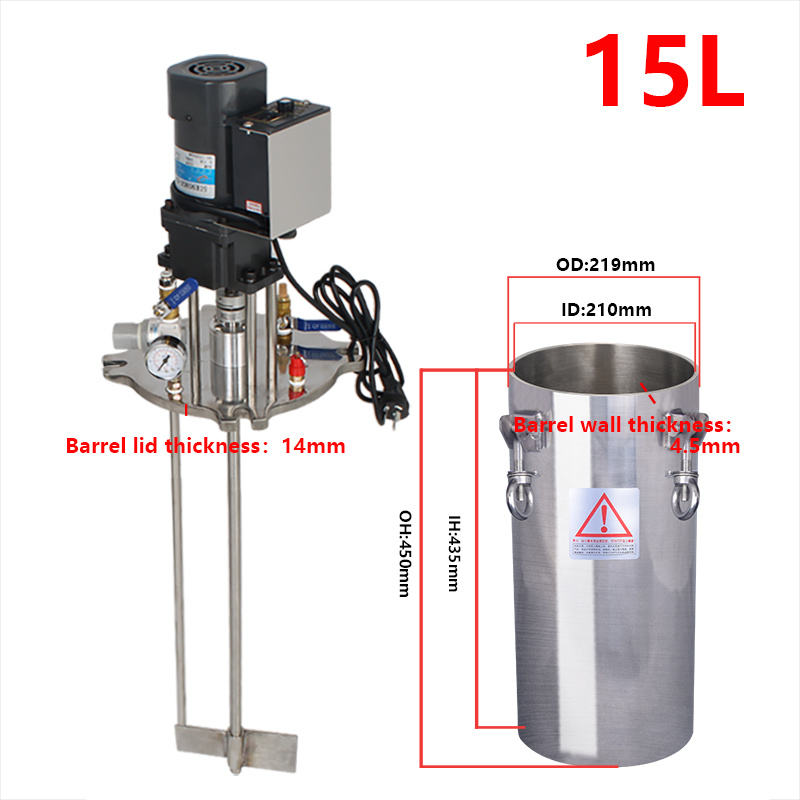

Product Dimensions
| Overall Dimension | 219 × 219 × 780 mm |
|---|---|
| Outer Diameter | 219 mm |
| Inner Diameter | 210 mm |
| Outer Barrel Height | 450 mm |
| Inner Barrel Height | 435 mm |
| Barrel Thickness | 4.5 mm |
| Barrel Lid Thickness | 14 mm |
| Volume | 15 L |
Product Features
- Made from high-quality 304 stainless steel
- 15-liter industrial mixing pressure tank
- Maximum working pressure up to 0.5 MPa
- Working temperature range from -20 to 180 ℃
- Equipped with pneumatic agitator system
- Strong stainless steel barrel body and lid structure
- 4.5 mm barrel thickness for durability
- 14 mm thick pressure-resistant lid design
- Suitable for coating, adhesive and industrial mixing applications
- Long service life and reliable performance
Technical Data Summary
| Parameter | Specification |
|---|---|
| Product Type | Pressure Tank |
| Product Name | Electric Mixing Pressure Drum |
| Material | 304 Stainless Steel |
| Capacity | 15 L |
| Design Pressure | 0.5 MPa |
| Maximum Working Pressure | 0.5 MPa |
| Working Temperature | -20 to 180 ℃ |
| Outer Diameter | 219 mm |
| Inner Diameter | 210 mm |
| Barrel Thickness | 4.5 mm |
| Barrel Lid Thickness | 14 mm |
| Core Component | Pneumatic Agitator |
| Weight | 28 kg |
| Overall Dimensions | 219 × 219 × 780 mm |
| Warranty | 1 Year |
