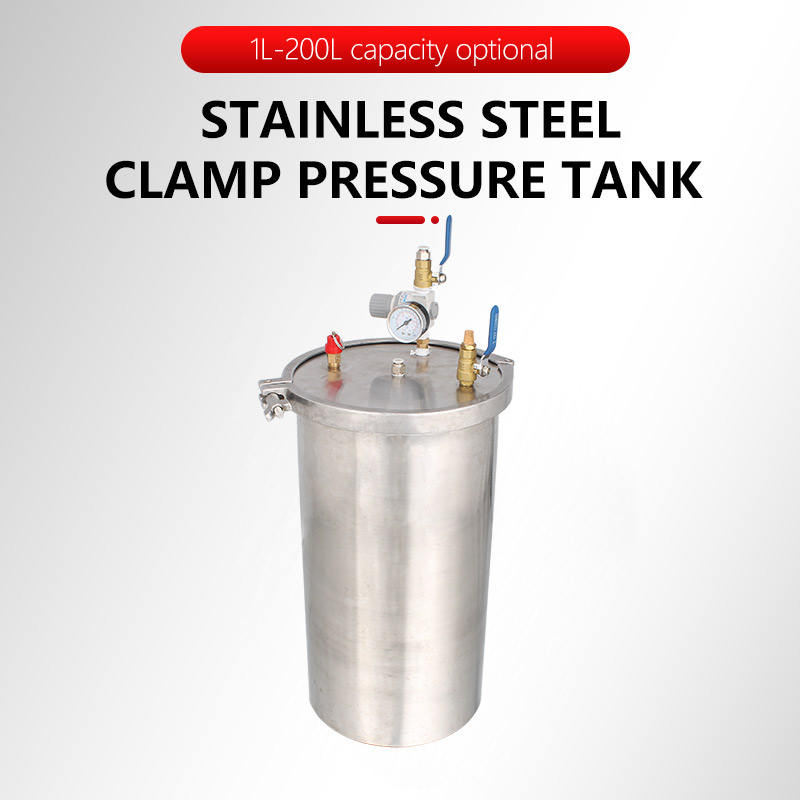

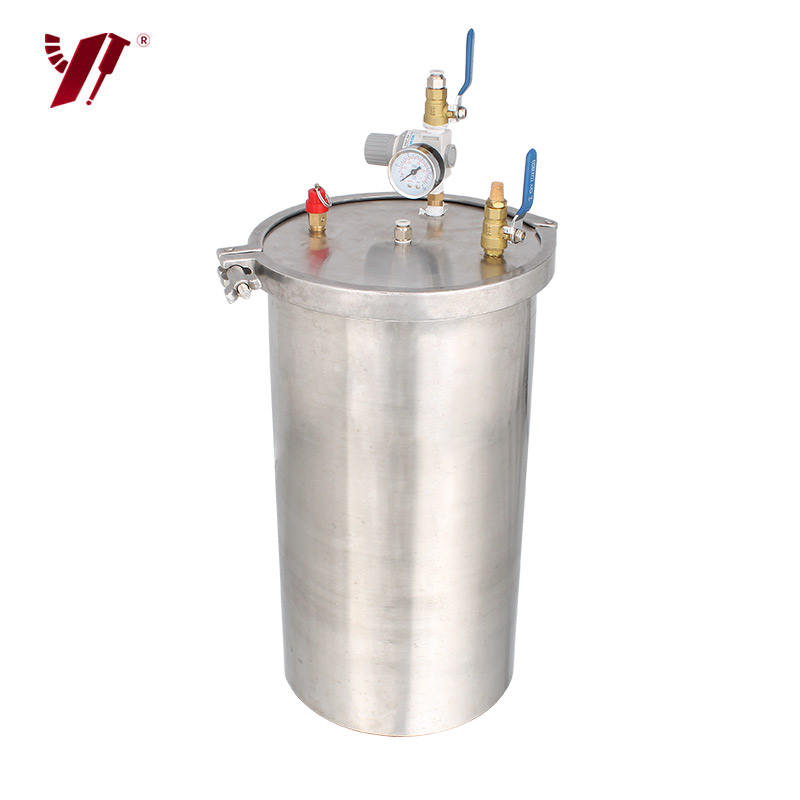

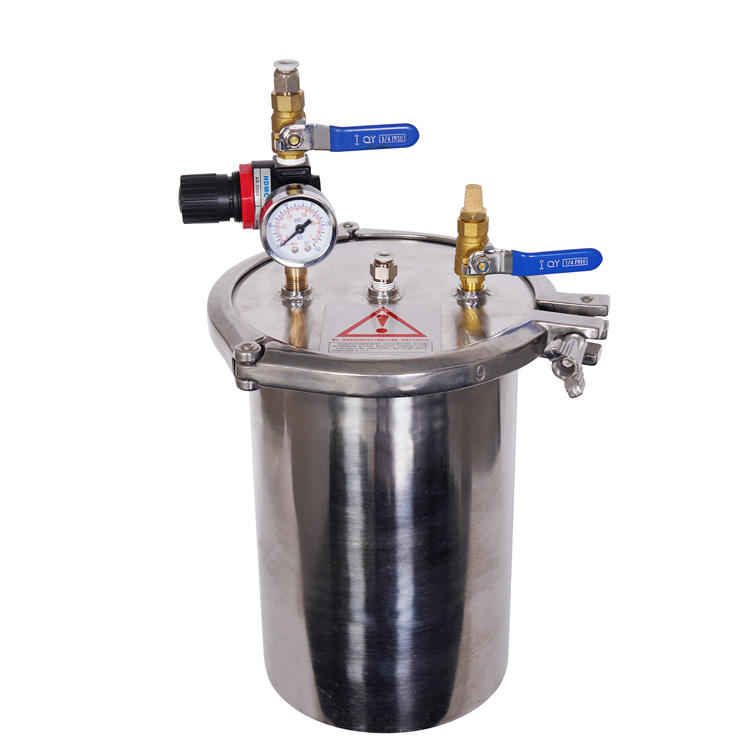

Industrial 1L 304 Stainless Steel Pressure Tank 1 Liter Vessel for Manufacturing Plant & Farm Spraying
1L 304 Stainless Steel Pressure Vessel with Clamps
Product Name: Pressure Vessels with Clamps
Brand: Yakoo | Customize
Place of Origin: Guangdong, China
Product Overview
| Product Name | Pressure Vessels with Clamps |
|---|---|
| Type | Pressure Tank |
| Brand Name | Yakoo | Customize |
| Material | 304 Stainless Steel |
| Volume | 1 L (0.001 m³) |
| Max Working Pressure | 0.3 MPa |
| Design Pressure | 0.3 MPa |
| Working Temperature | -20 to 180 ℃ |
| Weight | 4 kg |
| Overall Dimensions | 108 × 108 × 140 mm |
Technical Specifications
| Design Pressure | 0.3 MPa |
|---|---|
| Maximum Working Pressure | 0.3 MPa |
| Design Standard | 0.3 MPa |
| Working Temperature | -20 to 180 ℃ |
| Volume | 0.001 m³ / 1 L |
| Outer Barrel Height | 108 mm |
| Inner Barrel Height | 102 mm |
| Outer Diameter of Barrel Body | 140 mm |
| Inner Diameter of Barrel Body | 130 mm |
| Weight | 4 kg |
Material & Construction
| Inner Material | 304 Stainless Steel |
|---|---|
| Outer Material | 304 Stainless Steel |
| Product Material | 304 Stainless Steel |
| Barrel Thickness | 3 mm |
| Barrel Lid Thickness | 6 mm |
| Outer Barrel Height | 108 mm |
| Inner Barrel Height | 102 mm |
Core Components
| Stainless Steel Barrel Body | 304 Stainless Steel |
|---|---|
| Stainless Steel Barrel Lid | 304 Stainless Steel |
| Clamp Locking Structure | Provided |
Quality & Inspection
| Machinery Test Report | Provided |
|---|---|
| Video Outgoing Inspection | Provided |
| Warranty | 1 Year |
| Key Selling Point | Long Service Life |
Packaging & Delivery
| Selling Units | Single Item |
|---|---|
| Single Package Size | 21 × 21 × 24 cm |
| Single Gross Weight | 4.0 kg |
Product Dimensions
| Overall Dimension | 108 × 108 × 140 mm |
|---|---|
| Outer Diameter | 140 mm |
| Inner Diameter | 130 mm |
| Outer Barrel Height | 108 mm |
| Inner Barrel Height | 102 mm |
| Barrel Thickness | 3 mm |
| Barrel Lid Thickness | 6 mm |
| Volume | 1 L |
Product Features
- High-quality 304 stainless steel construction
- Compact 1-liter pressure vessel design
- Maximum working pressure up to 0.3 MPa
- Working temperature range from -20 to 180 ℃

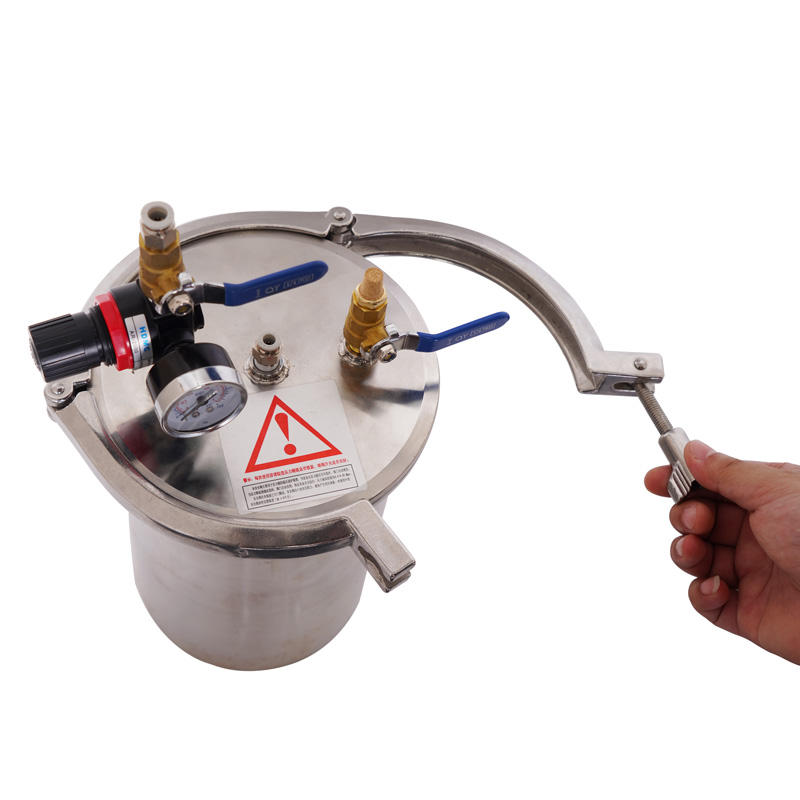

- Clamp-type quick opening structure
- Easy installation and maintenance
- 3 mm stainless steel barrel thickness
- 6 mm stainless steel barrel lid thickness
- Suitable for laboratory and industrial applications
- Long service life and stable performance
Technical Data Summary
| Parameter | Specification |
|---|---|
| Product Type | Pressure Tank |
| Product Name | Pressure Vessels with Clamps |
| Material | 304 Stainless Steel |
| Capacity | 1 L |
| Design Pressure | 0.3 MPa |
| Maximum Working Pressure | 0.3 MPa |
| Working Temperature | -20 to 180 ℃ |
| Outer Diameter | 140 mm |
| Inner Diameter | 130 mm |
| Barrel Thickness | 3 mm |
| Barrel Lid Thickness | 6 mm |
| Core Components | Stainless Steel Barrel Body & Barrel Lid |
| Weight | 4 kg |
| Overall Dimensions | 108 × 108 × 140 mm |
| Warranty | 1 Year |
