40L 120W Stainless Steel 304 Mini Pressure Vessel Electric Mixer SUS 304 High Capacity Sus 304 Stainless Steel Pressure Tank

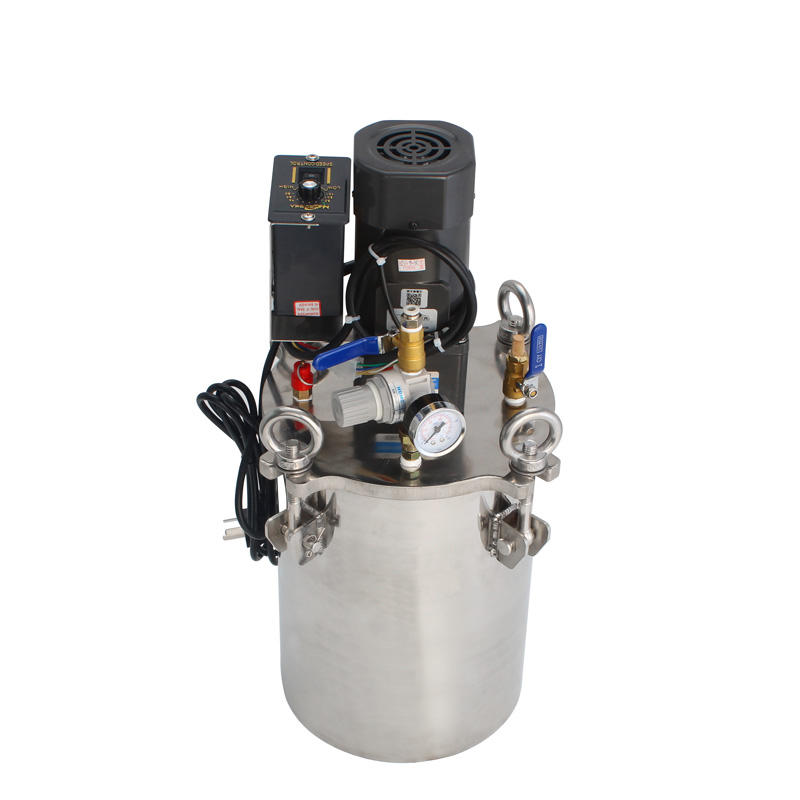

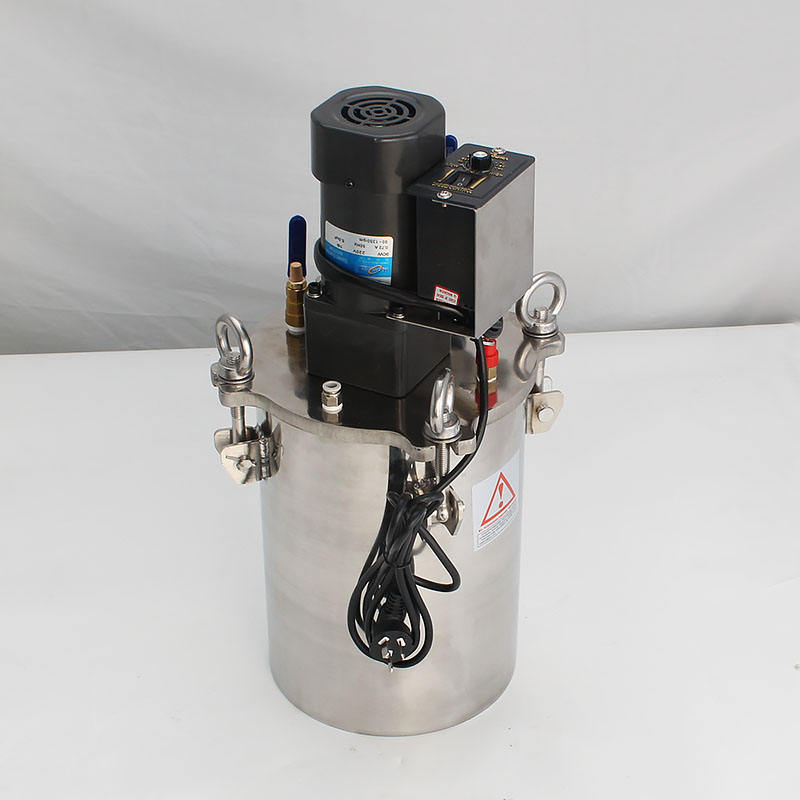

40L Pressure Vessel with Electric Mixer
Product Name: Pressure Vessel with Electric Mixer
Brand: Yakoo | Customize
Place of Origin: Guangdong, China
Product Overview
| Product Name | Pressure Vessel with Electric Mixer |
|---|---|
| Type | Pressure Tank |
| Brand Name | Yakoo | Customize |
| Material | 304 Stainless Steel |
| Volume | 40 L (0.04 m³) |
| Max Working Pressure | 0.5 MPa |
| Design Pressure | 0.5 MPa |
| Working Temperature | -20 to 180 ℃ |
| Weight | 46 kg |
| Overall Dimensions | 325 × 325 × 870 mm |
Technical Specifications
| Design Pressure | 0.5 MPa |
|---|---|
| Maximum Working Pressure | 0.5 MPa |
| Design Standard | 0.5 MPa |
| Working Temperature | -20 to 180 ℃ |
| Volume | 0.04 m³ / 40 L |
| Outer Barrel Height | 540 mm |
| Inner Barrel Height | 520 mm |
| Outer Diameter of Barrel Body | 325 mm |
| Inner Diameter of Barrel Body | 313 mm |
| Weight | 46 kg |
Material & Construction
| Inner Material | 304 Stainless Steel |
|---|---|
| Outer Material | 304 Stainless Steel |
| Product Material | 304 Stainless Steel |
| Barrel Thickness | 6 mm |
| Barrel Lid Thickness | 16 mm |
| Outer Barrel Height | 540 mm |
| Inner Barrel Height | 520 mm |
| Outer Diameter of Barrel Body | 325 mm |
| Inner Diameter of Barrel Body | 313 mm |

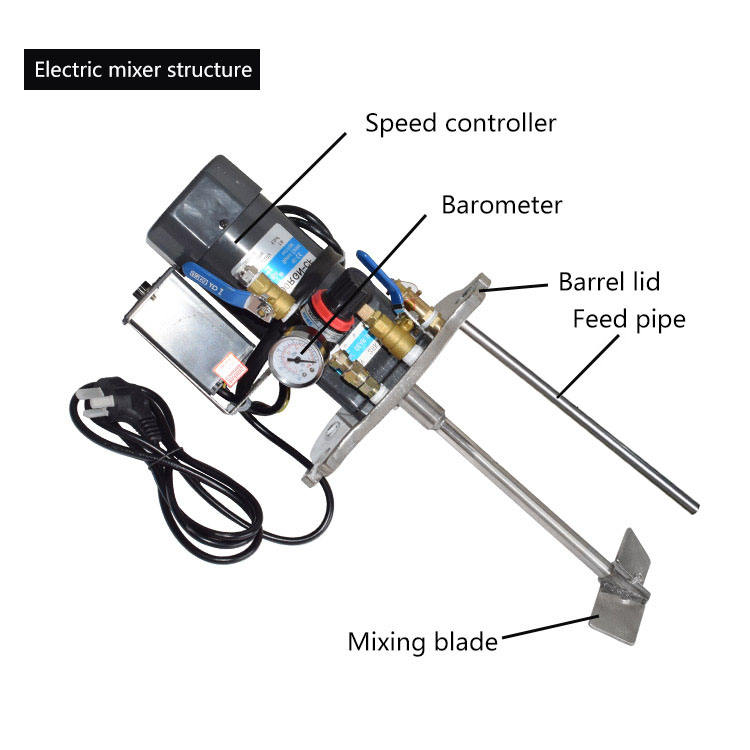

Core Components
| Stainless Steel Barrel Body | 304 Stainless Steel |
|---|---|
| Stainless Steel Barrel Lid | 304 Stainless Steel |
| Pneumatic Agitator | Provided |
Quality & Inspection
| Machinery Test Report | Provided |
|---|---|
| Video Outgoing Inspection | Provided |
| Warranty | 1 Year |
| Key Selling Point | Long Service Life |
Packaging & Delivery
| Selling Units | Single Item |
|---|---|
| Single Package Size | 44 × 44 × 104 cm |
| Single Gross Weight | 46.0 kg |

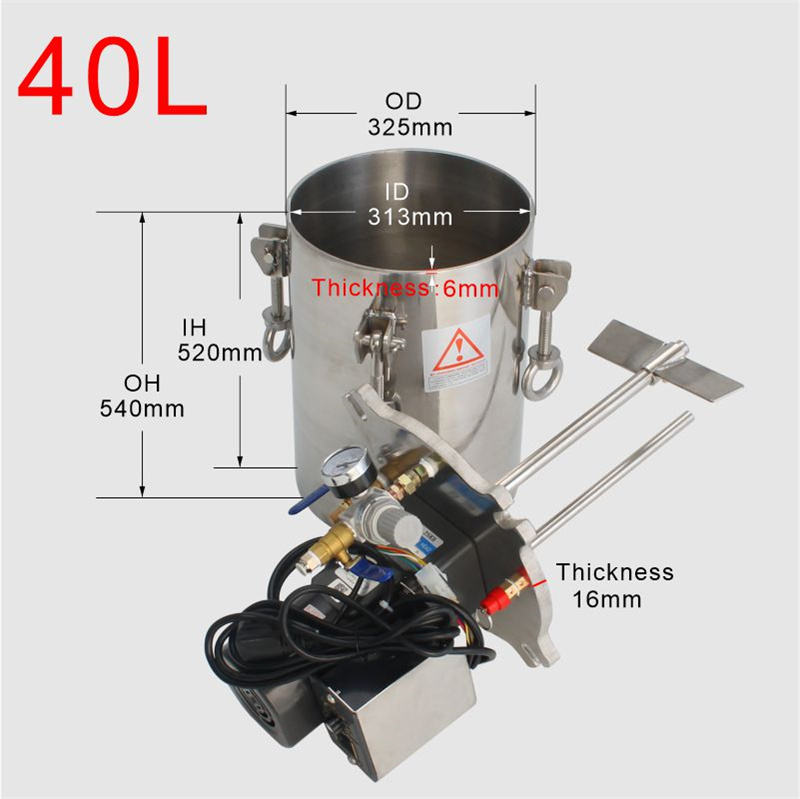

Product Dimensions
| Overall Dimension | 325 × 325 × 870 mm |
|---|---|
| Outer Diameter | 325 mm |
| Inner Diameter | 313 mm |
| Outer Barrel Height | 540 mm |
| Inner Barrel Height | 520 mm |
| Barrel Thickness | 6 mm |
| Barrel Lid Thickness | 16 mm |
| Volume | 40 L |
Product Features
- Made from high-quality 304 stainless steel
- 40-liter pressure vessel capacity
- Maximum working pressure up to 0.5 MPa
- Working temperature range from -20 to 180 ℃
- Equipped with pneumatic agitator system
- Thickened stainless steel barrel body and lid
- 6 mm barrel wall thickness
- 16 mm barrel lid thickness
- Long service life and reliable performance
- Suitable for customized industrial mixing applications
Technical Data Summary
| Parameter | Specification |
|---|---|
| Product Type | Pressure Tank |
| Product Name | Pressure Vessel with Electric Mixer |
| Material | 304 Stainless Steel |
| Capacity | 40 L |
| Design Pressure | 0.5 MPa |
| Maximum Working Pressure | 0.5 MPa |
| Working Temperature | -20 to 180 ℃ |
| Outer Diameter | 325 mm |
| Inner Diameter | 313 mm |
| Outer Barrel Height | 540 mm |
| Inner Barrel Height | 520 mm |
| Barrel Thickness | 6 mm |
| Barrel Lid Thickness | 16 mm |
| Core Component | Pneumatic Agitator |
| Weight | 46 kg |
| Overall Dimensions | 325 × 325 × 870 mm |
| Warranty | 1 Year |
