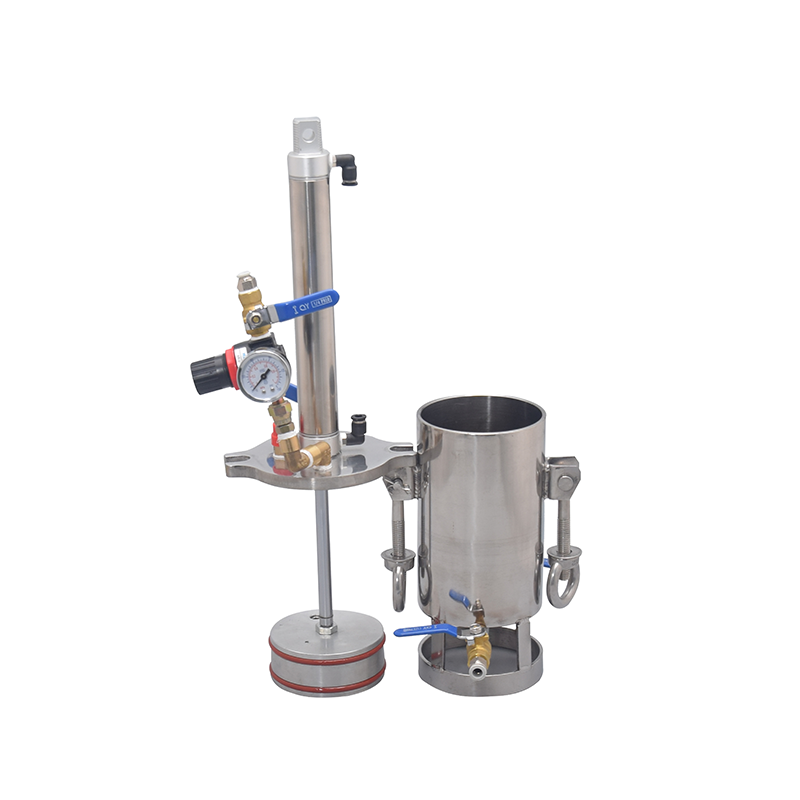

1L Factory Direct 304 Stainless Steel Small Pressure Vessel Chemical Memory with Piston and Cylinder
1L Electric Mixing Pressure Drum
Product Name: Electric Mixing Pressure Drum
Brand: Yakoo | Customize
Place of Origin: Guangdong, China
Product Overview
| Product Name | Electric Mixing Pressure Drum |
|---|---|
| Type | Pressure Tank |
| Brand Name | Yakoo | Customize |
| Material | 304 Stainless Steel |
| Volume | 1 L (0.001 m³) |
| Max Working Pressure | 0.8 MPa |
| Design Pressure | 0.8 MPa |
| Working Temperature | -20 to 180 ℃ |
| Weight | 10 kg |
| Overall Dimensions | 108 × 108 × 170 mm |
Technical Specifications
| Design Pressure | 0.8 MPa |
|---|---|
| Maximum Working Pressure | 0.8 MPa |
| Design Standard | 0.8 MPa |
| Working Temperature | -20 to 180 ℃ |
| Volume | 0.001 m³ / 1 L |
| Cylinder Specifications | 32S × 200 |
| Outer Barrel Height | 170 mm |
| Inner Barrel Height | 160 mm |
| Weight | 10 kg |
Material & Construction
| Inner Material | 304 Stainless Steel |
|---|---|
| Outer Material | 304 Stainless Steel |
| Product Material | 304 Stainless Steel |
| Barrel Thickness | 4 mm |
| Barrel Lid Thickness | 12 mm |
| Outer Barrel Height | 170 mm |
| Inner Barrel Height | 160 mm |
| Material of Piston | Aluminium |
Core Components
| Stainless Steel Barrel Body | 304 Stainless Steel |
|---|---|
| Stainless Steel Barrel Lid | 304 Stainless Steel |
| Pneumatic Agitator | Provided |
Quality & Inspection
| Machinery Test Report | Provided |
|---|---|
| Video Outgoing Inspection | Provided |
| Warranty | 1 Year |
| Key Selling Point | Long Service Life |
Packaging & Delivery
| Selling Units | Single Item |
|---|---|
| Single Package Size | 21 × 21 × 27 cm |
| Single Gross Weight | 10.0 kg |
Product Dimensions
| Overall Dimension | 108 × 108 × 170 mm |
|---|---|
| Outer Barrel Height | 170 mm |
| Inner Barrel Height | 160 mm |
| Barrel Thickness | 4 mm |
| Barrel Lid Thickness | 12 mm |
| Volume | 1 L |
Product Features
- Made from high-quality 304 stainless steel
- Compact 1-liter pressure tank design
- Maximum working pressure up to 0.8 MPa
- Working temperature range from -20 to 180 ℃
- Equipped with pneumatic agitator
- Strong stainless steel barrel body and lid
- 4 mm barrel thickness
- 12 mm barrel lid thickness
- Aluminium piston material
- Long service life and reliable performance
- Suitable for precision mixing and pressure applications
Technical Data Summary
| Parameter | Specification |
|---|---|
| Product Type | Pressure Tank |
| Product Name | Electric Mixing Pressure Drum |
| Material | 304 Stainless Steel |
| Capacity | 1 L |
| Design Pressure | 0.8 MPa |
| Maximum Working Pressure | 0.8 MPa |
| Working Temperature | -20 to 180 ℃ |
| Cylinder Specification | 32S × 200 |
| Piston Material | Aluminium |
| Barrel Thickness | 4 mm |
| Barrel Lid Thickness | 12 mm |
| Core Component | Pneumatic Agitator |
| Weight | 10 kg |
| Overall Dimensions | 108 × 108 × 170 mm |
| Warranty | 1 Year |
