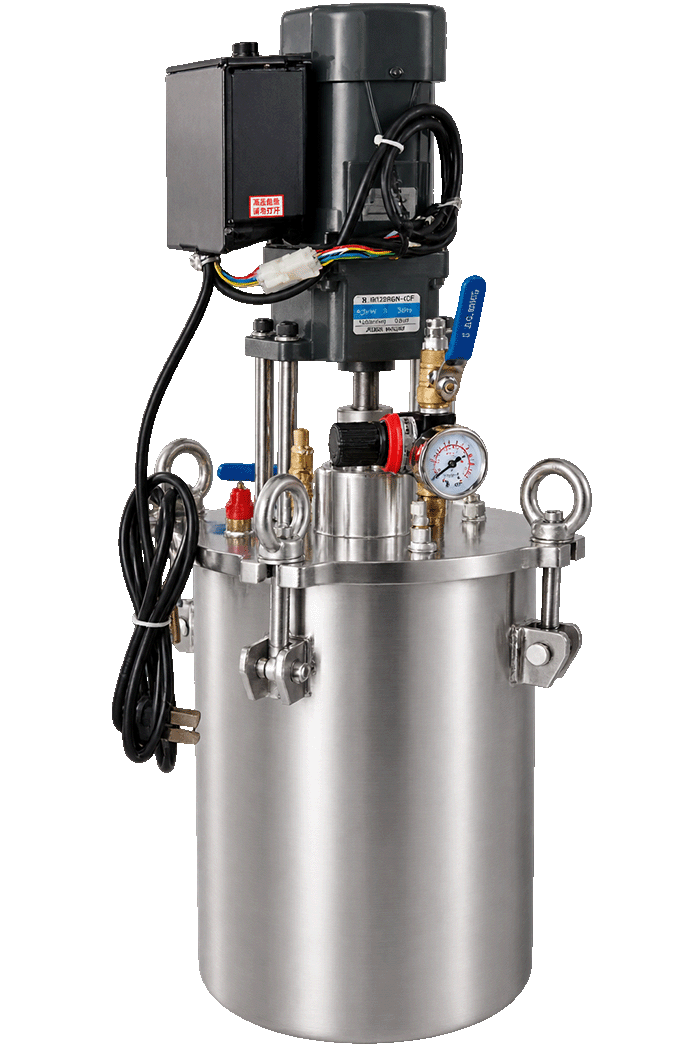

90W 5L Electric Mixer 304 Stainless Steel Pressure Vessel Manufacturers’ Sale of Processing Pressure Vessels

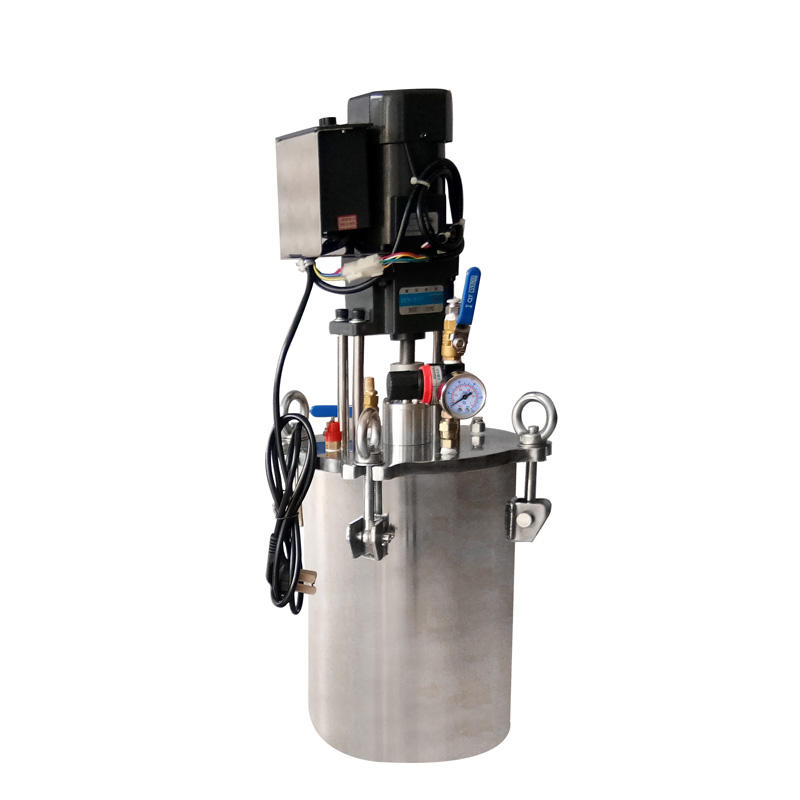

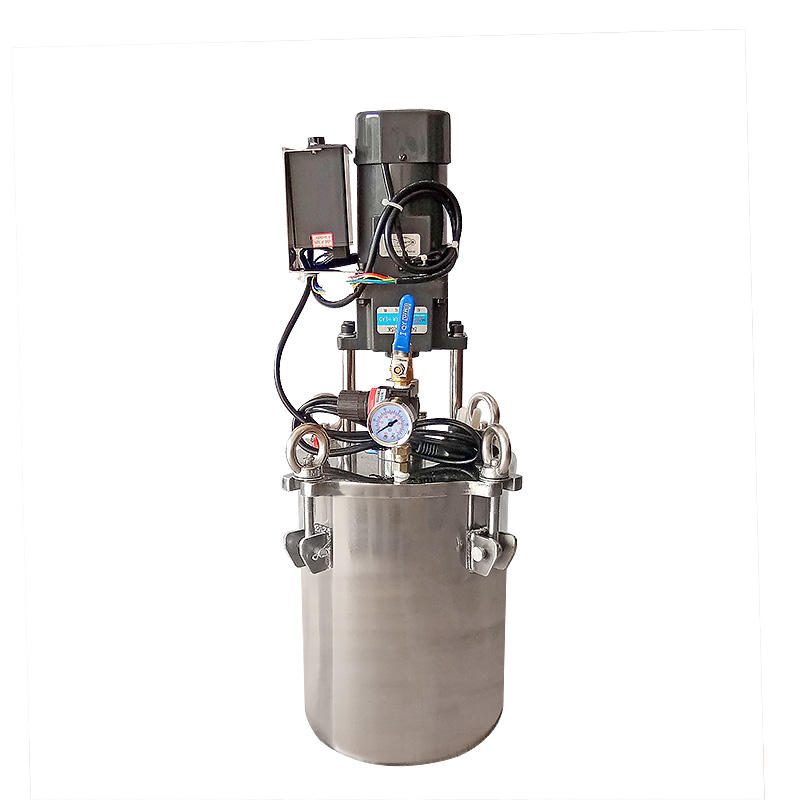

5L Pressure Vessel with Electric Mixer
Product Name: Pressure Vessel with Electric Mixer
Brand: Yakoo | Customize
Place of Origin: Guangdong, China
Product Overview
| Product Name | Pressure Vessel with Electric Mixer |
|---|---|
| Type | Pressure Tank |
| Brand Name | Yakoo | Customize |
| Material | 304 Stainless Steel |
| Volume | 5 L (0.005 m³) |
| Max Working Pressure | 0.5 MPa |
| Design Pressure | 0.5 MPa |
| Working Temperature | -20 to 180 ℃ |
| Weight | 17 kg |
| Overall Dimensions | 159 × 159 × 630 mm |
Technical Specifications
| Design Pressure | 0.5 MPa |
|---|---|
| Maximum Working Pressure | 0.5 MPa |
| Design Standard | 0.5 MPa |
| Working Temperature | -20 to 180 ℃ |
| Volume | 0.005 m³ / 5 L |
| Outer Barrel Height | 300 mm |
| Inner Barrel Height | 285 mm |
| Outer Diameter | 159 mm |
| Inner Diameter | 151 mm |
| Weight | 17 kg |
Material & Construction
| Inner Material | 304 Stainless Steel |
|---|---|
| Outer Material | 304 Stainless Steel |
| Product Material | 304 Stainless Steel |
| Barrel Thickness | 3.5 mm |
| Barrel Lid Thickness | 12 mm |
| Outer Barrel Height | 300 mm |
| Inner Barrel Height | 285 mm |
| Outer Diameter of Barrel Body | 159 mm |
| Inner Diameter of Barrel Body | 151 mm |
Core Components
| Stainless Steel Barrel Body | 304 Stainless Steel |
|---|---|
| Stainless Steel Barrel Lid | 304 Stainless Steel |

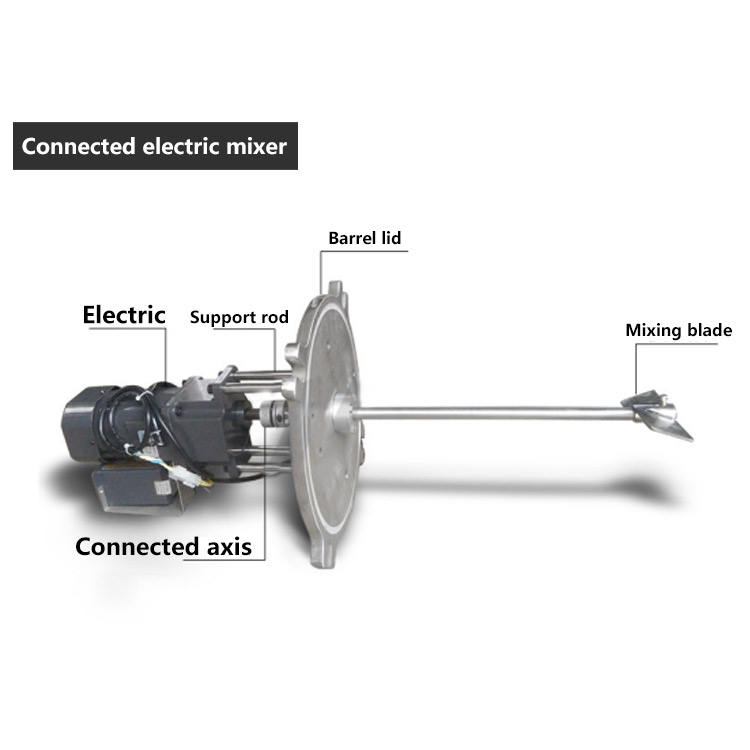

| Electric Mixer | Provided |
Quality & Inspection
| Machinery Test Report | Provided |
|---|---|
| Video Outgoing Inspection | Provided |
| Warranty | 1 Year |
| Key Selling Point | Long Service Life |
Packaging & Delivery
| Selling Units | Single Item |
|---|---|
| Single Package Size | 23 × 23 × 72 cm |
| Single Gross Weight | 17.0 kg |

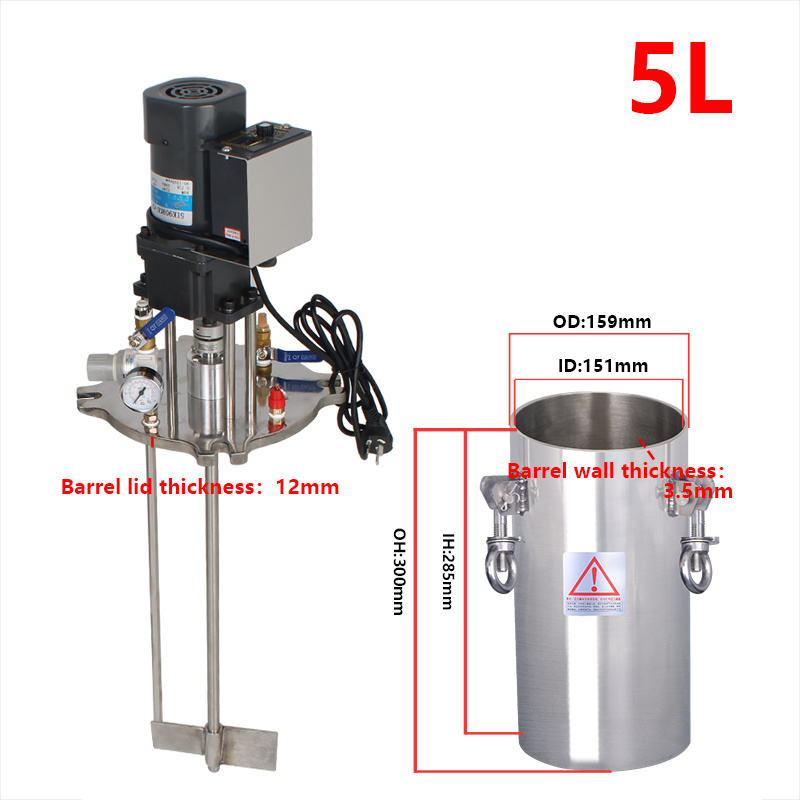

Product Dimensions
| Overall Dimension | 159 × 159 × 630 mm |
|---|---|
| Outer Diameter | 159 mm |
| Inner Diameter | 151 mm |
| Outer Barrel Height | 300 mm |
| Inner Barrel Height | 285 mm |
| Barrel Thickness | 3.5 mm |
| Barrel Lid Thickness | 12 mm |
| Volume | 5 L |
Product Features
- Made from durable 304 stainless steel
- Compact 5-liter pressure vessel design
- Maximum working pressure up to 0.5 MPa
- Working temperature range from -20 to 180 ℃
- Equipped with an electric mixer
- 304 stainless steel barrel body and barrel lid
- 3.5 mm barrel wall thickness
- 12 mm barrel lid thickness
- Long service life

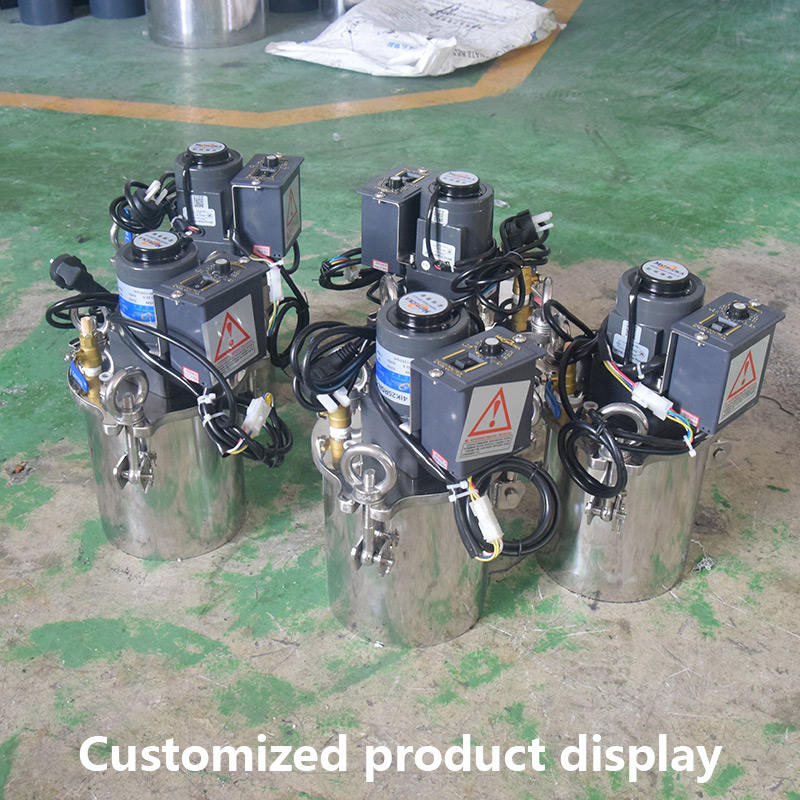

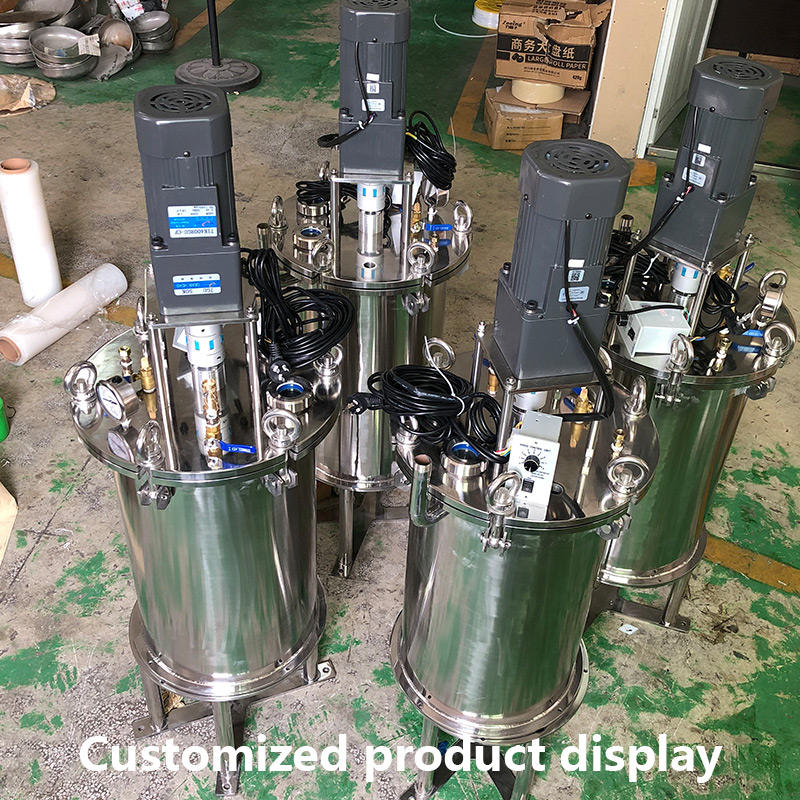

- Suitable for customized industrial applications
Technical Data Summary
| Parameter | Specification |
|---|---|
| Product Type | Pressure Tank |
| Product Name | Pressure Vessel with Electric Mixer |
| Material | 304 Stainless Steel |
| Capacity | 5 L |
| Design Pressure | 0.5 MPa |
| Maximum Working Pressure | 0.5 MPa |
| Working Temperature | -20 to 180 ℃ |
| Outer Diameter | 159 mm |
| Inner Diameter | 151 mm |
| Outer Barrel Height | 300 mm |
| Inner Barrel Height | 285 mm |
| Barrel Thickness | 3.5 mm |
| Barrel Lid Thickness | 12 mm |
| Core Component | Electric Mixer |
| Weight | 17 kg |
| Overall Dimensions | 159 × 159 × 630 mm |
| Warranty | 1 Year |
