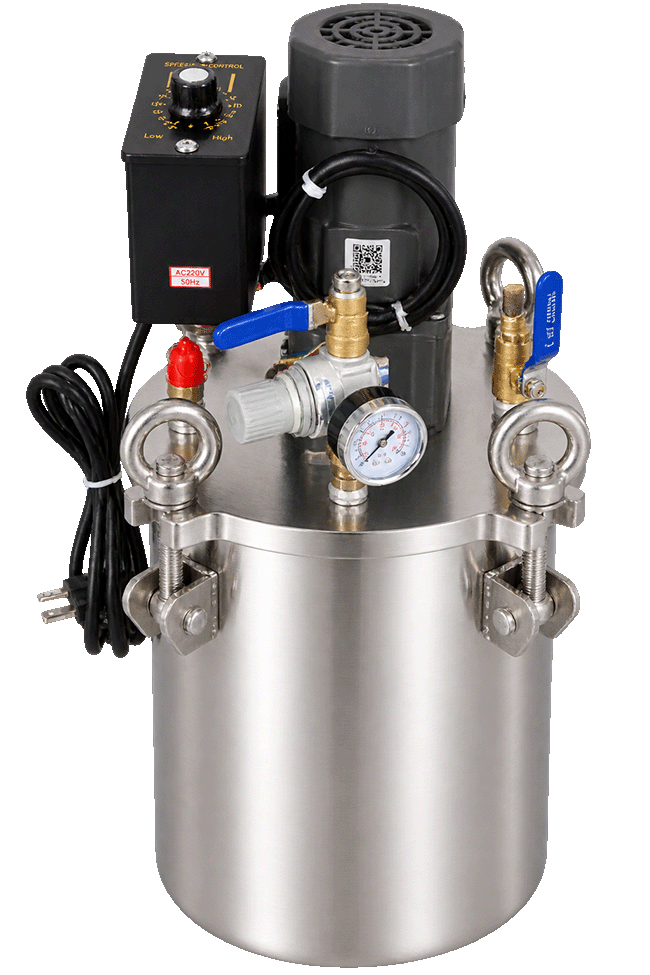

Factory Direct 10L Stainless Steel Pressure Vessel 304 Small 10 Liter with Piston and Cylinder for Manufacturing Plants Farms
Electric Mixing Pressure Drum
Product Name: Electric Mixing Pressure Drum
Brand: Yakoo | Customize
Place of Origin: Guangdong, China
Product Overview
| Product Name | Electric Mixing Pressure Drum |
|---|---|
| Type | Pressure Tank |
| Brand Name | Yakoo | Customize |
| Material | 304 Stainless Steel |
| Volume | 10 L (0.01 m³) |
| Max Working Pressure | 0.8 MPa |
| Design Pressure | 0.8 MPa |
| Working Temperature | -20 to 180 ℃ |
| Weight | 22 kg |
| Dimensions (L × W × H) | 219 × 219 × 330 mm |
Technical Specifications
| Design Pressure | 0.8 MPa |
|---|---|
| Max Working Pressure | 0.8 MPa |
| Design Standard | 0.8 MPa |
| Working Temperature | -20 to 180 ℃ |
| Volume | 0.01 m³ / 10 L |
| Weight | 22 kg |
| Cylinder Specifications | 32S × 300 |
Material Specifications
| Inner Material | 304 Stainless Steel |
|---|---|
| Outer Material | 304 Stainless Steel |
| Product Material | 304 Stainless Steel |
| Barrel Thickness | 4 mm |
| Barrel Lid Thickness | 14 mm |
| Outer Barrel Height | 330 mm |
| Inner Barrel Height | 280 mm |
| Material of Piston | Aluminium |
Core Components
| Stainless Steel Barrel Body | 304 Stainless Steel |
|---|---|
| Stainless Steel Barrel Lid | 304 Stainless Steel |
| Pneumatic Agitator | Provided |
Quality & Certification
| Machinery Test Report | Provided |
|---|---|
| Video Outgoing-Inspection | Provided |
| Warranty | 1 Year |
| Key Selling Points | Long Service Life |
Packaging & Delivery
| Selling Units | Single Item |
|---|---|
| Single Package Size | 32 × 32 × 43 cm |
| Single Gross Weight | 22.0 kg |
Product Dimensions
| Overall Dimension | 219 × 219 × 330 mm |
|---|---|
| Outer Barrel Height | 330 mm |
| Inner Barrel Height | 280 mm |
| Barrel Thickness | 4 mm |
| Barrel Lid Thickness | 14 mm |
| Volume | 10 L |
Product Features
- 304 stainless steel construction
- Compact 10-liter capacity
- Maximum working pressure up to 0.8 MPa
- Working temperature range from -20 to 180 ℃
- Equipped with a pneumatic agitator
- Durable stainless steel barrel body and lid
- Long service life
- Suitable for customized industrial applications
Technical Data Summary
| Parameter | Specification |
|---|---|
| Product Type | Pressure Tank |
| Product Name | Electric Mixing Pressure Drum |
| Material | 304 Stainless Steel |
| Capacity | 10 L |
| Design Pressure | 0.8 MPa |
| Maximum Working Pressure | 0.8 MPa |
| Working Temperature | -20 to 180 ℃ |
| Cylinder Specifications | 32S × 300 |
| Barrel Thickness | 4 mm |
| Barrel Lid Thickness | 14 mm |
| Piston Material | Aluminium |
| Weight | 22 kg |
| Overall Dimensions | 219 × 219 × 330 mm |
| Warranty | 1 Year |
