In industrial coating processes, a stable material supply is essential for achieving uniform surface quality, consistent film thickness, and efficient production. A Coating Pressure Tank is designed to store coating materials and continuously deliver them to spray guns, coating valves, dispensing equipment, or automated production systems under controlled pressure.

Compared with small gravity cups or open material containers, a pressure tank can support longer production cycles and provide more consistent fluid delivery. It is widely used for paints, protective coatings, release agents, primers, adhesives, inks, resins, and other industrial liquids.

For manufacturers that require continuous coating or spraying, choosing the right Coating Pressure Tank can improve production stability while reducing frequent material refilling.

What Is a Coating Pressure Tank?

A Coating Pressure Tank, sometimes called a coating pressure pot or paint pressure tank, is a sealed container used to feed coating material to downstream application equipment.

Compressed air enters the tank through a pressure regulator. The controlled pressure pushes the coating through a fluid outlet and delivery hose toward the spray gun or automatic coating system.

A typical industrial coating pressure tank may include:

• Stainless steel tank body
• Stainless steel lid
• Pressure regulator
• Pressure gauge
• Safety relief valve
• Compressed air inlet
• Fluid outlet
• Material delivery pipe
• Sealing components
• Optional pneumatic or electric agitator

Different tank capacities and configurations can be selected according to coating viscosity, consumption rate, operating pressure, and production requirements.

Why Use a Coating Pressure Tank?

Consistent coating quality depends on stable material delivery.

When the fluid pressure changes significantly during spraying or dispensing, the material flow may become unstable. This can affect coating thickness, spray pattern, surface finish, and material consumption.

A properly configured Pressure Tank for Coating provides controlled fluid feeding and can help maintain more consistent operating conditions.

The main advantages include:

• Continuous coating material supply
• Stable fluid feeding
• Reduced refill frequency
• Better support for automated spraying
• Adjustable operating pressure
• Cleaner material storage
• Improved production efficiency
• Easy integration with coating equipment

For continuous industrial production, a larger tank also allows operators to spend less time stopping equipment to refill coating material.

Stainless Steel Coating Pressure Tank

Stainless steel is widely used for industrial coating tanks because it offers good durability, mechanical strength, corrosion resistance, and ease of maintenance.

A 304 Stainless Steel Coating Pressure Tank can be suitable for many common industrial liquids when material compatibility has been confirmed.

Typical materials may include:

• Industrial coatings
• Water-based coatings
• Paint
• Primer
• Protective coating
• Release agent
• Ink
• Resin
• Adhesive
• Lubricating fluids

The smooth stainless steel internal surface also makes the tank easier to clean when changing coating materials or performing routine maintenance.

Because coating formulations vary, buyers should confirm compatibility with the tank body, seals, hoses, fittings, and other wetted components before use.

Common Applications of Coating Pressure Tanks

A Coating Supply Pressure Tank can be used in a wide variety of manufacturing industries.

Industrial Spray Coating

Pressure tanks can continuously supply coating material to manual or automatic spray guns, making them suitable for larger workpieces and extended spraying operations.

Automotive Components

Coating pressure tanks may be used for applying primers, protective coatings, functional liquids, and surface treatment materials to automotive parts.

Electronics Manufacturing

Certain electronic components require protective or conformal coatings. Stable fluid delivery can support consistent coating processes.

Metal Processing

Metal components often require protective coatings, anti-corrosion materials, release agents, or finishing liquids.

Furniture and Wood Products

Pressure-fed coating systems can also be used for certain paint, finishing, and protective coating applications.

Other applications include machinery, industrial equipment, plastic parts, household appliances, packaging, and general manufacturing.

Choosing the Right Coating Pressure Tank Capacity

Coating pressure tanks are available in multiple capacities depending on production requirements.

Common options include:

2L, 4L, 5L, 10L, 15L, 20L, 30L, 40L, and 50L.

A compact 5L Coating Pressure Tank can be suitable for smaller production batches, laboratories, sample production, or applications where coating materials need to be changed frequently.

Larger tanks are useful for continuous spraying and higher material consumption because they reduce the frequency of refilling.

When choosing capacity, consider:

• Daily coating consumption
• Production time per batch
• Material viscosity
• Spray or dispensing flow rate
• Refill frequency
• Available installation space
• Material storage requirements

The correct capacity should provide sufficient production time without keeping unnecessary quantities of coating material inside the tank.

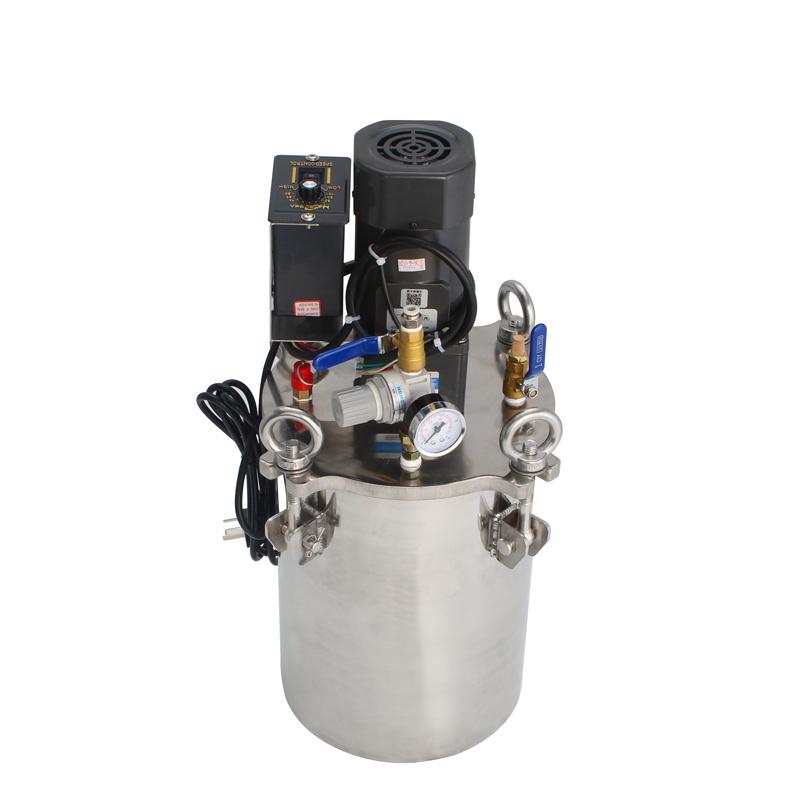

Coating Pressure Tank with Agitator

Many coatings contain pigments, fillers, or solid particles that can settle if the material remains stationary.

In these applications, a Coating Pressure Tank with Agitator can help keep the material uniform during production.

Available mixing configurations may include:

• Pneumatic agitator
• Electric agitator
• Adjustable mixing speed
• Customized mixing shaft
• Customized mixing blade

A pneumatic agitator is commonly used in industrial coating systems because compressed air is often already available near the production equipment.

Continuous or periodic agitation can help reduce sedimentation and maintain more consistent coating composition.

For materials that remain homogeneous without mixing, a standard pressure tank without an agitator may be sufficient.

Working Pressure and Coating Viscosity

The required operating pressure depends largely on the properties of the coating material and the configuration of the fluid delivery system.

Important factors include:

• Coating viscosity
• Fluid hose diameter
• Hose length
• Outlet size
• Spray gun type
• Nozzle specification
• Required flow rate
• Production speed

Low-viscosity coatings generally flow more easily, while thicker materials may require larger fluid passages or different feeding configurations.

Instead of simply increasing pressure, the entire fluid path should be matched to the coating characteristics.

The tank must always be operated within its specified maximum working pressure.

Custom Coating Pressure Tank Solutions

Different coating machines have different installation, connection, and fluid handling requirements. Customization can therefore make the tank easier to integrate into an existing production line.

A professional Coating Pressure Tank Manufacturer can customize:

• Tank capacity
• Tank diameter and height
• Fluid inlet and outlet size
• Thread specifications
• Number of fluid outlets
• Pressure regulator
• Pressure gauge
• Safety valve
• Pneumatic or electric agitator
• Mixing shaft and blade
• Mounting brackets
• Lid structure
• OEM branding

Before ordering, customers should provide information about coating type, viscosity, required capacity, operating pressure, flow rate, connection size, and application equipment.

Why Choose Yakoo Coating Pressure Tanks?

Yakoo provides stainless steel pressure tanks for coating, spraying, adhesive dispensing, and industrial fluid handling applications.

Our Coating Pressure Tanks are available in different capacities and can be customized according to specific production requirements. Options include customized tank dimensions, fluid connections, pressure control components, outlet configurations, and agitation systems.

For equipment manufacturers, Yakoo also supports OEM pressure tank production based on installation dimensions, drawings, and connection specifications.

Conclusion

A reliable Coating Pressure Tank provides a practical solution for continuously supplying coating materials to industrial spraying and dispensing equipment. Stable pressure, suitable tank capacity, correct fluid connections, and proper mixing can help improve coating consistency and reduce production interruptions.

When selecting a tank, buyers should consider coating viscosity, capacity, working pressure, outlet size, material compatibility, hose configuration, and agitation requirements.

Whether you need a Stainless Steel Coating Pressure Tank, Paint Pressure Tank, Coating Supply Tank, or a customized pressure feeding solution, Yakoo offers flexible configurations for a wide range of industrial coating applications.
