Precision dispensing is increasingly important in electronics, automotive components, batteries, LED lighting, medical devices, optical products, and automated assembly. When only a small and controlled amount of adhesive, coating, lubricant, resin, or other liquid is required, the stability of the material supply directly affects dispensing performance. A Precision Dispensing Pressure Tank provides a reliable source of fluid under controlled pressure, helping downstream dispensing equipment operate more consistently.

Compared with feeding material directly from bottles or open containers, a pressure tank can provide a larger material reserve, stable supply conditions, and easier integration with automatic dispensing systems. It is especially useful for production processes where repeatability, continuous operation, and controlled fluid delivery are required.

What Is a Precision Dispensing Pressure Tank?

A Precision Dispensing Pressure Tank is a sealed container designed to store industrial fluids and deliver them to dispensing valves through regulated pressure.

Compressed air enters the tank through a pressure regulator. The controlled pressure acts on the liquid inside the vessel and moves it through the material outlet, hose, and dispensing valve.

The tank does not determine dispensing accuracy by itself. Instead, it provides stable upstream material feeding so that the dispensing valve, controller, metering system, or robot can perform more consistently.

A typical system may include:

• Stainless steel tank body
• Stainless steel lid
• Precision pressure regulator
• Pressure gauge
• Safety relief valve
• Air inlet
• Fluid outlet
• Material delivery pipe
• Sealing components
• Optional agitator

The configuration can be adjusted according to fluid viscosity, flow rate, dispensing equipment, and production requirements.

Why Stable Pressure Matters in Precision Dispensing

In a precision dispensing process, even small changes in material feeding conditions can influence the final result.

If pressure fluctuates, the amount of fluid delivered through the dispensing valve may also change. Depending on the application, this may cause inconsistent dots, uneven glue lines, variable coating thickness, excessive material use, or insufficient bonding.

A well-configured Precision Pressure Tank for Dispensing helps provide a more stable fluid supply.

This is particularly useful for applications requiring:

• Small dispensing volumes
• Repeated adhesive dots
• Consistent glue beads
• Controlled coating
• Automated fluid application
• Continuous production

For demanding dispensing applications, the tank should be considered as part of the complete fluid control system rather than as a simple storage container.

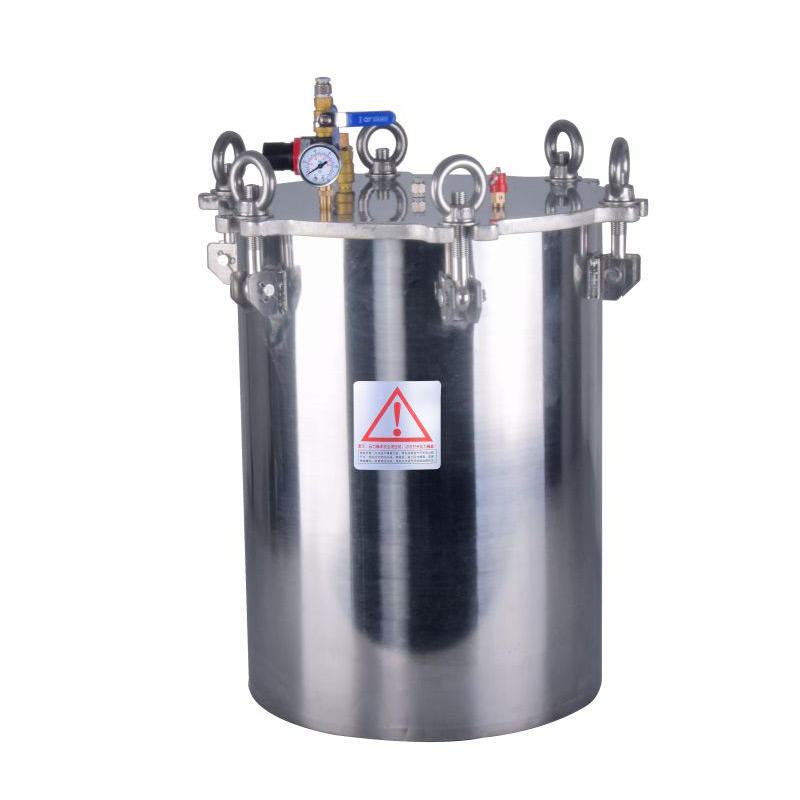

Stainless Steel Precision Dispensing Tank

304 stainless steel is widely used for industrial pressure tanks because of its strength, durability, corrosion resistance, and easy maintenance.

A Stainless Steel Precision Dispensing Pressure Tank can be suitable for many types of industrial fluids when material compatibility is confirmed.

Common materials may include:

• Adhesives
• UV glue
• Epoxy
• Silicone
• Sealants
• Coatings
• Resins
• Lubricants
• Oils
• Inks

The smooth stainless steel surface also makes cleaning easier when changing materials.

Because different chemicals can react differently with tank materials and sealing components, users should verify compatibility with the tank body, O-rings, hoses, fittings, and dispensing valves before operation.

Applications of Precision Dispensing Pressure Tanks

Precision dispensing tanks are used in many industries where controlled liquid application is required.

Electronics Manufacturing

Electronic assembly frequently requires small amounts of adhesive or coating material. Applications include PCB bonding, component fixing, sensor assembly, encapsulation, and protective coating.

Automotive Electronics

Precision dispensing can be used for automotive sensors, lighting modules, control units, cameras, and other electronic components.

LED Manufacturing

Adhesives, silicone, and thermal materials may require controlled dispensing during LED assembly, sealing, and thermal management processes.

Battery Production

Pressure tanks can supply materials for bonding, insulation, sealing, and thermal management in battery manufacturing.

Optical and Precision Components

Optical assembly may require accurately controlled adhesive delivery for lenses, displays, sensors, and precision components.

The tank can also be integrated into robotic dispensing cells and other automated production systems.

Selecting the Right Tank Capacity

Precision dispensing tanks can be produced in different capacities depending on production volume.

Common options include:

2L, 4L, 5L, 10L, 15L, 20L, 30L, 40L, and 50L.

A compact 5L Precision Dispensing Pressure Tank is often suitable for lower material consumption, compact automatic equipment, laboratory production, or applications where materials are changed frequently.

Larger tanks can support continuous production and reduce refill frequency.

When choosing capacity, consider:

• Daily fluid consumption
• Material viscosity
• Production cycle
• Refill frequency
• Material working life
• Available installation space
• Cleaning requirements

The goal is to choose a tank large enough for efficient production without unnecessarily increasing stored material volume.

Pressure Control and Fluid Viscosity

Material viscosity has an important influence on pressure tank performance.

Low-viscosity liquids usually flow easily through smaller fluid lines and may require relatively low pressure. More viscous adhesives and sealants can require larger fluid passages, shorter hoses, or different feeding configurations.

Important factors include:

• Material viscosity
• Hose internal diameter
• Hose length
• Fluid outlet diameter
• Dispensing valve type
• Required flow rate
• Operating pressure

For precision applications, fine pressure adjustment can be particularly useful because excessive pressure may make very small dispensing volumes more difficult to control.

The tank must always be operated within its specified working pressure.

Precision Dispensing Pressure Tank with Agitator

Some fluids contain fillers, pigments, or particles that can settle while stored.

For these materials, a Precision Dispensing Pressure Tank with Agitator can help maintain a more uniform mixture throughout production.

Available configurations may include:

• Pneumatic agitator
• Electric agitator
• Adjustable mixing speed
• Customized mixing shaft
• Customized mixing blade

Agitation may be useful for filled adhesives, coatings, thermal materials, and suspensions.

For stable homogeneous liquids, a standard tank without an agitator can provide a simpler solution.

Custom Precision Dispensing Pressure Tank Solutions

Every dispensing machine has different installation and fluid connection requirements. Therefore, pressure tank customization can improve system integration.

A professional Precision Dispensing Pressure Tank Manufacturer can customize:

• Tank capacity
• Tank diameter and height
• Fluid outlet size
• Port position
• Connection thread
• Number of fluid outlets
• Pressure regulator configuration
• Pressure gauge
• Safety valve
• Agitator system
• Mounting brackets
• Tank lid structure
• OEM branding

Customers should provide fluid type, viscosity, required capacity, working pressure, outlet specifications, dispensing equipment, and available installation dimensions before ordering.

Why Choose Yakoo Precision Dispensing Pressure Tanks?

Yakoo provides stainless steel pressure tanks for industrial adhesive and fluid dispensing applications.

Our Precision Dispensing Pressure Tanks are available in multiple capacities and can be customized for manual, semi-automatic, and fully automatic dispensing equipment.

According to application requirements, Yakoo can customize tank dimensions, fluid connections, pressure control components, material outlets, agitation systems, and OEM configurations.

Whether the application involves precision glue dispensing, coating, sealing, lubrication, or other controlled fluid processes, the tank configuration can be matched to the material and production equipment.

Conclusion

A Precision Dispensing Pressure Tank is an important component of a stable industrial fluid delivery system. By providing controlled and continuous material feeding, it helps downstream dispensing equipment maintain more consistent operating conditions while reducing frequent refilling and supporting automated production.

When selecting a pressure tank, buyers should consider material viscosity, required flow rate, tank capacity, working pressure, outlet size, hose configuration, material compatibility, and agitation requirements.

For manufacturers looking for a Stainless Steel Precision Dispensing Pressure Tank, Precision Fluid Dispensing Tank, or customized pressure feeding solution, Yakoo provides flexible tank configurations for a wide range of industrial precision dispensing applications.
